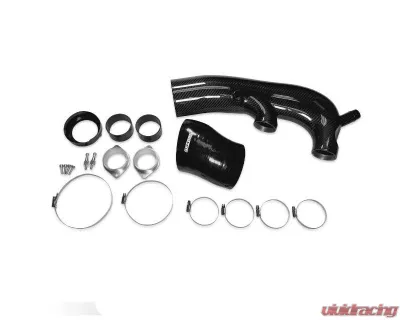

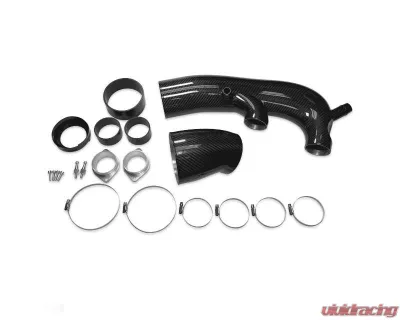

The 034Motorsport SuperDuper Turbo Inlet Upgrade Kits are designed to be utilized with existing X34 or P34 Intake Systems for the EA839 2.9T powered Audi RS4/RS5 when looking to upgrade to the SuperDuper Turbo Inlet. These kits are an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract when running stock turbochargers and Stage 3 Hybrid Turbocharger options. The 034Motorsport SuperDuper Turbo Inlet Pipe is designed to maximize performance for Dynamic+ Stage 3 Hybrid Turbo Tuning Software.

Utilizing years of experience with advanced CFD modeling, rapid prototyping, and real-world testing, the SuperDuper Turbo Inlet Upgrade was refined in every aspect to set the benchmark of EA839 2.9TT aftermarket intake systems - offering restrictionless flow regardless of whether your RS4 or RS5 is equipped with stock or hybrid turbochargers. The resulting SuperDuper Turbo Inlet Upgrade offers discerning enthusiasts, unlocking flow for power increases on Dynamic+ Tuning over the factory intake system, sporty induction and turbocharger sounds, and a carbon fiber or plastic shroud?all while utilizing the highest-flowing turbo inlet on the market.

Conversion Kits
The SuperDuper Turbo Inlet Pipe Conversion Kits are designed to work with existing owners of the 034Motorsport X34 & P34 Intakes for B9/B9.5 RS4/RS5 intakes to convert them from the stock inlet to the massive Carbon Fiber SuperDuper Turbo Inlet Pipe. The massive SuperDuper Turbo Inlet Pipe requires these larger intake components to maximize the airflow of your existing 034Motorsport Intake Systems. The X34 Carbon Fiber Intake System or P34 Cold Air Intake System are required to utilize these Turbo Inlet Upgrade Kits.

Why are the Factory Intake & Turbo Inlet Insufficient:
An upgraded intake system is critical when looking to optimize the performance of your twin-turbocharged Audi B9/B9.5 RS4 or RS5. The factory intake system consists of a restrictive paper filter housed in a small, enclosed airbox that requires frequent replacement. This airbox is then connected with a corrugated plastic hose to the insufficiently sized turbo inlet, causing turbulence and further restriction as air travels through the factory intake system.

The factory turbo inlet has a peak internal diameter of 66mm at the opening, which is quickly split in half and divided between the two turbochargers evenly. Because of this design, the cross-sectional area for airflow through the factory turbo inlet is reduced, resulting in inadequate airflow and lower velocity as air enters the turbochargers. This design was likely engineered this way for cost-savings to keep manufacturing costs lower.

What Does All This Restriction Mean for Performance?
When your turbochargers generate boost under acceleration, they need ample airflow to meet the target boost level commanded by the ECU?regardless of the intake or turbochargers installed. If a restrictive intake, such as the factory system, is installed, it can cause airflow deficiencies that force the ECU must compensate to maintain the target turbocharger boost levels. This is typically achieved by increasing the Wastegate Duty Cycle (WGDC), which puts additional demand on the turbochargers to reach those target boost levels. Much like sucking air in through a straw, you will find it easier to suck in more air through a larger straw as opposed to a smaller, more restrictive straw. Similarly, the turbochargers must work extra hard to make up for this lack of airflow.

As the turbochargers work harder, they generate higher compressor and exhaust turbine temperatures, resulting in hotter turbochargers and intake temperatures.

These inefficiencies and restrictions that the turbochargers must overcome and compensate for due to an insufficient intake system can reduce your engine's power output and generate increased heat, whether your RS4 or RS5 is stock, tuned, or utilizes upgraded hybrid turbochargers.

The X34 & P34 Intake Systems & Maximizing Air Flow With the SuperDuper Turbo Inlet:
X34 & P34 Airboxes:
034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others.

034Motorsport engineers conducted extensive tests and refined the development of the X34 & P34 Intake Airbox design to enable maximum airflow around the air filter, ensuring optimal airflow to and through the filter. The final result is the X34 and P34 Intake Airboxes, which offers optimal fitment within the RS4 & RS5 engine bay, allowing for maximum airflow and performance while perfectly balancing styling; the ultimate goal of any intake system.

Upper Heat Shield
Performance Air Filter & Adapter:
The X34 and P34 Intake Systems & SuperDuper Insuction Bundle houses a high-flow conical 5" Air Filter with a double-layer pleated cotton filtration medium capable of trapping particles as small as 5 Microns. This air filter design offers increased flow through an enlarged filtration surface while ensuring superior filtration. Tested in applications exceeding 1000HP, this filter delivers minimal restriction and OEM-quality air filtration. With over 2,000 CFM of airflow capacity, this air filter ensures unrestricted performance for RS4s and RS5s equipped with the X34 & P34 Intake Systems & SuperDuper Turbo Inlet. This air filter is also able to be washed and cleaned utilizing the 034Motorsport Air Filter Cleaning Kit, allowing for lower maintenance costs compared to the factory intake system.

The air filter is seamlessly connected to the factory or SuperDuper Turbo Inlet through a turbo inlet transition pipe, ensuring a smooth transition of airflow into the turbo inlet. This transition pipe is CFD-optimized to further increase the air velocity into the turbo inlet.

Air Filter
SuperDuper Carbon Fiber Turbo Inlet:
The SuperDuper Turbo Inlet offers the ultimate in performance and airflow improvements over the factory turbo inlet. 034Motorsport engineers designed several prototypes, refining each iteration to maximize airflow and air velocity, increase volume, and refine fitment. Starting with a high-definition 3D scan of the engine bay & factory intake system, 034Motorsport engineers begin designing by designing and optimizing the X34/P34 Intake Systems for precision engineering of fit. Once the intake has taken its basic shape, advanced CFD (Computational Fluid Dynamics) analysis is utilized to refine the airflow and air velocity of the SuperDuper Turbo Inlet for peak performance. Using rapid prototyping techniques such as 3D printing, 034Motorsport then verified these improvements and further optimized the design with on-car fitment and airflow performance validation with our in-house SuperFlow Test Bench. The resulting SuperDuper Turbo Inlet offers restrictionless flow to the turbochargers and maximized air velocity while offering perfect fit and finish within the engine bay of the RS4 and RS5.

Using CAD software and 3D scanning technology, 034Motorsport optimized the Turbo Inlet's cross-sectional area while being mindful of space constraints. The SuperDuper Turbo Inlet utilizes a massive 100mm internal diameter opening that tapers smoothly to the equally impressive 58mm turbo connections, ensuring optimal airflow to the turbochargers.

Utilizing this CFD modeling and advanced on-vehicle testing with external sensors, 034Motorsport engineers also maximized the efficiency of the PCV connection, ensuring that maximum vacuum is retained for adequate crankcase ventilation. Improper placement of this connection can worsen PCV performance, causing unnecessary pressure imbalance and compromising the operation of the crankcase ventilation system.

Due to the immense size of the Turbo Inlet, 034Motorsport Engineers designed taller 6061-T6 billet aluminum engine cover mounts. These mounts ensure secure fitment of the engine cover without interference, maintaining both performance and a clean, factory-like appearance. 034Motorsport also includes a new oil cap filler surround to ensure a clean and OEM fit with the taller engine cover mounts.

Intake Flow

Intake Flow
Turbo Adapter Flanges:
The SuperDuper Turbo Inlet Pipe is mated to 6061-T6 billet aluminum Turbo Adapter Flanges utilizing 4-ply silicone hose. These Turbo Adapter Flanges are specifically designed for each unique turbocharger set to generate a smooth transition of airflow into the turbocharger and enhance airflow velocity. The interchangeable Turbo Adapter Flanges for the stock turbochargers are included with the both X34 & P34 SuperDuper Turbo Inlet Upgrade Kits, with optional TTE720 Adapter Flanges available separately.

The adapter flanges make the installation and removal of the SuperDuper Turbo Inlet easier than ever. From the factory, unique and special tools are required to loosen and remove the OE turbo inlet due to the tight space constraints. With these Turbo Adapter Flanges, users can more easily remove the entire intake system with easily accessible hose clamps. You can loosen two hose clamps rather than fight with hidden bolts underneath the intake system!

CFM Gains:
CFM stands for "cubic feet per minute" of airflow, the higher the number, the higher the horsepower an intake can support, at 034Motorsport we design our intakes to have substantial flow increases over the factory intake, we test all our intakes at 28" of water (how much vacuum is used to suck air through the intake) on a Superflow airflow bench which gives us very accurate and repeatable test results. A stock intake that flows 200CFM may only freely support about 300HP. An intake that flows 400CFM can support roughly twice that power or 600HP. With the measured flow from the X34 or P34 Intake Systems combined with the SuperDuper Turbo Inlet Pipe, we find that the system is more than capable of supporting well over 1000hp of restrictionless flow.

Stock Intake & Turbo Inlet Assembly: 526 CFM @ 28in H2O
P34 + SuperDuper Inlet w/ Stock Turbo Adapter Flange: 779 CFM @ 28in H2O, 48% Increase
X34 + SuperDuper Inlet w/ Stock Turbo Adapter Flange: 783 CFM @ 28in H2O, 49% Increase
P34 + SuperDuper Inlet w/ TTE720 Adapter Flange: 905 CFM @ 28in H2O, 72% Increase
X34 + SuperDuper Inlet w/ TTE720 Adapter Flange: 908 CFM @ 28in H2O, 73% Increase

Emissions Disclaimer:
This product is sold for racing use as well as use on vehicles not registered for on highway use.
By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.



Features:

• SuperDuper Carbon Fiber Turbo Inlet Features:
  • CNC Machined 6061-T6 Aluminum Compressor Inlet Flange Adapters for Smooth Airflow Into Compressor Housings
  • CNC Machined 6061-T6 Aluminum Turbo Inlet Adapters to Match Turbo Inlet for Maximum Airflow
  • Optional Adapter Flanges Available
  • Retains OE PCV Hose Connections
  • Proven Power/Torque, and Airflow Gains
  • Longer Engine Cover Studs to Help Clear the S?perD?per Inlet
  • Deeper Oil Filler Seal to Accommodate Raised Engine Cover
  • Direct Bolt-on Installation.

Fitments:

• Audi RS4 B9/B9.5 2.9 TFSI 2018+
• Audi RS5 B9/B9.5 2.9 TFSI 2018+

Note:

• Orders placed today will hold your spot in line for when this product will ship, ETA Mid-Late December
