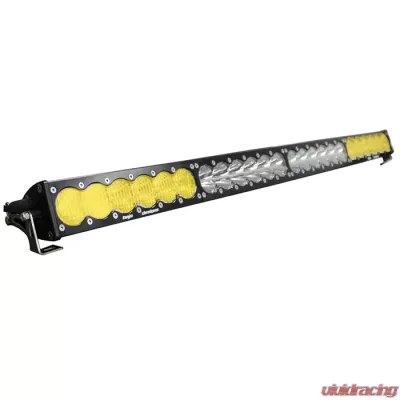

Baja Designs 40 Inch Amber/White Dual Control Pattern OnX6 Series LED Light Bar
$1493.95
Free Shipping
CLEARANCE ITEM. Sold As Is. No Returns or Exchanges Allowed.

Illuminate Your Path with the Baja Designs 40 Inch Amber/White Dual Control OnX6 Series LED Light Bar

Looking for a powerful lighting solution that gives you the flexibility to adapt to any situation? The Baja Designs 40 Inch Amber/White Dual Control OnX6 Series LED Light Bar is your go-to choice! With its innovative dual control feature, you can easily manage the inner and outer sections of the light bar separately, providing you with both amber and white light options. This makes it perfect for various driving conditions, whether you're navigating through foggy weather or lighting up the night on a trail.

Key Features

  • Dual Control Pattern: Control inner and outer lights independently for maximum versatility.
  • 30-Day Satisfaction Guarantee: Enjoy peace of mind with our money-back guarantee.
  • Limited Lifetime Warranty: Complete purchase protection for your investment.
  • uService: Replaceable lenses and optics for easy maintenance.
  • ClearView Technology: Get all the light exactly where you need it.
  • MoistureBlock: Waterproof, rainproof, and submersible for all weather conditions.
  • CopperDrive: LEDs driven at 100% for maximum output.
  • 5000K Daylight: Reduces driver fatigue with a natural color temperature.

Specifications

  • Lumens: 29,400 utilizing 24 Cree LEDs
  • Wattage/Amps: 234W / 20A
  • Dimensions: 40 x 4.29 x 2.69 inches
  • Weight: 15.05 lbs
  • LED Life Expectancy: 49,930 hours
  • Front Lens: Hard coated polycarbonate
  • Housing: Aircraft grade aluminum with Mil-Spec hard anodize
  • Bezel: Billet machined aluminum
  • Hardware and Bracket Material: Stainless steel
  • Exceeds MIL-STD810G: Tested for military specifications
  • Built-In Overvoltage Protection: Added safety for your lighting system
  • IP69K: Waterproof up to 9ft and pressure washable
  • IK10 Compliant: Mechanical impact tested for durability

Fitment

This light bar is designed to fit a variety of vehicles, providing an excellent upgrade for trucks, SUVs, and off-road vehicles. Whether you're hitting the trails or just need extra visibility on the road, the Baja Designs OnX6 is a perfect fit.

What's Included

  • OnX6 40 inch LED Light Bar Dual Control
  • Mounting Brackets

Frequently Asked Questions (FAQs)

1. What is the difference between amber and white light?

Amber light is great for fog and adverse weather conditions as it penetrates better through rain and fog, while white light provides a clearer view in normal conditions.

2. Can I install this light bar myself?

Yes! The light bar comes with mounting brackets and is designed for easy installation. However, if you're unsure, consulting a professional is always a good idea.

3. How long does the LED last?

The LEDs have a life expectancy of approximately 49,930 hours, so you can count on long-lasting performance.

4. Is the light bar waterproof?

Absolutely! With an IP69K rating, this light bar is waterproof up to 9 feet and can even withstand pressure washing.

Customer Reviews

Customers rave about the Baja Designs OnX6 light bar, praising its powerful output and versatility. Many have noted how easy it is to switch between amber and white light, making it a favorite for off-road adventures and everyday driving. Users also appreciate the robust construction and the peace of mind that comes with the warranty.

Upgrade your vehicle's lighting with the Baja Designs 40 Inch Amber/White Dual Control OnX6 Series LED Light Bar and experience the difference it makes on the road!

Shipment Notes:

  • All Baja Design products require a minimmum 1 week assembly time before shipment.

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

BedSlide Banner

Baja Designs

Baja Designs has been a leader in the off-road lighting industry for over 25 years. Today’s aftermarket is dominated by forward project LED light bars, which was initially developed by Baja Designs and used in the 2005 Baja 1000. They specialize in LED light bars, LED auxiliary lights, laser light bars, ATV and UTV lighting, and more. They refer to their team of engineering as “The Scientists of Lighting” thanks to their ability to push the industry forward and create new products. One of their latest innovations includes laser lights, offering unparalleled lighting distance compared to any other LED light bar on the market. Their products are 100% designed to be brighter, bolder, and better than any other lighting solution available.

Why Choose Baja Designs?

There are tons of different lighting companies on the market, why should you choose Baja Designs? There are a few reasons why you should choose a Baja Designs light bar, but they all relate to build quality, performance, and design.

Build Quality

What good is an off-road light if it can’t withstand the abuse of off-roading? Baja Designs lights are the toughest on the market, with an IP69k water/dust proof rating and MIL-STD-810G compliance. Baja Designs developed technology like their MoistureBlock power cord, which further improves water proofing even if you cut the plug off the end of the cord! Even if you can somehow break your Baja Designs light, they’ll back it up with their lifetime warranty.

Performance

Performance is one of the key factors when deciding what LED light bar you want to buy. Thanks to the insane amount of research and development on Baja Designs’ part, they’re able to offer the brightest lights on the market. They specifically use 5000k LEDs and invited technology such as CopperDrive which allows them to drive their LEDs at 100% without overheating. Further improving their performance is Baja Designs’ proprietary ClearView optics.

Design

Once you add in lights, a sound system, and other accessories on your vehicle, your charging system may have a hard time keeping up with the demand. For this reason, Baja Designs created their new Battery Management Tech which allows the light bar to throttle its output if it detects a drop in below 13.5V in your vehicle's charging system. Baja Designs specifically uses replaceable lenses and optics to make it easy to fix your LED light bar if the need arises.

The Purpose of Amber Lighting

Baja Designs amber led light bars

When you’re out ripping around the desert, it can quickly become difficult to see if you’re following someone else or the conditions are dusty. The problem with standard LED light bars, is the light will just reflect off the dust particles and end up making it harder to see. This effect can be especially frustrating if you’re racing, as you’ll be driving blind. The purpose of an LED light bar is to cut through the dust and illuminate the trail. Amber light cuts through dust, snow, and fog better than white light because of orange light reflects off those objects compared to white light. The easier it is to see in low visibility conditions, the faster and safer you can drive!

Understanding Lighting Patterns

As you may have figured out by now, there are tons of different lighting patterns associated with LED light bars. The two most common beam patterns include flood and spot. Each beam pattern has a specific use, and neither one is better for general use. To put it simply, flood lights use a very side and broad beam pattern. This allows more of the trail or road to be lit up in front of you, but the light won’t travel far. Spot beam light bars are much tighter and won’t illuminate the entire trail, but the light is projected much further, allowing you to see much farther down the trail. For general trail riding, either one will work fine. If you plan on pre-running or racing, then a spot beam light bar will be a much better option. If you end up driving faster than you can see, it won’t be long until a bad situation arises. For those who need to see as far as possible, Baja Designs developed their Laser lights which offer unmatched lighting distance.
