IE Valve Spring & Retainer Kit - IEVTWD1

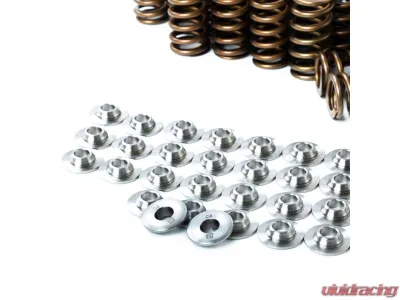

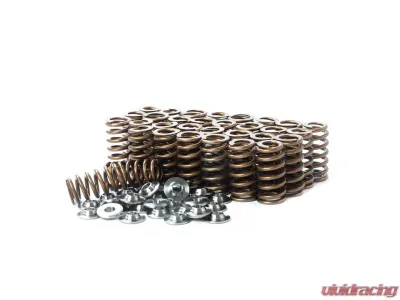

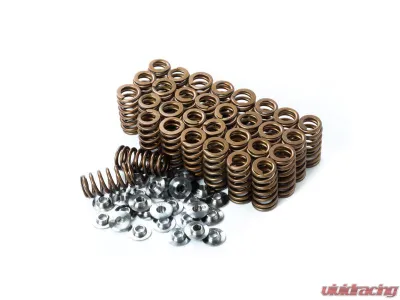

IE Valve Spring & Retainer Kit - IEVTWD1 - Image 3 IE Valve Spring & Retainer Kit - IEVTWD1 - Image 2 IE Valve Spring & Retainer Kit - IEVTWD1 - Image 3
The IE Performance Valve Spring & Titanium Retainer kit features optimized spring rates specifically designed for your Audi 4.0TT EA824 engine (C7/C7.5 S6, S7, RS7, & D4 S8). Engineered with exacting specifications to provide proper valve control preventing valve float in high-power and high-revving applications.

Increasing your engine's power output often comes with modifications that require more RPMs to get the most out of it, such as larger turbochargers and race builds. Upgrading those components without changing the valve springs can leave you with a short power band or cause valve float and other significant damage.

Unlike other inexpensive valve spring kits that adopt a one-size-fits-all approach, we take a completely different strategy. Our springs have been meticulously designed for precise valve control by experts who understand the unique valvetrain in the Audi C7 4.0TT cylinder heads. Be confident that you have the perfect match for your engine's needs, ensuring optimum valvetrain performance and durability.

Crafted from the finest spring wire in the world, our IE valve springs boast unmatched strength thanks to a patented multi-stage nano peening process that significantly increases fatigue strength, minimizes failure rates, and reduces wear. The precision-engineered titanium retainers feature an impeccable surface finish and stringent tolerance control, guaranteeing an extended lifespan.

What's Included:
  • 32 PRECISION WOUND INTAKE/EXHAUST VALVE SPRINGS
  • 16 EXACT TOLERANCE TITANIUM INTAKE RETAINERS
  • 16 EXACT TOLERANCE TITANIUM EXHAUST RETAINERS


Features:
  • Protects against engine failure from valve float
  • Safely increase your rev limit and power band
  • Specialty nano-peened springs for increased fatigue strength
  • In-house CNC machined titanium retainers
  • Highest quality spring material available in the world
  • Torture tested in-house for high-power reliability


Specifications:
  • Seat Pressure: 90lbs
  • Open Pressure: 220lbs
  • Spring Tension (Rate): 275lbs


Fitment:
  • Audi C7/C7.5 S6 & S7 2012-2018
  • Audi C7/C7.5 RS7 2014-2018
  • Audi D4 S8 2013-2018
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Integrated Engineering Banner

Who is Integrated Engineering?

Integrated Engineering was founded in 2007 in Salt Lake City, Utah. It was started by two brothers Peter and David Blais. The two shared the same passion for racing, and this has jumpstarted the two to create Integrated Engineering.

The company specializes in manufacturing performance products such as rods, camshafts, valve trains, and Billett accessories. Today, they have become a household name when it comes to performance.

German Car Experts

Integrated Engineering focuses on producing performance products for Audi and VWs. As the experts in these platforms, they are able to pinpoint exactly what parts need to be improved to bring out the best in those vehicles. The company considers not only the performance gain but its reliability as well. Their goal is to turn these vehicles into a better performing machine without compromising its reliability.

Attention to Detail is the Key

To create top quality products, the company carefully studies each design detail using specialized software. This enables them to fine-tune the design before it goes to actual manufacturing. They first test their design in ABS plastic to ensure that all measurements are accurate and on the spot. Once everything has been checked, their performance products are then tested in their in-house engine and chassis dyno machine for long hours to test its performance and reliability.

This attention to detail has enabled their parts to perform in extreme conditions and withstand the punishment usually endured during high-performance applications.

Purchase Integrated Engineering Products at Vivid Racing

If you want to improve the way your Audi or VW performs, then Integrated Engineering has got you covered. Their expertise in these platforms has made them the go-to brand when it comes to performance, and it has gained them the trust of many enthusiasts everywhere. Visit Vivid Racing and see their list of products that would fit your specific needs.
