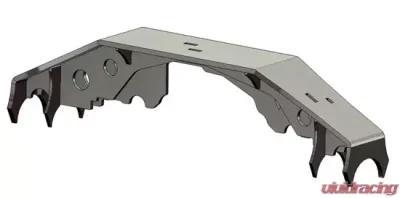

Artec Industries Sterling 10.25 Rear Modular Truss - TR1005
Artec Industries Sterling 10.25 Rear Modular Truss - TR1005 - Image 2 Artec Industries Sterling 10.25 Rear Modular Truss - TR1005 - Image 2

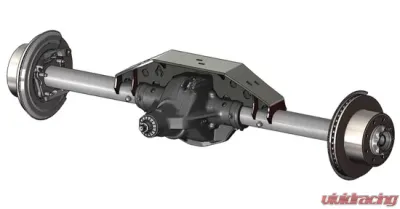

Perfect for that one-ton swap in the back of your TJ or YJ, the Sterling Modular Axle Truss is the most versatile truss available for the popular Superduty rear axle. This heavy duty truss system is designed to take serious abuse and reinforce your axle while also providing a flat surface to mount your upper links. The 3/8 inch thick truss top and 1/4 inch thick gussets incorporates a unique design to strengthen both the axle and the link mounting surface.

This truss is available by itself, but you can add-on our leaf spring perches designed for use with a YJ Wrangler or coil spring perches designed for rear TJ Wrangler coil springs. Regardless of your choice, we offer our new high clearance shock mounts. These place the lower shock mounts either in front or behind the axle in the lowest mounting position possible without giving up ground clearance. These items are all available for purchase separately.

Features:
  • Sterling 10.25/10.5 Rear Modular Truss
  • Sold as kit
  • 3/8 inch thick mild steel truss top and 1/4 inch mild steel gussets. Precision CNC cut and bent for great fitment.
  • Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle center line.
  • This Modular truss is shorter to allow use with factory leaf spring perches or our add-on coil or leaf spring perches. This flexibility means that if you change from leaf spring to coil spring, you don't have to remove the whole truss, just the end brackets.
  • Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly.
  • Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
Note:
  • Leaf spring option is for standard YJ width but is for spring over axle (SOA), Not spring under (SUA). The kit does Not include u-bolts. Coil spring option is for stock Rear TJ coils (the wider ones) Not TJ front coils.
  • This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is Not liable for improper installation.
  • Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Artec Industries Banner

Who is Artec Industries?

Artec Industries is a company that was founded in 2003 in Tucson, Arizona, and is known as Artec Welding back then. The company started when the company's president Artie Nuttall bought a 1987 4Runner to join his wife's family offroad excursion.

As a talented welder himself, he started welding structural and decorative projects for various high-end commercial and residential projects. But his passion for offroading has never left him.

So in 2010, Artec Welding was rebranded as Artec Industries and started developing products for the automotive industry.

From Building Houses To Building Offroad Parts

The company used its experience in welding to create some of the best offroad parts available in the market today. They offer parts such as ultimate high steer arms, quart crates, but they are better known for their axle swap kits and axle trusses.

Continuous Company Growth

As more people patronize their products, there is a need for Artec to relocate to a bigger facility to accommodate their customers' growing demand. From a small garage, the company is now situated in a large facility in Salt Lake City, Utah, which is a strategic location that allows them to distribute their products more efficiently.

Purchase Artec Industries Products At Vivid Racing

If you are in the market for quality offroad parts, Artec Industries is the brand. Each part is carefully manufactured by the country's most talented craftsmen. It guarantees that you get the best product every time. To know more about Artec, visit Vivid Racing and check out their list of products that fit your specific need.
