Baja Designs F-150 Fog Pocket Kit SAE Clear/Sport DC F-150 2021-2022

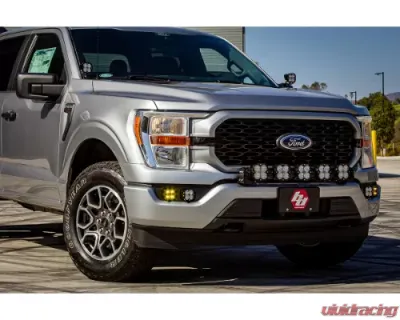

If you’re looking to enhance your 2021-2022 Ford F-150 with a top-notch lighting upgrade, the Baja Designs F-150 Fog Pocket Kit is just what you need. This kit features a combination of Squadron Clear SAE lights and Squadron Sports, designed to deliver exceptional visibility on and off the road.
Key Features
- Powerful Lighting: The kit includes two powerful light sets. The Squadron SAE lights produce 2,480 lumens, while the Squadron Sport lights shine at 3,150 lumens, ensuring you have the brightness you need for any driving condition.
- Durable Construction: Built to last, the lights feature a hard-coated polycarbonate front lens and a powder-coated cast aluminum housing. Plus, the billet machined aluminum bezels add an extra touch of durability.
- Weather Resistant: With an IP69K rating, these lights are waterproof and can be submerged up to 9 feet, making them perfect for any weather conditions.
- Easy Installation: The kit comes complete with powder-coated fog pocket brackets, stainless-steel hardware, and a stand-alone wiring harness for a hassle-free installation.
Specifications
Squadron SAE Specifications:
- Lumens: 2,480 (4 LEDs)
- Wattage/Amps: 22W / 1.6A
- Dimensions: 3.07" x 2.77" x 3.07"
- Weight: 12 ounces
- LED Life Expectancy: 49,930 hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Squadron Sport Specifications:
- Lumens: 3,150 (4 LEDs)
- Wattage/Amps: 26W / 2A
- Dimensions: 3.07" x 2.77" x 3.07"
- Weight: 12 ounces
- LED Life Expectancy: 49,930 hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

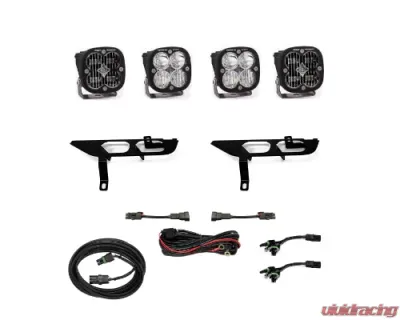

What’s Included in the Kit?
- Squadron Sport Driving/Combo Pair
- Squadron SAE Clear Wide Cornering Pair
- Fog Pocket Brackets (x2)
- Wire Adapters (x2)
- Toggle Switch Harness (x1)
- 55-inch Splitters (x2)
- Small Splitters (x2)
Lighting Patterns
The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42-degree) and spot (8-degree) optics, making it perfect for various driving conditions. The Wide Cornering pattern, specifically designed for cornering, dust, and fog, provides a 42-degree flattened horizontal beam for optimal comfort lighting.
Frequently Asked Questions
1. Will this kit fit my 2021 Ford F-150?
Yes, this kit is specifically designed for the 2021-2022 Ford F-150 models.
2. How difficult is the installation process?
The installation is straightforward, and the kit comes with all necessary hardware and wiring for a smooth setup.
3. Are these lights bright enough for off-road driving?
Absolutely! With a combined output of over 5,600 lumens, these lights provide excellent visibility for off-road adventures.
4. What if I encounter issues with the lights?
Baja Designs offers a 30-day money-back guarantee and a limited lifetime warranty for peace of mind.
Customer Reviews
Customers rave about the Baja Designs F-150 Fog Pocket Kit, highlighting its impressive brightness and durability. Many have noted how easy the installation process is, making it a favorite among DIY enthusiasts. Users appreciate the performance in adverse weather conditions, especially the wide cornering pattern that enhances visibility during foggy nights.
Shipment Notes:
- All Baja Design products require a minimmum 1 week assembly time before shipment.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Baja Designs has been a leader in the off-road lighting industry for over 25 years. Today’s aftermarket is dominated by forward project LED light bars, which was initially developed by Baja Designs and used in the 2005 Baja 1000. They specialize in LED light bars, LED auxiliary lights, laser light bars, ATV and UTV lighting, and more. They refer to their team of engineering as “The Scientists of Lighting” thanks to their ability to push the industry forward and create new products. One of their latest innovations includes laser lights, offering unparalleled lighting distance compared to any other LED light bar on the market. Their products are 100% designed to be brighter, bolder, and better than any other lighting solution available.
Why Choose Baja Designs?There are tons of different lighting companies on the market, why should you choose Baja Designs? There are a few reasons why you should choose a Baja Designs light bar, but they all relate to build quality, performance, and design.
Build QualityWhat good is an off-road light if it can’t withstand the abuse of off-roading? Baja Designs lights are the toughest on the market, with an IP69k water/dust proof rating and MIL-STD-810G compliance. Baja Designs developed technology like their MoistureBlock power cord, which further improves water proofing even if you cut the plug off the end of the cord! Even if you can somehow break your Baja Designs light, they’ll back it up with their lifetime warranty.
PerformancePerformance is one of the key factors when deciding what LED light bar you want to buy. Thanks to the insane amount of research and development on Baja Designs’ part, they’re able to offer the brightest lights on the market. They specifically use 5000k LEDs and invited technology such as CopperDrive which allows them to drive their LEDs at 100% without overheating. Further improving their performance is Baja Designs’ proprietary ClearView optics.
DesignOnce you add in lights, a sound system, and other accessories on your vehicle, your charging system may have a hard time keeping up with the demand. For this reason, Baja Designs created their new Battery Management Tech which allows the light bar to throttle its output if it detects a drop in below 13.5V in your vehicle's charging system. Baja Designs specifically uses replaceable lenses and optics to make it easy to fix your LED light bar if the need arises.
The Purpose of Amber LightingWhen you’re out ripping around the desert, it can quickly become difficult to see if you’re following someone else or the conditions are dusty. The problem with standard LED light bars, is the light will just reflect off the dust particles and end up making it harder to see. This effect can be especially frustrating if you’re racing, as you’ll be driving blind. The purpose of an LED light bar is to cut through the dust and illuminate the trail. Amber light cuts through dust, snow, and fog better than white light because of orange light reflects off those objects compared to white light. The easier it is to see in low visibility conditions, the faster and safer you can drive!
Understanding Lighting PatternsAs you may have figured out by now, there are tons of different lighting patterns associated with LED light bars. The two most common beam patterns include flood and spot. Each beam pattern has a specific use, and neither one is better for general use. To put it simply, flood lights use a very side and broad beam pattern. This allows more of the trail or road to be lit up in front of you, but the light won’t travel far. Spot beam light bars are much tighter and won’t illuminate the entire trail, but the light is projected much further, allowing you to see much farther down the trail. For general trail riding, either one will work fine. If you plan on pre-running or racing, then a spot beam light bar will be a much better option. If you end up driving faster than you can see, it won’t be long until a bad situation arises. For those who need to see as far as possible, Baja Designs developed their Laser lights which offer unmatched lighting distance.
