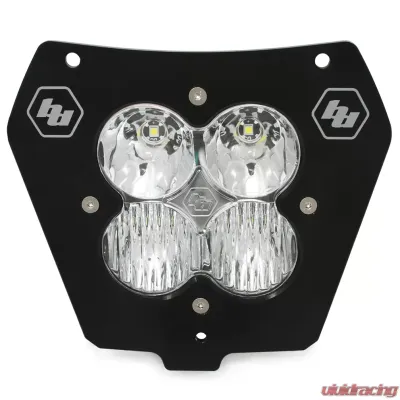

Baja Designs LED XL Sport DC Headlight Kit for KTM 2014+
If you're on the hunt for a headlight that combines eye-catching design with outstanding performance, the Baja Designs LED XL Sport DC Headlight Kit is just what you need. Specifically designed for KTM models from 2014 onwards, this headlight kit delivers an impressive 2,260 lumens while consuming only 20 watts. This means you can enjoy longer rides without worrying about draining your battery.
Why Choose the XL Sport Headlight Kit?
- 30-Day Satisfaction Guarantee: Try it out risk-free! If you’re not happy, return it within 30 days.
- Limited Lifetime Warranty: Enjoy peace of mind with complete purchase protection.
- uService: Replaceable lenses and optics for easy maintenance.
- ClearView Technology: Experience all the light exactly where you need it.
- MoistureBlock: Waterproof, rainproof, and submersible for all weather conditions.
- CopperDrive: LEDs driven at 100% for maximum output.
- 5000K Daylight: Reduces driver fatigue with a natural color temperature.
Specifications
- Lumens: 2,260 (using 4 LEDs)
- Wattage/Amps: 20W / 1.4A
- Dimensions: 4.43 x 3.65 x 4.43 inches
- Weight: 1.85 lbs
- LED Life Expectancy: 49,930 hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G: Military Specification Testing
- Built-In Overvoltage Protection: Safeguards your investment
- IP69K Rated: Waterproof up to 9 feet and pressure washable
- IK10 Compliant: Mechanical impact tested for durability
Fitment Information
This headlight kit is designed for KTM models from 2014 and onwards. For older EXC models manufactured between 2007-2011 that are carbureted, you'll need to purchase the 61-1040 DC conversion kit for a plug-and-play installation.
If you have an electric-start bike, please note that some models may require a stator modification or rewind. In such cases, you will need to purchase a switch and wiring harness kit. If a new rectifier/regulator is necessary, be sure to order part 12-2004. Detailed instructions for any required modifications are included in the kit.
Frequently Asked Questions (FAQs)
What is the lumen output of the Baja Designs LED XL Sport Headlight?
The headlight produces an impressive 2,260 lumens, providing excellent visibility on your rides.
Is the installation process complicated?
Not at all! The kit is designed for easy installation, especially for KTM models from 2014 onwards. For older models, a conversion kit may be required.
Do I need any additional parts for electric-start bikes?
Yes, some electric-start bikes require a stator modification or an additional rectifier/regulator. Please check your bike's specifications before purchasing.
What if I'm not satisfied with the product?
You can take advantage of the 30-Day Satisfaction Guarantee. If you're not happy, simply return it within 30 days.
Customer Reviews
Customers rave about the Baja Designs LED XL Sport Headlight Kit, highlighting its bright output and durability. Many users appreciate the easy installation process and the fact that it enhances visibility during nighttime rides. The warranty and satisfaction guarantee also provide extra peace of mind for buyers.
Upgrade your KTM's lighting with the Baja Designs LED XL Sport DC Headlight Kit and experience the difference on your next adventure!
Shipment Notes:
- All Baja Design products require a minimmum 1 week assembly time before shipment.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Baja Designs has been a leader in the off-road lighting industry for over 25 years. Today’s aftermarket is dominated by forward project LED light bars, which was initially developed by Baja Designs and used in the 2005 Baja 1000. They specialize in LED light bars, LED auxiliary lights, laser light bars, ATV and UTV lighting, and more. They refer to their team of engineering as “The Scientists of Lighting” thanks to their ability to push the industry forward and create new products. One of their latest innovations includes laser lights, offering unparalleled lighting distance compared to any other LED light bar on the market. Their products are 100% designed to be brighter, bolder, and better than any other lighting solution available.
Why Choose Baja Designs?There are tons of different lighting companies on the market, why should you choose Baja Designs? There are a few reasons why you should choose a Baja Designs light bar, but they all relate to build quality, performance, and design.
Build QualityWhat good is an off-road light if it can’t withstand the abuse of off-roading? Baja Designs lights are the toughest on the market, with an IP69k water/dust proof rating and MIL-STD-810G compliance. Baja Designs developed technology like their MoistureBlock power cord, which further improves water proofing even if you cut the plug off the end of the cord! Even if you can somehow break your Baja Designs light, they’ll back it up with their lifetime warranty.
PerformancePerformance is one of the key factors when deciding what LED light bar you want to buy. Thanks to the insane amount of research and development on Baja Designs’ part, they’re able to offer the brightest lights on the market. They specifically use 5000k LEDs and invited technology such as CopperDrive which allows them to drive their LEDs at 100% without overheating. Further improving their performance is Baja Designs’ proprietary ClearView optics.
DesignOnce you add in lights, a sound system, and other accessories on your vehicle, your charging system may have a hard time keeping up with the demand. For this reason, Baja Designs created their new Battery Management Tech which allows the light bar to throttle its output if it detects a drop in below 13.5V in your vehicle's charging system. Baja Designs specifically uses replaceable lenses and optics to make it easy to fix your LED light bar if the need arises.
The Purpose of Amber LightingWhen you’re out ripping around the desert, it can quickly become difficult to see if you’re following someone else or the conditions are dusty. The problem with standard LED light bars, is the light will just reflect off the dust particles and end up making it harder to see. This effect can be especially frustrating if you’re racing, as you’ll be driving blind. The purpose of an LED light bar is to cut through the dust and illuminate the trail. Amber light cuts through dust, snow, and fog better than white light because of orange light reflects off those objects compared to white light. The easier it is to see in low visibility conditions, the faster and safer you can drive!
Understanding Lighting PatternsAs you may have figured out by now, there are tons of different lighting patterns associated with LED light bars. The two most common beam patterns include flood and spot. Each beam pattern has a specific use, and neither one is better for general use. To put it simply, flood lights use a very side and broad beam pattern. This allows more of the trail or road to be lit up in front of you, but the light won’t travel far. Spot beam light bars are much tighter and won’t illuminate the entire trail, but the light is projected much further, allowing you to see much farther down the trail. For general trail riding, either one will work fine. If you plan on pre-running or racing, then a spot beam light bar will be a much better option. If you end up driving faster than you can see, it won’t be long until a bad situation arises. For those who need to see as far as possible, Baja Designs developed their Laser lights which offer unmatched lighting distance.
Lifetime: COMPLETE PURCHASE PROTECTION
- Warranties on our products vary by product and/or by industry, as listed below. All warranty returns require a Return Authorization form as described above.
- Warranties cover defects in design and manufacturing only. Warranties do not cover, among other things: installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by us or on our behalf. Also note the exceptions below for third-party products.
- Warranty periods start on the shipment date.
- For all warranty returns, we will pay the freight costs on the condition that you return the defective product within 90 days of delivery; otherwise, the product must be returned to us with freight prepaid by you. At our option and as the exclusive remedy, we will repair or replace the product in question, or issue credit. If an identical product is no longer available, we may replace with a similar product of comparable value.
- Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.
- Warranty Period: Limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.
- Pass-Through Warranty: We resell, and are not the manufacturer of, certain third-party products including those listed above. We make no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. We will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns. In all cases, unless otherwise agreed by the manufacturer, you must be the original owner with proof of purchase upon claim or proof of product registration.
- Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty.
