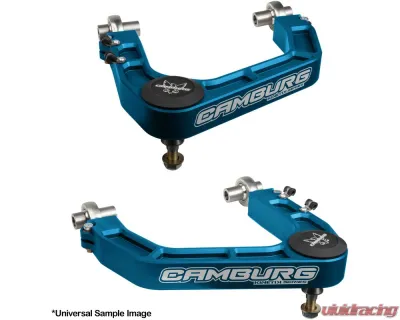

Camburg Engineering Blue Kinetik Series Suspension Control Arm Kit Ford F-150 2021-2024 - CAM-110211-BLU
Introducing the Camburg KINETIK Series billet upper control arms for 2021-2024 Ford F-150's. These arms are meticulously designed and crafted from aerospace quality 6061 billet aluminum, providing superior strength and durability. They feature a larger FK 1.25" uniball with a PTFE liner for increased strength and misalignment, allowing for maximum wheel travel. The uniball is securely adapted to the spindle/knuckle using model-specific spacers made from heat-treated stainless steel. The arms also utilize FK 7/8" chromoly heim joints for additional camber and caster adjustment, eliminating flexing and deflection under hard use. The arms come with AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut for secure installation. The new V2 design increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. These arms are compatible with 1-3" of lift and are not compatible with vehicles equipped with Continuously Controlled Damping (CCD) adaptive suspension or adaptive headlamps with a position sensor attached to the OEM upper control arm.

Hardware:
  • Camburg includes high-quality hardware for proper and secure installation, with specified original equipment hardware to be reused when necessary.
Installation:
  • Bolt-on installation. May require basic automotive knowledge for proper installation and professional installation is always recommended.
Installation Instructions



Features:
  • Enhanced Stability and Precision: These control arms are engineered to improve handling and steering response, offering a significant upgrade over standard components, particularly in maintaining proper wheel alignment.
  • Durable and Robust Construction: Made with premium materials, these control arms are designed to endure harsh driving conditions, providing reliability and reducing the need for frequent replacements.
  • Optimized for Off-Road Performance: The control arms are tailored for off-road use, enhancing the vehicle's ability to navigate tough terrains with increased suspension travel and strength.
  • Easy Installation and Compatibility: Designed for compatibility with various vehicle models, these control arms are made for easy installation, allowing for quick upgrades without extensive modifications.


Specifications:
  • Adjustable: Yes
  • Ball Joint Included: Yes
  • Bushing Material: 4130 Chromoly
  • Bushings Included: Yes
  • Control Arm Color: Blue
  • Control Arm Construction: CNC Machined
  • Control Arm Material: 6061-T6 Billet Aluminum
  • Grade Type: Performance
  • Mounting Hardware Included: Yes
  • Position: Upper
  • Aftermarket Coilovers Accepted: May be used with most aftermarket coilovers
  • May require spacers: 20 (in) OEM Wheels may Require Hub-Centric Spacers
  • Trimming Required: May Require Trimming to Eliminate Tire Rubbing
  • 27847: Compatible with Adaptive Headlights without Position Sensor
  • Compatibilty Check Req.: Not Compatible with Continuously Controlled Damping (CCD) Adaptive Suspension or Adaptive Headlights with Position Sensor


Fitment:
  • Ford F-150 King Ranch 2021-2024
  • Ford F-150 Lariat 2021-2024
  • Ford F-150 Platinum 2021-2024
  • Ford F-150 Police Responder 2021-2024
  • Ford F-150 SSV 2021-2024
  • Ford F-150 Tremor 2021-2024
  • Ford F-150 XL 2021-2024
  • Ford F-150 XLT 2021-2024
  • Ford F-150 Limited 2021-2023
Note:
  • Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
  • Does Not Fit Your Ford Raptor
