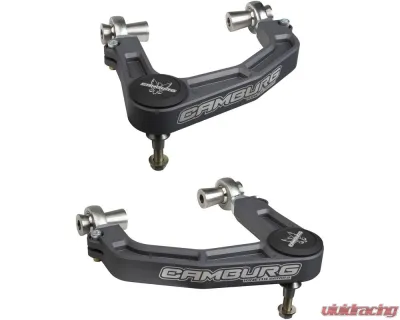

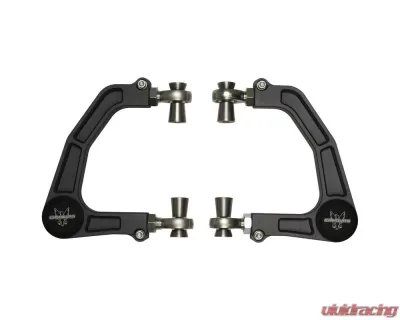

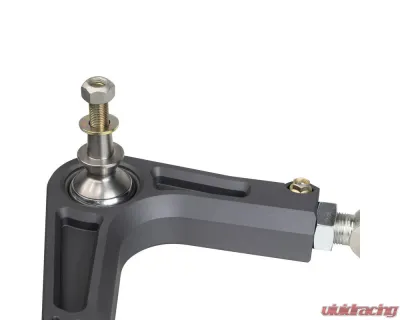

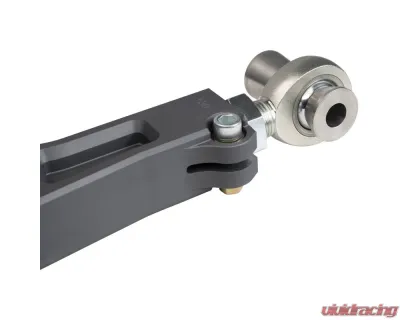

Countless hours were spent designing and refining these arms to the point where they met our high standards. CAD designing and machining gave us the ability to bring some new design elements and features to the table. We CNC machine these from aerospace quality 6061 billet aluminum, then send them out to be bead blasted, Type II anodized gun metal gray and have our Camburg logo laser etched. Like our tubular arms we use a larger FK 1.25'niball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25'niball gives us the ability to run a larger bolt with a low profile press-on uniball cap to resist the elements. Using larger and stronger FK 7/8'hromoly heim joints allows for additional camber and caster adjustment if needed. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use. These heims are considerably stronger than the smaller & cheaper versions many competitors use.
Hardware:
Features:
Specifications:
Fitment:
Hardware:

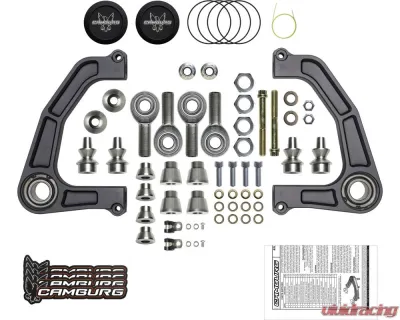

- Camburg includes high-quality hardware for proper and secure installation, with specified original equipment hardware to be reused when necessary.
- Bolt-on installation. May require basic automotive knowledge for proper installation and professional installation is always recommended.
Features:
- Enhanced Stability and Precision: These control arms are engineered to improve handling and steering response, offering a significant upgrade over standard components, particularly in maintaining proper wheel alignment.
- Durable and Robust Construction: Made with premium materials, these control arms are designed to endure harsh driving conditions, providing reliability and reducing the need for frequent replacements.
- Optimized for Off-Road Performance: The control arms are tailored for off-road use, enhancing the vehicle's ability to navigate tough terrains with increased suspension travel and strength.
- Easy Installation and Compatibility: Designed for compatibility with various vehicle models, these control arms are made for easy installation, allowing for quick upgrades without extensive modifications.
Specifications:
- Adjustable: Yes
- Ball Joint Included: Yes
- Bushing Material: 4130 Chromoly
- Bushings Included: Yes
- Control Arm Color: Gray
- Control Arm Construction: CNC Machined
- Control Arm Material: 6061-T6 Billet Aluminum
- Grade Type: Performance
- Mounting Hardware Included: Yes
- Position: Upper
- Aftermarket Coilovers Accepted: May be used with most aftermarket coilovers
- 10309: Used with 1 (in) to 3 (in) Lift
Fitment:
- Ford Ranger 2019-2023
- Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
