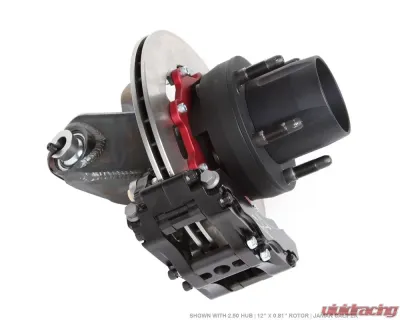

Camburg I-beam Race Spindle & 2.25 Front Hub Upgrade Kit Ford F-150 2wd 1987-1996 - CAM-110095
Camburg I-beam Race Spindle & 2.25 Front Hub Upgrade Kit Ford F-150 2wd 1987-1996 - CAM-110095 - Image 2 Camburg I-beam Race Spindle & 2.25 Front Hub Upgrade Kit Ford F-150 2wd 1987-1996 - CAM-110095 - Image 2

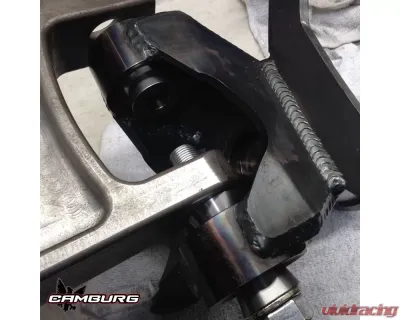

Available for 2wd 1987-1996 F-150's, these new race spindles replace the weak link in the front suspension, NO STOCK BALL JOINTS! We replace the upper and lower ball-joints with 1" FK uniballs with heat treated stainless steel spacers and 3/4" through bolts. Minor fabrication/machining to the i-beam end will be needed and we recommend double shearing the uniballs. These are designed for the standard 2wd beam end, not a 4wd Dana 44 beam conversion. We also build 1.5" of lift into these for better ground clearance. You will need to convert your steering to use a FK 7/8" JMX heim joint.

We can mix and match many different hub and brake combinations with this design to suit your needs and budget. Standard they come with our 2.25 hubs and 12" Wilwood rotors and superlite 4 piston calipers.

What's Included:
  • Fabricated spindles w/ 1.5" lift
  • Uniball spacers for 3/4" bolts
  • Heim spacers for 7/8" heims
  • Camburg 2.25 race hubs (5 on 5.5" bolt pattern)
  • Wilwood 12" x 1.25 vented rotors
  • Wilwood Superlite 4 piston calipers
  • Wilwood BP20 brake pads and hardware
Product features:
  • Fabricated spindles
  • 2.25 race hubs
  • Wilwood 12" x 1.25 rotors
  • Superlite 4 piston calipers
Fitment:
  • Ford F-150 2wd 1987-1996
Note:
  • You need wheels that are setup for 5/8" wheel studs and have a 4.25" center-bore.
