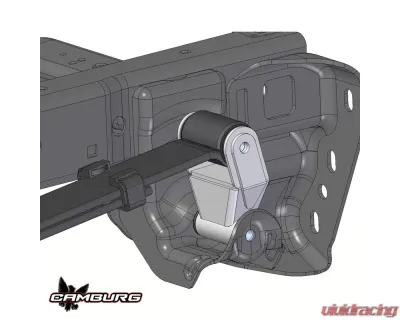

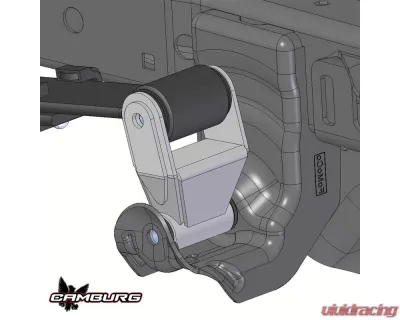

Looking for the best'ur Camburg TIG shackles replace the stock light-duty version your 17-20 Ford Raptor or F-150 15-20 is equipped with from the factory. The stock shackles are stamped out of thin metal and use a rubber bushing which both allow for a flexy component that also binds as it cycles since the rubber bushings are vulcanized into the shackle.

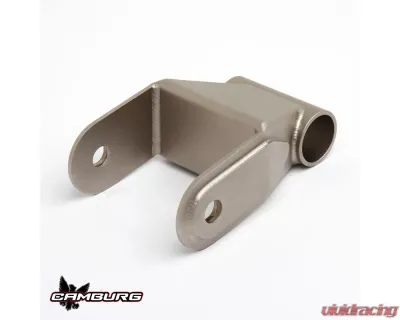

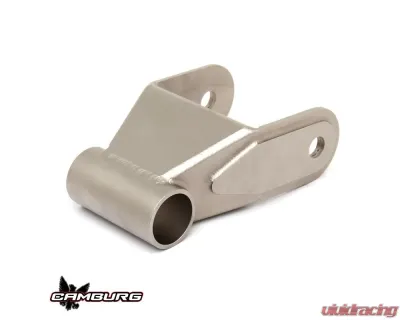

Our TIG shackles are a fabricated boxed gusseted design from 4130 chromoly that is much stronger than mild steel and use polyurethane bushings that pivot smoother with less flex. We TIG weld them, bead blast the surfaces then powdercoat them a textured gray to match our billet arms and the FOX shock hard anodize. They are ready to be bolted on using the factory hardware. These are available in a stock length, so they do not raise or lower the ride height or an 1.5" extended version that will lower the ride height about 1". Both are designed for stock and Deaver leaf springs, the "stock length" versions do not work with icon leaf springs.
What's included:
Our TIG shackles are a fabricated boxed gusseted design from 4130 chromoly that is much stronger than mild steel and use polyurethane bushings that pivot smoother with less flex. We TIG weld them, bead blast the surfaces then powdercoat them a textured gray to match our billet arms and the FOX shock hard anodize. They are ready to be bolted on using the factory hardware. These are available in a stock length, so they do not raise or lower the ride height or an 1.5" extended version that will lower the ride height about 1". Both are designed for stock and Deaver leaf springs, the "stock length" versions do not work with icon leaf springs.
What's included:

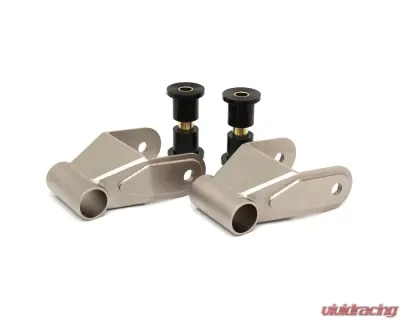

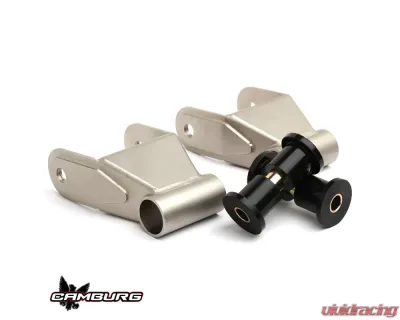

- 1 Pair of Shackles
- Poly Bushings & Sleeves
- Bushing Grease Packets
- CAD Designed, CNC Laser Cut & Formed
- 4130 Chromoly
- TIG Welded
- Powdercoated textured gray
- Polyurethane Bushings
- Made in the USA
- Ford Raptor 2017-2020
- Ford F-150 2015-2020
- The stock length shackles are 4.5" eye to eye and the extended are 6"
