  See all Suspension products
Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X
Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 7 Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 2 Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 3 Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 4 Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 5 Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 6 Camburg BJ UCA FOX 2.5 Performance Kit Lexus GX470 2003-2009 - CAM-310156-X - Image 7

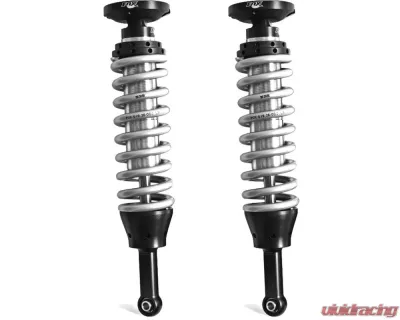

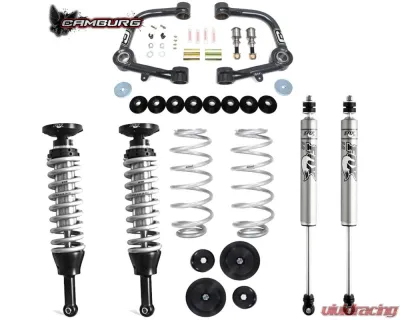

Our FOX 2.5 Performance kit is a great mid travel kit for your Lexus GX470 using FOX's 2.5 coilovers, 2.0 rear shocks with our Camburg upper arms and Eibach rear coil spring conversion. FOX 2.5 Factory Series IFP Coilovers are valved specifically for your application, we are able to gain 0-3 inches of lift and increase wheel travel as well. These Factory Series shocks feature a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, a 7/8? hard chrome plated heat treated alloy steel shaft and an internal reservoir design to separate shock oil from the high-pressure nitrogen. FOX direct replacement shocks deliver race-winning performance in a simple direct replacement bolt on shock. Each application has been rigorously tested by FOX engineers to maximize suspension travel and performance on and off the road. These 2.5 coilovers are designed to be used with our Camburg upper arms for maximum useable wheel travel and performance. After lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. Replacing the arms increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. You have the option of our X-joint, uniball or billet series arms. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. For more info on all our arms, check out their individual product pages to help make your choice. In the rear we convert to a coil spring which dramatically improves the ride and load capacity. The factory airbag suspension system is prone to failing and performing poorly off-road. The Eibach springs lift it 2? over stock with a pair of FOX's 2.0 Performance Series shocks.


Technical Details:
  • Replaces Factory Air Suspension
  • Raises Rear 2 (in)
  • Raises Front 0 (in) - 3 (in)


Specifications:
  • Bushing Color: Black
  • Bushings Included: Yes
  • Control Arm Type: Tubular
  • Front Shock Type: 2.5 Factory Series IFP Coilovers
  • Front Springs Included: Yes
  • Grade Type: Performance
  • Hardware Included: Yes
  • Joint Type: X-Joint
  • Maximum Lift: 3
  • Prop 65 Y/N: No
  • Rear Springs Included: Yes
  • Shock Brand: FOX
  • Rear Shock Type: 2.0 Performance Series
  • Shocks Included: Yes
  • Strut(s) Included: Yes
  • Hardware:

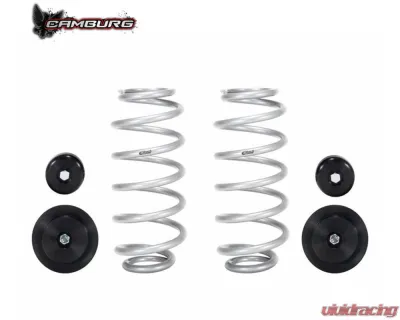

    • Camburg Lexus GX470 '03-09 Rear 2" Coil Spring Conversion Kit: 1

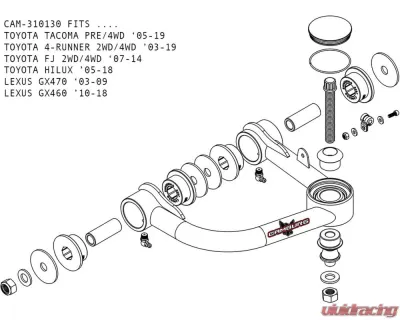

    • Camburg Toyota 4-Runner '03-24 | FJ '07-14 Performance X-Joint Upper Arm: 2

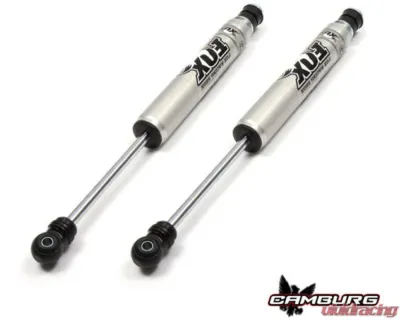

    • FOX 2.0 Performance Series Rear Shock: 2
    • FOX Toyota Tacoma Pre/4wd 05-23 2.5 IFP Front Coilover: 2
Installation Guide:

Fitments:
  • Lexus GX470 2003-2009


Notes:
  • Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
