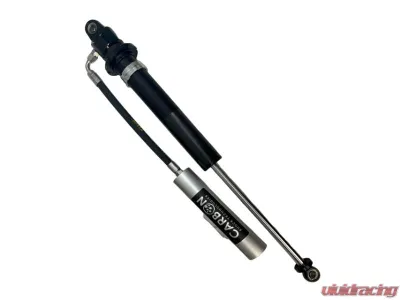

Carbon Shocks 12inch Stroke Dual Speed Adjustable Reservoir 2.5inch Coilover Shocks - CO12-25AR-15R
Carbon Shocks are Manufactured in America using American Made and sourced materials. Carbon Shocks are machined in house.

Specifications:
  • Shock Body Material - American D.O.M. Honed Steel
  • Standard coating is Black Cerekote. Optional Stainless steel available upon request.
  • Shock Shaft Material - Induction Hardened Chrome Plated - 1050 Steel HRc 60-72 (Min Yield 100K)
  • Aluminum parts are manufactured from Kaiser 6061 or 7075 aluminum.
  • Standard Misalignment Spacers - 1.5" X .5"
  • 2.5" X 12" - 1.5" Short Rod End
  • Compressed - 20.1
  • With Spring Plate - 20.475"
  • Extended - 32.1"
Features:
  • Shocks are Pressure tested to 300PSI for 24 hours to ensure proper manufacturing QA
  • Shocks Require a Nitrogen Charge of 150-200 PSI.
  • Ideal Charge for Shocks is 175PSI of Nitrogen.
  • All Shocks come standard using Carbon Shocks Blue ICE
  • 12 Month Warranty - Terms and Conditions
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Carbon Shocks Logo

ABOUT Carbon Shocks

Carbon Shocks Technologies prides itself on being the manufacturer of shocks made in America and suspension components in Parker, Colorado, which is achieved by using the material that is created and acquired from the USA. Locally, the carbon shocks are machined in the Denver area. The company's focus is on designing products that fulfill the requirements of the performance aftermarket accessory.

WHY CHOOSE CARBON SHOCKS

The Carbon Shocks produce the finest quality products, making sure they do not leak and are well functioning. The company manufactures the products within the company and does not rely on outsourcing. The parts of the carbon products are created by using the 7 CNC machines. The products are anodized within the company, baked on coating and laser etched, which enables a shorter lead time while having greater control of production and, at the same time, keeping the cost under control.

CARBON SHOCKS QUALITY CHECK

For a day, the shocks are pressure tested at 300 psi to make sure the manufacturing QA is effective. A nitrogen charge of 150-200 PSI is required by the shocks, while ideally the charge of nitrogen should be 150-175 PSI. They use the shock oil that they get from the local Titan 10W extreme temperature shock oil. Carbon Shocks Technology is known for its products not having any manufacturing defects even after years of using them.

CARBON SHOCKS PRODUCT LINE

The product line of Carbon Shocks includes shocks, coil overs, bump stops, bypass shocks, shock tuning, and shock servicing products for various bike models.

VIVID RACING- CARBON SHOCKS

Many Carbon Shocks products are available at Vivid Racing. They include the Carbon Shocks Travel Pin Top Bump Stop, the Carbon Shocks Travel Threaded Bump Stop With Can, the Carbon Shocks Threaded Bump Stop Can, and many more.
