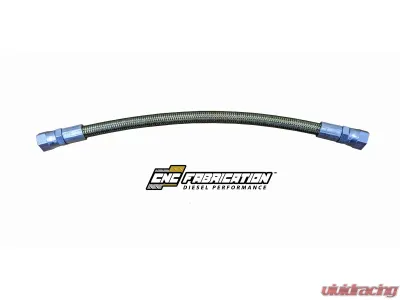

CNC Fabrication Driver HPOP Line No Fittings Ford 7.3L Powerstroke 1994-2003 424006

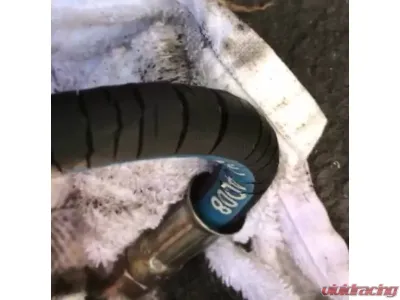

We know it may be cheaper for those wanting to save some money and have a local hydraulic shop make lines, but in our 20yrs experience, it is not advisable due to the amount of thermal cycling and engine sees. Normal hydraulic is meant for normal hydraulic use, NOT on the engines. See pictures of what happens to our competitor lines. Dry rot and blistering of the hose.
Features:
- All new Genuine Brennan fittings
- DuPont Teflon lining just like OEM
- Burst pressure rating of 16,000psi
- Working temperature rating of 400°F
- Nominal working pressure is 5000psi
- High quality Viton o-rings
- Made in the USA CNC Fab Shop
- For Instructions CLICK HERE

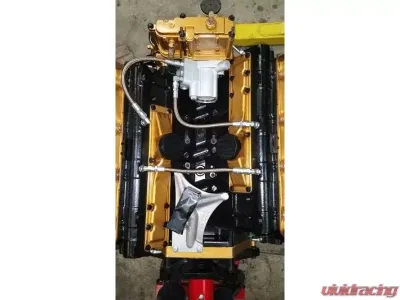

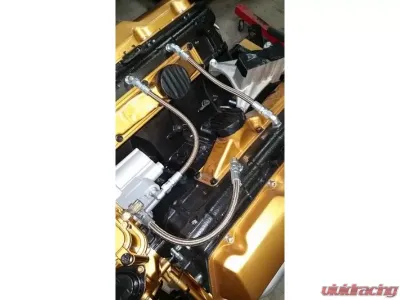

Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use pictures from the product webpage for routing example. The fittings are marked with numbers to match installation location (see below for reference). After installation, be sure there are no other lines/wires that are touching the lines that could potentially rub through and damage either the HPOP line or the other line that may be touching it. Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point. Many will remove or bend the engine eyelet on the driver side as a precaution, but it is not necessary. Sealant is not necessary, but IF you choose to use any, use Loctite 680 or Permatex 64000 retaining compound (green) only on the fittings installed in the HPOP. If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.
Notes:
- REMOVE THE SPRING CHECKS IN THE PUMP UNDER THE STOCK FITTINGS, DO NOT RE-INSTALL
- HOSE IDENTIFICATION: 98.5-03 2 LINE-BOTH SIDES ARE SAME LENGTH. 94.5-97 2 LINE- PASSENGER IS LONGER OF THE 2. FOR ANY 3 LINE KIT THE SHORTEST LINE IS THE CROSSOVER HOSE.
- FITTING MARKINGS: 1- FRONT PUMP PORT 2- REAR PUMP PORT 3- DRIVER HEAD 4- 94.5-97 PASSENGER HEAD 5- 98.5-03 PASSENGER HEAD AND CROSSOVER 94.5-97 driver side fitting gets moved forward one port on the head to match 98.5-03
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
CNC Fabrication specializes in the performance of Ford Power Stroke diesel engines. From stock cars to sled pulling and drag racing, there is something for everyone. At CNC Fabrication, they have a mission to consistently expand their brand through the introduction of innovative, high-quality products that will enable them to better serve customers’ specific needs.
CNC FABRICATION HISTORYCNC Fabrication, began as a side business about ten years ago with the goal of assisting Ford Powerstroke in upgrading their work vehicles and resolving some concerns. Due to the success of their first two products, the shop has grown quickly, allowing the owner to leave his 22-year full-time job as a journeyman millwright to keep making new, innovative products and giving customers more ways to keep their trucks running for many years to come. CNC Fabrication is one of the rare manufacturers of Ford engines and accessories that is being sold at an affordable price without compromising on quality.
CNC FABRICATION PRODUCTWith decades of experience delivering proven capabilities in precision, quality, and documentation standards, CNC Machine & Fabrication possesses the expertise, machinery, and management necessary to deliver precision parts of the highest quality with exceptional service. Exclusively for the Ford Powerstroke engine line up, they are the best in performance diesel parts and machinery accessories. These include injectors, exhaust, fuel systems, fabrication, suspension, turbos, and interior accessories for ford engines. One of their heavy production is the 7.3L fuel line kit Ford Powerstroke engine that eliminates mechanical leaks and comes with all the necessary fittings for the installation process.
Vivid Racing – CNC FABRICATIONVivid Racing holds high quality products from CNC Fabrication suppliers. Their specific products includes the ford Powerstroke feed fuel line kit, Air Intake heater delete plug, air cooler boot kit, fuel line kit, fuel bowl Powerstroke, high pressure oil pump lines, intake plenum reinforcement, plate girdle black oxide steel, valve spring kit, and Bee hive valve for Ford engines.
