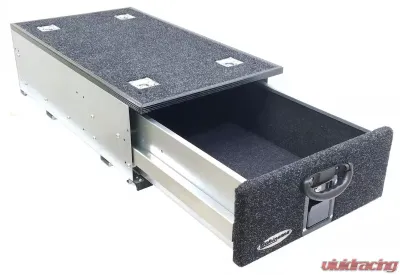

Dobinsons Universal Mount Medium Single Roller Drawer System
$800.00
Dobinsons 4x4 offers two different sized single roller drawers which could be used in a variety of vehicles.  This single drawer is exactly half of the standard RD80-1001 that Dobinsons already offers as dual drawer setups. This drawer system comes fully assembled when shipped, and includes mounting hardware.  Drilling through the floor will most likely be required for a secured setup, as a minimum of 4 mounting points are recommended to hold it to the floor for security.  The Dobinsons single drawer system does not come with a sliding top, it has a fixed top which allows the drawer to be locked and more secured.  Dobinsons sells separate fridge slides which could be mounted to the top of this drawer, if desired. Dobinsons Drawer System Instructions Features include: 1.6mm Zinc plated robust steel construction, 12mm heavy duty plywood panels with marine carpet covering, 4 x heavy duty stainless steel tie down points built in to the top of the drawer, aluminum edge protection, heavy duty lockable latch, 150KG (330LB) Draw Capacity, and heavy duty roller bearing system. Dobinsons drawers are perfect for storing your recovery gear, camping equipment, cooking gear, tools and spare parts, tow and snatch straps, or whatever you can think to carry on your adventure. Packing your equipment in these drawers alleviates the need for multiple bins/totes and allows for secure storage without having to tie everything down inside. (This Product Page) RD80-1004 Medium Sized Drawer measures 900mm long x 500mm wide x 275mm high (total external dimensions), and 840mm long x 435 wide x 195mm high internal drawer dimension.  This size would be most ideal for 4Runner, Lexus GX460/470 and wagons that don't have a lot of length in the rear hatch area. RD80-1003 Large Sized Drawer measures 990mm long x 535mm wide x 275mm high (total external dimensions), and 935mm long x 460 wide x 195mm high internal drawer dimension.  This size would be most ideal for Land Cruisers Photos show the RD80-1004 size, which represents the features and texture of both sizes. Note: A special returning handling charge will be assessed if a return is necessary.  Drilling and bolting through the floor is required, along with alignment of the drawer system of the floor to make sure everything is installed correctly.  Installation by a professional is recommended.  Also you may need to add metal spacers or washers stacked, approximately 1" thick, between the floor and the drawer mounting ribs, as the 4Runners and Lexus GX models have a rib built into the floor near the back seat.  The drawers need to be spaced up from that rib so that they will sit flat and open without contacting anything when opening up.

Features:
  • Measures 900mm long x 500mm wide x 275mm high, 75 LBS dry weight
  • 1.6mm Zinc Plated Robust Steel Construction
  • 12mm Heavy Duty Plywood Panels with Marine Carpet Covering
  • 4 x Heavy Duty Stainless Steel Tie Down Points
  • Aluminum Edging Protection, Heavy duty lockable latch
  • Not compatible with 3rd row seat installed.
  • Massive 150KG (330LB) Drawer Capacity on Heavy Duty Roller Bearing System
  • Shipping is to nearest Freight Terminal or to a Commercial address with a loading dock or forklift.  Residential delivery adds additional separate costs
  • Sold Individually
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Dobinsons Spring & Suspension Banner

Who is Dobinsons?

Dobinson is a company that specializes in producing suspension parts, mainly leaf and coil springs setups, particularly those from SUVs or offroading vehicles. The company was established in 1953 and has been providing quality parts for more than 70 years.

Today, they have become one of the market leaders in Australia and is continuously growing by expanding its reach worldwide.

Dobinsons is considered the largest source of 4x4 suspension parts. Known for its quality and durability, it has become the brand of choice by enthusiasts who want to improve their suspension system. They have over 13000 spring specifications in their inventory, which are all designed through the use of the latest computerized software and technology. This allows them to produce professional and accurate end products.

Dobinson is located at a 4000 square meter facility that serves as their manufacturing hub and inventory warehouse. They offer a wide range of parts such as coil springs, torsion bars, leaf springs, Shackle kits, shock absorbers, U bolts, Centre bolts, polyurethane bushings, castor wedges, and other 4x4 accessories.

Purchase Dobinsons Products at Vivid Racing

If you want to have a suspension system that could work well in any condition, may it be for daily driving or a weekend excursion off the road, then Dobinson is the right brand for you. Their products are designed to work better than stock and allow you to perform your offroading duties worry-free. With a variety of suspension parts to choose from, Dobinsons would have the right product for you. Visit Vivid Racing and check out the list of parts that would fit your specific needs and vehicles.



Dobinsons Spring & Suspensionâ„¢ at its sole discretion will repair or replace any products supplied by them that are found to be defective in either materials or workmanship providing that Dobinsons Spring & Suspensionâ„¢ are actually notified in writing from the Client of the alleged defect within two years (2 years) from date of invoice for Coil Springs, Leaf Springs and Shock Absorbers, and within twelve months (12 months) from date of invoice for all other parts. Any claim not made within this period shall conclusively be deemed waived by the Client. Repair or replacement is pre-conditioned on the examination of the goods which on instructions from Dobinsons Spring & Suspensionâ„¢ on, should be returned for further inspection to Dobinsons Spring & Suspensionâ„¢ or to an Approved Importer.

Coil Springs listed in this catalogue have a 2 year warranty against the following:
  1. Faulty Manufacture
  2. Breakage
  3. Sagging (being loss of free height of more than 10mm)
Leaf Springs listed in this catalogue have the 2 year warranty against the following:
  1. Faulty Manufacture
  2. Breakage
  3. Sagging (being the loss of free camber by more than 12mm)
Shock Absorbers listed in this catalogue have a 2 year warranty providing the vehicle does not have a modified exhaust system.

Fridges listed in the catalogue have a 5 year warranty on the motor and a 1 year warranty on all other parts against:
  1. Faulty Manufacture
Winches listed in the catalogue have a 2 year warranty against:
  1. Faulty Manufacture
All other accessories listed in the catalogue have a 1 year warranty against:
  1. Faulty Manufacture
Dobinsons Spring & Suspension™ products are designed for normal use and are in no way, covered under warranty should the vehicle be used in any form of extreme sports, competition racing or produce lift of 50mm or more. It is the responsibility of the fitter, to ensure that the customer or the owner of the vehicle is aware of the warranty conditions under which the products have been sold. It is highly recommended that the words ‘Suspension Components Fitted are for Normal Use Only. Warranty Void if used in extreme conditions” is written on their receipt to avoid any confusion.

Dobinsons Spring & Suspensionâ„¢ will not pay for costs incurred in forwarding or returning goods. This warranty does not cover and Dobinsons Spring & Suspensionâ„¢ makes no warranty with respect to; (1) any merchandise that is abused, misused, misapplied, neglected or altered; or that is improperly or incorrectly installed or maintained or used; or that is subjected to abnormal conditions of use, temperature, moisture, dirt or corrosive matter; (2) Goods bought for industrial, mining or agricultural use; (3) Goods no longer required by Client; (4) Goods incorrectly chosen by Client; (5) Goods modified or altered by client; and (6) any merchandise, materials, parts or other components supplied by someone other than Dobinsons Spring & Suspensionâ„¢.

Dobinsons Spring & Suspensionâ„¢ shall not be liable for any expenses incurred by Client in order to remedy any defect in its product. Dobinsons Spring & Suspensionâ„¢ shall not be liable for any consequential, special, indirect or contingent damage or expense arising Directly or Indirectly from any defect in its products or from use of any products.

Client agrees to indemnify and hold Dobinsons Spring & Suspensionâ„¢ harmless from and against any loss, injury or damage, to person or property, that extends beyond the warranties set forth above, whether the claims against Dobinsons Spring & Suspensionâ„¢ or the damages are incidental or consequential.

Installation of aftermarket items to your vehicle may adversely affect, void or violate the Manufacturers terms of warranty on your vehicle. Review the terms of your vehicle warranty prior to purchase and/or installation of any aftermarket part or accessory. Dobinsons Spring & Suspensionâ„¢ does not make any representations or warranties of any kind as to suitability or fitness for a particular vehicle or purpose. Dobinsons Spring & Suspensionâ„¢ shall not be responsible or liable for direct or indirect damages as a result of the purchase and/or installation of these aftermarket products.

For the Dobinson’s Warranty Form, please click here.
