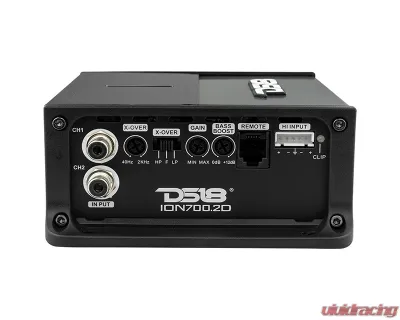

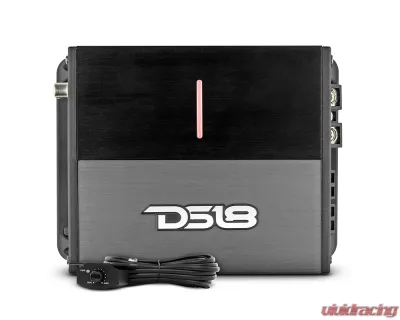

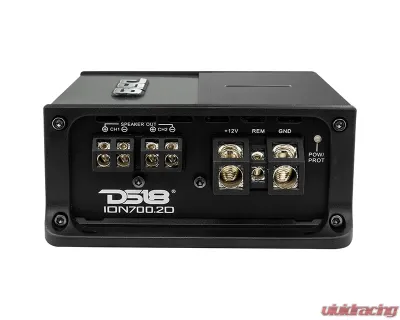

DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D
DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D - Image 6 DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D - Image 2 DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D - Image 3 DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D - Image 4 DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D - Image 5 DS18 2 x 350 Watts RMS 2-Ohm ION Compact Full Range 2 Channel Amplifier - ION700.2D - Image 6

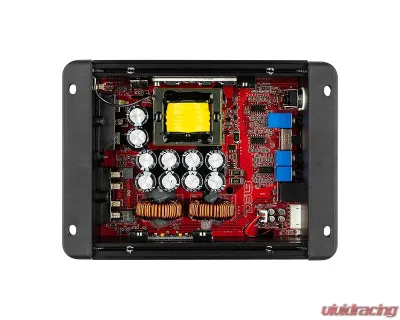

Introducing DS18's ION700.2D, the perfect digital micro amplifier addition to your car audio system for boosting performance and efficiency for a premium listening experience! Hi-level Inputs and Tiffany RCA's allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION700.2D miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space. The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies. You also have the ability to adjust the amplifier's 45Hz Bass Boost level up to 12dB. Fine tune these levels with the convenient remote level knob control! Safety was a top priority in the creation of DS18's ION700.2D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability. The ION700.2D has power ratings of 700W at 4-ohm bridged, 2 x 350W at 2 ohms, and 2 x 240W at 4 ohms; perfect power ratings to turbocharge every component in your system! Experience the power and precision of DS18's ION700.2D!

Features :
  • 2 Channel Full Range
  • Class D
  • 2 - 4 Ohm Stable
  • 2 X 240 Watts @ 4 Ohm
  • Power / Clip / Protection Indicator
  • Compact
Specifications :
  • Total Watts (Peak) : 2100W
  • RMS Power @ 4 ohm : 2 x 240W
  • RMS Power @ 2 ohm : 2 x 350W
  • RMS Power @ 1 ohm : N/A
  • RMS Power @ 4 ohm Bridge : 700W
  • Audio
    • Frequency Response : 10Hz-20KHz
    • Signal to Noise Ratio : >95dB
    • Efficiency @ 4 ohm : 0.88
    • Damping Factor : 210
    • Input Impedance : 27Kohms
    • Channel Separation : 59dB
    • Total Harmonic Distortion (THD) : 0.0001
    • Low Level Input Range : 0.2-6V
    • High Level Input : Yes
    • Selectable X-Over : LPF/HPF/FULL
    • X-Over Filter Range : 40Hz-2KHz
    • Bass Boost Range : 0~12dB
    • Bass Boost Frequency : 45Hz
  • Features
    • Amplifier Class : Digital
    • Amplifier Type : Full-Range Stereo
    • Number of Channels : 2
    • Minimum Impedance : 2 Ohm (St) / 4 Ohms (Bridge)
    • Led Indicator : Power / Protect / Clipping
    • Power Input Terminal Size : 4 AWG
    • Fuse Size : 60A (external)

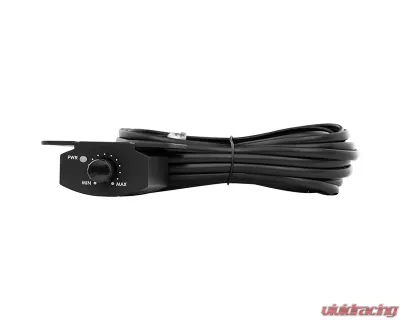

    • Remote Level Control : Yes
    • Cooling Fan : No
    • Thermal Protection : Yes
    • Over-Load Protection : Yes
    • DC Output Protection : Yes
    • Short Circuit Output Protection : Yes
    • Voltage Input Protection : Yes
    • Clipping Protection : Yes
    • Body Color / Finish : Aluminum Black / Silver
  • Extra Features
    • Hi-Level Speaker connector : Yes
    • Tiffany RCA Terminal : Yes
    • LED Clip Indicator : Yes
    • High Efficiency Micro Digital Design : Yes
  • Measurement
    • Overall Length : 6.14" / 156mm
    • Overall Wide : 4.72" / 120mm
    • Overall Height : 2" / 52mm
    • Heatsink Length : 4.84" / 123mm
    • Gross Single Unit Weight : 0.75Kg
Install Instructions :
