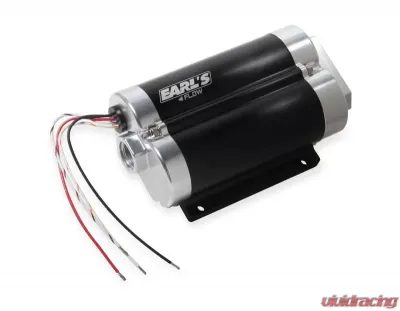

As an added benefit for the hard core that like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!
Features:
- Billet aluminum construction for durability and good looks
- 10 AN O-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.66 Long x 5 Wide x 2.5 Tall) for easy installation on frame rails or other tight areas
- Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
- Patent pending dual pump technology
- Proven durability beyond 3,000 hours in race gas or diesel fuels
- Weighs only 5.1 lbs.
- Current draw at 43 PSI and 13.5 VDC is 17.2 Amps
- Not designed for use on aircraft of any type.
*Pump gas compatible for intermittent or under 90 degree ambient temperature use
Pump gas use recommendations:
This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees
For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-1200-2 or 12-1600-2 for optimum hot fuel handling
Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.
To reduce fuel temperatures and vapor lock issues, it is recommended to operate these pumps using one pump for daily driving and low power levels and bring the second pump in with a pressure switch or other device when fuel flow needs increase. This will reduce heating of the fuel load by eliminating excess fuel circulating to the front of the vehicle, thru the fuel rails and back the tank.
Will work with E-85!
These pumps do not have an internal bypass. A bypass style regulator and return line are required.
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Earl’s Performance is a company founded by Earl Fouts in 1955. Located in Lawndale, California, the company first supplied high-quality military aircraft plumbing components to the racing industry. Earl saw the need to produce their own when military supply started drying up, which he did. Today Earl’s Performance is one of the best brands when it comes to high-performance hoses and fittings in the world.
Built To PerformThe company is known for producing aircraft-grade plumbing products for the motorsport industry. Race cars are built with double the amount of horsepower compared to average vehicles. Therefore, each component should be able to handle extreme forces from these high-powered vehicles. Earl’s Performance products do not disappoint as it is rated to handle engines with more than 5000 horsepower.
Your Automotive Plumbing ExpertThe company offers a wide range of products ranging from hose protection sleeves, clamps, braided hoses, hose ends, adapters, fuel system components, oil cooling systems, fasteners, plumbing tools, and more. Each product is designed specifically to work for high-performance applications.
Purchase Earl’s Performance Products At Vivid RacingIf you are in the market for a high-quality plumbing solution for your vehicle, then Earl’s Performance is the brand for you. They have a variety of hoses and fittings that comes in different lengths and sizes. For 66 years, they have provided thousands of enthusiasts with quality products they could rely on. To know more about Earl’s Performance and what they can offer, visit Vivid Racing and check out their list of parts that fit your needs.
