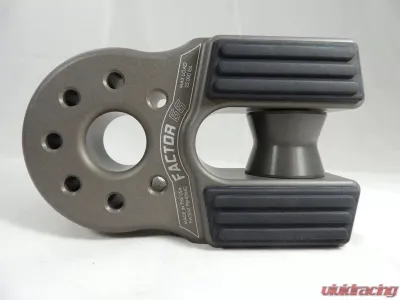

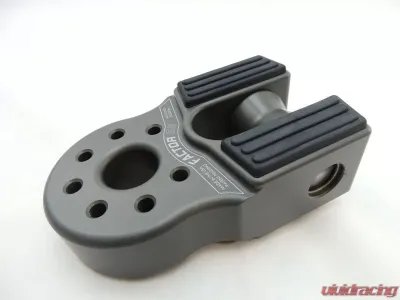

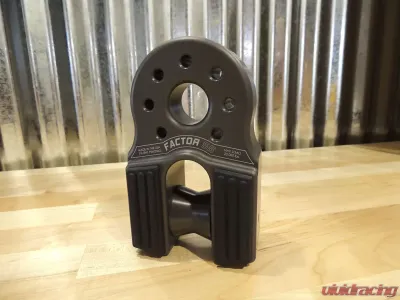

Factor 55 FlatLink XXL Winch Shackle Mount Assembly Anodized Gray - 00090-06
Factor 55 FlatLink XXL Winch Shackle Mount Assembly Anodized Gray - 00090-06 - Image 5 Factor 55 FlatLink XXL Winch Shackle Mount Assembly Anodized Gray - 00090-06 - Image 2 Factor 55 FlatLink XXL Winch Shackle Mount Assembly Anodized Gray - 00090-06 - Image 3 Factor 55 FlatLink XXL Winch Shackle Mount Assembly Anodized Gray - 00090-06 - Image 4 Factor 55 FlatLink XXL Winch Shackle Mount Assembly Anodized Gray - 00090-06 - Image 5
Factor 55 has released world's first foldable winch shackle mount with self centering load pool. Compatible with wire rope diameters of up to 3/4 inch and synthetic rope tube thimbles up to 5/8 inch in diameter. Fits shackle pin diameters of 1 1/8 inch. 7/8 inch diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.

Features:
  • Color: Anodized Gray
  • Replace conventional winch hooks with a safer more secure shackle/D-ring
  • Safer recoveries through the practice of Closed System Winching
  • Lightweight Precision CNC machined 6000 series Military Grade Aluminum
  • No splicing required double shear pin design
  • Designed for both steel cable and synthetic winch rope eyes
  • Equipped with a shear pin load centering spool for wire rope applications
  • Foldable and stows rattle free against fairleads
  • Integrated EPDM rubber pads for fairlead protection
  • Fits common 7/8 and 1inch screw pin shackle sizes (1.0 and 1.125 pin diameters)
  • For synthetic rope diameters up to 5/8 and wire rope up to 1 inch
  • Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
  • 7/8 inch diameter double shear pin
  • Max Rated Load: 26,000 pounds
  • Ultimate Strength: 68,000 pounds
  • Weight: 51oz
  • Made in USA
