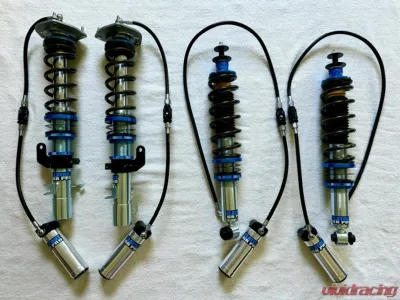

Our Flatout Suspension GR-PRO is the pinnacle of our rally suspension variants. Most notable features are the inverted shocks and 3-way (high speed compression/ low speed compression/ rebound) shocks with external reservoirs. The PRO model can be built with dry-break reservoir lines.
Due to the complexity and option of this suspension, we do not offer an off-the-shelf version. You can choose your rates F/R, travel F/R, and spherical bearing top plates or camber plates.
Specifications:
Fitments:
Note:
Due to the complexity and option of this suspension, we do not offer an off-the-shelf version. You can choose your rates F/R, travel F/R, and spherical bearing top plates or camber plates.
Specifications:
- Designed for Rallycross
- 2 Front Assemblies
- 2 Rear Assemblies

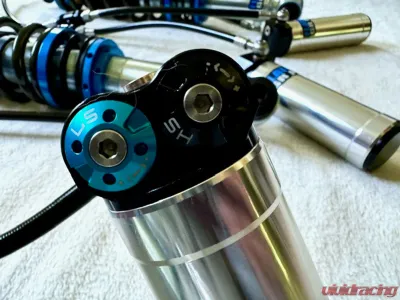

- External reservoirs
- 3-Way Shock damping : Rebound/ High Speed Comp/ Low Speed Comp
- 40mm Piston
- Linear rate springs (250F/ 250R)
- Radial bearing on Front Assembly
- Highly Polished Electro-Plated Nickel Cartridge
- Rebuildable Inverted Shock
- CNC Machined High-flow Aluminum Piston
- Stainless Steel Shims
- Light Weight Synthetic Shock Oil
- Rebound Adjustable: 20 pts

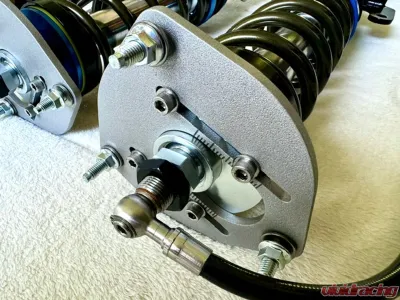

- Camber Adjustable mounts standard
- Fixed rubber bushing upper mounts available
- Brackets for Sensor Lines on shock body
- Individual Parts Available
Fitments:
- Mini Cooper 2001-2006
Note:
- 15mm spacers recommended
