Gates EFG4K Spiral Wire Hose - SAE 100R12 - 70811
Gates EFG4K Spiral Wire Hose - SAE 100R12 - 70811 - Image 2 Gates EFG4K Spiral Wire Hose - SAE 100R12 - 70811 - Image 2

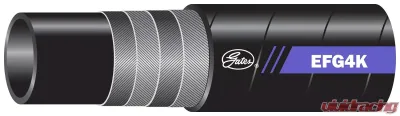

EFG4K Spiral Wire Hose - SAE 100R12

When it comes to high-pressure applications, the EFG4K Spiral Wire Hose is a top choice for those needing reliability and durability. This hose is specifically designed for very high-pressure and high-impulse environments, making it perfect for industrial settings.

Compatibility

The EFG4K hose is compatible with a variety of fluids, including biodegradable hydraulic fluids such as polyolester, polyglycol, vegetable oil, and standard petroleum-based fluids. It pairs seamlessly with:

  • GlobalSpiral Couplings [G20 Series]
  • GlobalSpiral One-Piece Couplings [G21 Series, -20 Only]
  • Stainless Steel Spiral Couplings [G18 Series]

Durability and Performance

This hose has been tested to an industry-leading 1,000,000 impulse cycles, ensuring it can withstand rigorous use. The XtraTuff variant lasts up to 25 times longer than standard hoses, while the MegaTuff version can last up to 300 times longer during hose-to-hose and hose-to-metal abrasion tests (per ISO 6945). It also boasts superior ozone and weathering resistance.

Safety and Specifications

The EFG4K hose meets the Flame Resistance Acceptance Designation MSHA 2G, ensuring safety in high-risk environments. With a temperature range of -40°F to +250°F (-40°C to +121°C), it is built to perform under extreme conditions.

Key Features

  • Product Type: EFG4K Spiral Wire Hose - SAE 100R12
  • Industrial Description: 6EFG4KXCTN
  • Type: Hydraulic Hose
  • Maximum Working Pressure: 4000 psi
  • Minimum Burst Pressure: 16000 psi
  • Temperature Range: -40°F to +250°F (-40°C to +121°C)
  • Length: 100 ft
  • Dash Size: 6
  • Hose Inside Diameter: 0.375 in
  • Hose Outside Diameter: 0.80 in
  • Minimum Bend Radius: 2.5 in
  • Tube Description: Black, Oil-Resistant, Synthetic Rubber
  • Tube Material: Nitrile - Type C
  • Reinforcement: Four Alternating Layers of Spiraled, High-Tensile Steel Wire
  • Cover Material: Synthetic Rubber - Polychloroprene - Type A
  • Cover Type: Type A - Flame & Oil Resistant
  • Cover Color: Black
  • Coupling Recommendation: GlobalSpiral, Stainless Steel S
  • SAE Specification: 100R12
  • EN Specification: 856 R12
  • ISO Specification: 18752 Grade D, 3862 Type R12

Conclusion

With its robust construction and high-performance specifications, the EFG4K Spiral Wire Hose is an essential component for anyone in need of a reliable hydraulic hose. Whether you're working in demanding industrial conditions or simply need a hose that can withstand the test of time, this product delivers on all fronts.

Other Part Numbers:
Gates #GATES-70811
