VCU OVERVIEW:
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low side drive outputs)
- 12 x low current ignition outputs (can be used as low side drive outputs)
- 8 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers, supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
Includes:
- 1 x HT-186206 Terminated Harness
- 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices
- 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan
- 1 x DT-8 connector with pre-crimped 18AWG wires
- 1 x 2 pin Bosch alternator adaptor harness
- 1 x 2 pin Yazaki alternator adaptor harness
- 1 x 4 pin Delco alternator adapter harness

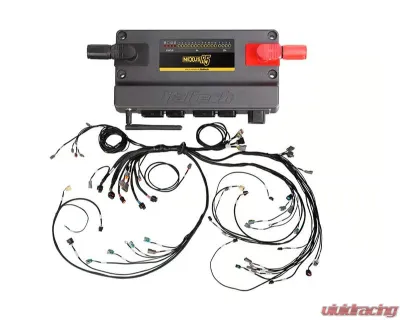

- 1 x HT-195000 - Nexus R5 ECU 1 x HT-186205 - Terminated Harness
Features:
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
- 8 x Primary injectors (EV6)
- Breakout plug for 8 x Secondary injectors
- 2 x outputs available for Tertiary injection
- Single / Dual boost solenoid control
- Dual wideband sensor control (R5 onboard wideband controller)
- Flex fuel sensor connection
- Direct fuel pump control (using 25A-HCO)
- Direct thermofan control (using 25A-HCO)
- In-cabin breakout connector for spare inputs and outputs
- Engine bay breakout connector for spare inputs and outputs (eg transmission control)
- Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
- Haltech CAN Bus support (DTM-4)
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Haltech has been at the forefront of engine management technology since its inception in 1986. For the last 30-plus years, the company has been globally recognized as a leader in its field, renowned for its cutting-edge technology and customer support. To uphold its reputation, Haltech continues to adapt and stay up to date with new emerging technologies and changing expectations from car enthusiasts, racers, and tuners alike. The company currently has two main offices, one in New South Wales, Australia, and the other in Lexington, Kentucky, U.S.
With an ever-evolving industry like the automotive one, some things still remain a constant. That includes Haltech’s unwavering commitment to quality and innovation, as well as the passion and dedication of the Haltech team to deliver products that are second to none. These qualities have been the company’s trademark from the very beginning and are the main reason why thousands of consumers all around the globe trust Haltech for their engines.
What Does Haltech Do?Haltech designs and manufactures a wide range of automotive performance electronics; it is best known for its engine management systems. Its engine management systems are engineered to control throttle bodies, staged fuel injection systems, distributors, direct injection systems, and engines of all types, including turbocharged, supercharged, and naturally aspirated. The brand offers a comprehensive lineup of ECU and standalone engine management products like CDI ignition systems, sensors, tuning tools, engine harness kits, engine control units, and more!
Today, Haltech ECUs are sold in more than 50 different countries around the world. Haltech ECUs allow you to make the most of your car’s existing engine. These units are specifically designed to control various aspects of modern engines, including the engine load, air intake, and RPMs. These readings help the ECU regulate the fuel supply and spark plug timing to ensure your engine is running to optimal power and fuel efficiency. Haltech ECUs have been proven over and over again, and are the driving force behind many record-setting racecars. In fact, Haltech is credited as being the first in the world to develop real-time engine management calibration.
Part of the Car CommunityThe company’s active YouTube channel aims to help customers get the most out of Haltech’s products via DIY projects, fitment instructions, setup tutorials, product reviews, and entertainment segments. In addition, Haltech is also actively involved with many popular car culture shows like Discovery Channel’s Street Outlaws and Mighty Car Mods. It also participates in numerous racing and motorsport events such as NMCA/NMRA, SEMA, PRI, World Cup Finals, Summernats, and the World Time Attack Challenge.
Purchase Haltech Parts at Vivid RacingVivid Racing carries a wide range of Haltech products to unleash your engine’s full potential. Our inventory includes dash displays, tuning box kits, interior mounts, ECU flashes, universal fuel injectors, standalone ECUs, and numerous tuning accessories. If you have any questions regarding the parts above or have fitment concerns, please contact our specialized sales team at (480) 966-3040. We are here to make the purchase process a pleasant and seamless experience for all of our customers. We look forward to helping you take your car’s engine to the next level and enjoy newfound power gains.
If the Haltech product is found to be defective as mentioned above, it will be replaced or repaired if returned prepaid along with proof of purchase. Proof of purchase in the form of a copy of the original purchase invoice, receipt or bill of sale which indicates that the product is within the warranty period, must be presented to obtain warranty service.
Replacement or repair of a defective product shall constitute the sole liability of Haltech. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representations, either expressed or implied, including any implied warranty of merchantability or fitness. In no event shall Haltech, be liable for special or consequential damages.
