High Lifter Portal Gear Lift 6 inch Dual Idler Version Polaris RZR TURBO XP | TURBO XP 4 16-20
$4595.00
Free Shipping
What are the Dual Idlers with 60% Reduction Kit? High Lifter has engineered is a gearing setup that allows us to place two idler gears in the portal gear box. Our competitor only has a single gear option with their greatest reduction at 45%. The dual idler gears spread the load between twice as many teeth on the gears, which doubles the area and reduces stress by half allowing more abuse. Like any other portal kit there will be a reduction in top speed when running the 6" Dual 60% gears. This kit is for riders who are looking for torque and power. The dual 60% is perfect for the hardcore mud rider that wants to hit the holes hard and come out on the other side!

What does the 60% Dual Idler Gear Lift offer?

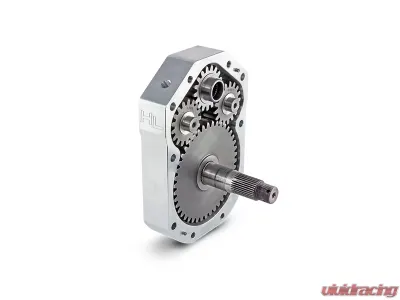

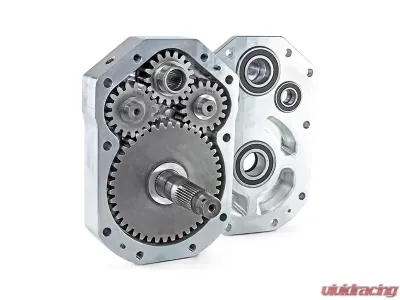

  • High Lifter improved the portal design by adding a second idler gear in the gear box
  • The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
  • You gain more reliable torque transfer
  • If you run a 40" tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
  • Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears
  • 60% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
  • Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!
Features:

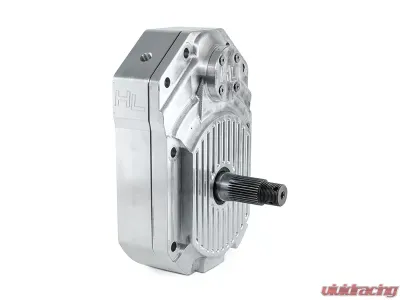

  • Strongest gear boxes on the market because forging produces a tougher piece of metal
  • Forging is stronger than both cast and billet aluminum
  • These portal boxes are extremely robust and give you more worry-free miles than any other portal
  • High Lifter's box design offers a plug for venting with an optional easy to install kit that will be available soon
  • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
  • High density Kevlar fiber gaskets plus no additional sealant is needed
  • Gasket material is creep resistant plus oil and coolant resistant
  • Two oil seals on the spindle shaft for 100% more sealing area
  • Dual seals prevent water intrusion and oil leaks
  • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

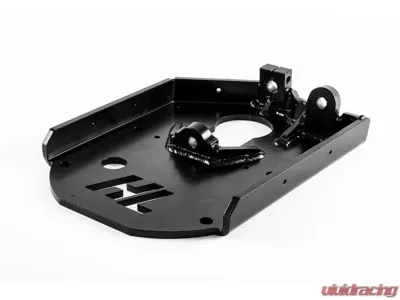

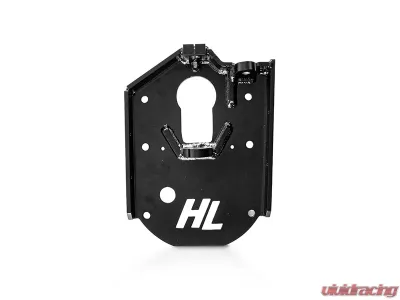

  • 5/16" steel plate with Bent flanges for strength and durability
  • Welded gusset brackets and designed to factory off-set
  • Works with all control arms that are built to factory hub specifications

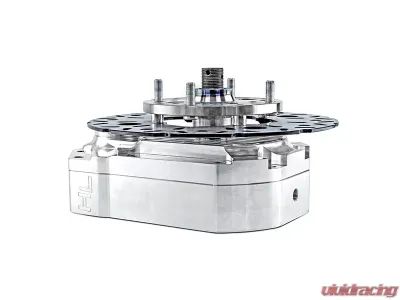

  • Precision ground stainless steel 13" rotors (this is a big deal for brake performance)
  • Slotted rotor allows for heat dissipation and cooling
  • Alloy steel heat treating process increases overall internal and external strength
  • CNC precision ground machining ensures excellent fitment and increased strength
  • Controlled gear lapping for ease of installation and a quieter performance
Fitment:
  • 2016 Polaris RZR TURBO XP EPS
  • 2016 Polaris RZR TURBO 4 XP EPS
  • 2017 Polaris RZR TURBO XP EPS
  • 2017 Polaris RZR TURBO 4 XP EPS
  • 2018 Polaris RZR TURBO XP DYNAMIX Edition
  • 2018 Polaris RZR TURBO XP EPS
  • 2018 Polaris RZR TURBO XP 4 EPS
  • 2018 Polaris RZR TURBO XP FOX Edition
  • 2018 Polaris RZR TURBO XP 4 FOX Edition
  • 2019 Polaris RZR TURBO XP EPS
  • 2019 Polaris RZR TURBO XP LE
  • 2019 Polaris RZR TURBO XP DYNAMIX Edition
  • 2019 Polaris RZR TURBO XP 4 EPS
  • 2019 Polaris RZR TURBO XP 4 LE
  • 2019 Polaris RZR TURBO XP 4 DYNAMIX Edition
  • 2020 Polaris RZR TURBO XP
  • 2020 Polaris RZR TURBO XP 4
View Install Instructions HERE!

Other Part Numbers:
High Lifter #PGL-660DI-RZRT

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

High Lifter Banner

Who is High Lifter?

High Lifter is an aftermarket company that was established in 1996. The company specializes in creating accessories and upgrade parts designed for All Terrain Vehicles (ATV), UTVs, and RUVs. It started as a backyard hobby which later on turned into a multi-million dollar company.

Outstanding Facilities

The company is based in Shreveport, Louisiana in a 52,000 square foot facility. It houses its own retail showroom, an in-house manufacturing facility, and not to mention multiple warehouses used for housing its inventory. Today, they are the leading company in its market segment and is a brand known worldwide.

The company began by developing the very first ATV Lift kit. Seeing the lack of aftermarket support on these vehicles, they grab on the opportunity and developed a kit that people could directly bolt-on. After numerous design revisions and product testing, they were able to create a final design. They initially sold their products in small numbers but as people started appreciating it, orders started pouring in and the rest is history.

High Lifter was also responsible for creating one of the most recognizable events for ATVs and UTVs- the High Lifter ATV Mud Nationals. Today, it has become an annual event with over 14,000 attendees coming from different parts of the globe. High Lifter has helped revolutionize the industry and forever changed the industry as we know it.

Purchase High Lifter Product at Vivid Racing

High Lifter offers a wide range of products designed for ATV and UTV such as lift kits, bumpers, and other offroading accessories that helps improve the performance of your vehicle. They are a brand trusted by everyone for years and so can you. Visit Vivid Racing and see their list of products.

From the beginning, High Lifter has engineered and manufactured some of the toughest, most durable products on the market. That’s why this product comes with a Lifetime Warranty. It’s our promise that High Lifter will never let you down.

  • The Lifetime Warranty covers products sold to the original purchaser only and is not transferable. The term of the warranty is for the lifetime of the vehicle in question.
  • Normal wear and tear items and finishes, such as, but not limited to: Heim joints, tie rod ends,ball joints, bearings, seals, bushings, bushing sleeves, zinc plating, powder coating, or chipping and discoloration of any finish is not covered.
  • High Lifter will ship the replacement product after the returned product has been inspected by High Lifter staff.
  • The warranty shall not include claims for damages, installation time or labor charges, economic losses, inconvenience, transportation, towing, down time, direct or indirect or consequential damages or delay resulting from any defect.
  • The warranty does not apply to products that have been improperly applied or improperly installed.
  • The warranty does not apply to products installed on vehicles used for ATV/UTV Racing.
VIEW MORE HERE
