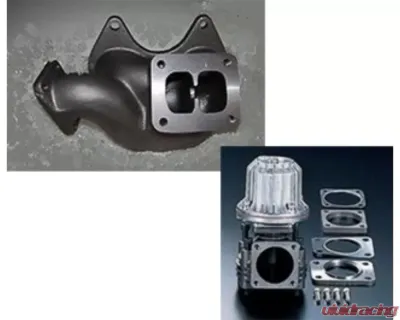

HKS FD3S 13B-Rew Special Wastegate - 14005-AZ001
HKS FD3S 13B-Rew Special Wastegate - 14005-AZ001 - Image 2 HKS FD3S 13B-Rew Special Wastegate - 14005-AZ001 - Image 2

HKS Full Turbine Kit - Model 14005-AZ001 for FD3S

When it comes to aftermarket performance parts, HKS is a name that stands out. Established in 1973 by Hasegawa, Kitagawa, and Sigma, HKS has been at the forefront of tuning engines and cars, delivering high-performance engine components and turbo kits that exceed OEM standards.

Key Features

  • Designed to fit perfectly with existing full turbine kits, maintaining the same installation size as conventional models.

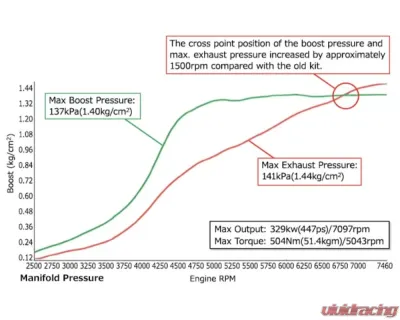

  • Enhanced exhaust manifold port shape significantly improves exhaust airflow to the wastegate, resulting in reduced exhaust pressure and stable boost pressure, even with new GTIII turbines.
  • Utilizes advanced casting materials for improved durability under high temperatures.
  • The included wastegate is both affordable and highly regarded in the performance community.
  • Customizable with self-fabricated pipes, allowing for a more engaging experience with large capacity turbine performance.

GTIII-4R Turbine Specifications

  • Model: GTIII-4R
  • Wastegate: External
  • Code No: 14001-AK033
  • Horsepower: 368-537 kW
  • Exhaust Housing:
    • Inlet Flange: TO4 2port
    • Outlet Flange: Coupling 99.1
    • A/R: 0.81
  • Turbine Wheel Diameter: 74.0 mm
  • Compressor Wheel:
    • Trim: 53
    • Outer Diameter: 85.0 mm
  • Compressor Housing:
    • Inlet Diameter: 100 mm
    • Outer Diameter: 70 mm
  • Boost Setting: 78.5 kPa - 107.9 kPa

Customer Insights

Users of the HKS Full Turbine Kit (14005-AZ001) for the FD3S have praised its seamless integration and performance improvements. Many have noted how the enhanced airflow and boost stability have transformed their driving experience, making it a favorite among enthusiasts looking to maximize their vehicle's potential.

Other Part Numbers:
HKS #hks14005-AZ001

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since its beginning, HKS has been committed to providing well-integrated, reliable,and environmentally sound performance systems. Mr. Hasegawa's strong leadership, engineering genius, creativity and willingness to listen to customers are the pillars of the company's success. Monitoring consumer reaction and input on issues pertaining to material quality, external appearance, sound quality, and of course, performance, HKS stays in tune with automotive enthusiasts' needs. Moreover, HKS' products are designed to be user friendly for easy installation.

Warranty for Exhaust System

HKS provides a warranty to the original purchaser of HKS exhaust systems against defects in materials and workmanship for a period of one year. The warranty applies only for vehicle specific exhaust systems. Other products such as metal catalyzers, front pipes, exhaust manifolds, and center pipes are not covered.
