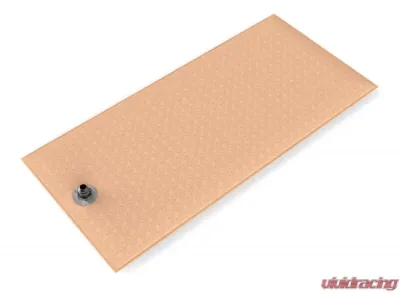

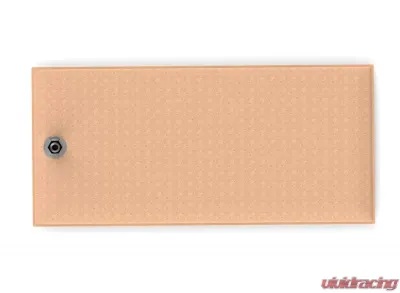

The incredible HydraMat® from Holley features a patent-pending design that addresses the challenges faced by traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're cornering hard, accelerating, stopping, or navigating inclines—especially with low fuel—fuel can shift away from the pick-up. This creates air pockets in the system, leading to poor engine performance and possible stalling. But worry not, the HydraMat is here to help!

What makes the HydraMat so special? It's all about surface tension and fluid wicking! This innovative technology allows the HydraMat to draw fuel from nearly any area that comes into contact with it, storing it in its internal reservoir. When a section of the mat is uncovered, the tiny pores seal off thanks to surface tension, keeping fuel contained while pulling from other areas where fuel is still present. With its impressive size and coverage, the HydraMat can extract fuel from virtually any part of the tank or cell, eliminating the need for specialized reservoirs and pick-up pumps—saving you both money and hassle.

HydraMats come in a variety of sizes and shapes, making it easy to find the perfect fit for your stock fuel tank or racing fuel cell.

• Instructions for Part# 12-924-1
• Brochure for Part# 12-924-1
• HydraMat Selector Guide for Part# 12-924-1
• Technical Bulletin for Part# 12-924-1
• Instructions for Part# 12-924
• Brochure for Part# 12-924
• HydraMat Selector Guide for Part# 12-924
• Technical Bulletin for Part# 12-924

• Patent-pending design that tackles the issues with traditional fuel pick-ups in both stock tanks and racing cells.
• Significantly reduces the chances of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that face fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel situations.
• Surface tension and fluid wicking enable the HydraMat to keep drawing fuel even when part of it is uncovered.
• When an area of the HydraMat is exposed, tiny pores seal off through surface tension, ensuring fuel is drawn from other parts of the mat where it's still available.
• The unique internal reservoir helps maintain fuel availability at the pick-up, even under extreme fuel slosh conditions.
• Eliminates the need for specialized reservoirs, sumps, and pick-up pumps, reducing costs and simplifying setup.
• Also functions as a 15-micron pre-filter, eliminating the need for a separate filter before the fuel pump.
• Can be easily folded and compressed for installation through various fuel cell openings.
• HydraMats are available in different sizes and shapes to accommodate a range of stock tanks and racing fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works with 2-cycle oil blends up to 20:1.
• Not suitable for most oils (see previous point for exceptions).
• Not for use with diesel fuels.

• Adapter AN Size: 10 AN Male
• Emission Code: 5
• Length: 30 inches
• Micron: 15
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 14 inches

• Fitting location designed for circle track use.
• Designed to fit flat-bottom rectangular fuel cells with minimum dimensions of 31" long and 15" wide.
• For optimal performance, return fuel should be discharged near the HydraMat pick-up, ideally at least 1 inch above the mat.
• Part 12-924 is not compatible with Diesel fuel, Methanol, or oils. Other part numbers with Methanol compatibility will be available soon.
