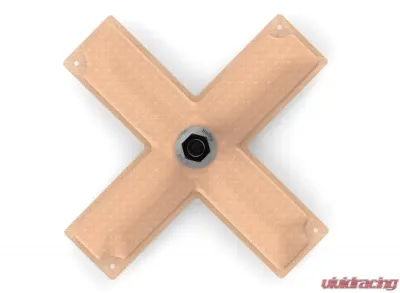

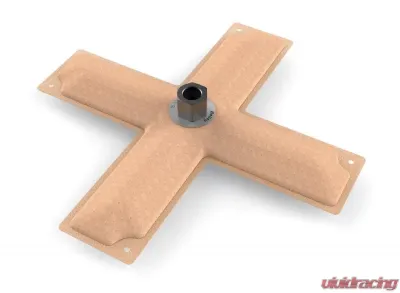

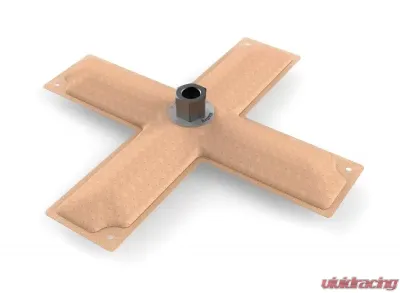

Introducing the Holley HydraMat® (11x11 Cross) - Center Out - 3/8 in NPSF

Meet the incredible HydraMat®—a game-changing innovation from Holley designed to tackle the challenges that come with traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're pushing your vehicle to the limit—whether it's during sharp turns, rapid acceleration, sudden stops, or driving on an incline—fuel can sometimes escape from the pick-up area. This can lead to air entering the system, which in turn can cause engine performance issues or even stalling. But with the HydraMat, you can say goodbye to those worries!

The secret lies in its unique surface tension and fluid wicking technology, which allows the HydraMat to draw fuel from nearly any area that comes into contact with it, storing it in its internal reservoir. When a part of the HydraMat is exposed, the tiny pores in the material seal off through surface tension, ensuring that fuel remains contained in the reservoir while drawing from other areas of the mat where fuel is still available. Thanks to its impressive size and coverage, the HydraMat can pull fuel from virtually any section of your tank or cell, eliminating the need for specialized reservoirs and pick-up pumps. This not only saves you money but also simplifies your setup!

The HydraMat comes in various sizes and shapes to perfectly fit a wide range of stock fuel tanks and racing fuel cells.

Important Downloads:

• Brochure for Part# 16-104
• Instructions for Part# 16-104
• HydraMat Selector Guide for Part #16-104
• Technical Bulletin for Part# 16-104

Features:

• Innovative design that addresses the issues with traditional fuel pick-ups in stock tanks and racing cells.
• Significantly reduces the risk of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that face fuel starvation during aggressive driving maneuvers or low fuel conditions.
• Thanks to its surface tension and fluid wicking capabilities, the HydraMat can keep drawing fuel even when part of it is uncovered.
• When a section of the HydraMat is exposed, the tiny pores seal off, ensuring fuel is drawn from other available areas.
• Its unique internal reservoir keeps fuel accessible at the pick-up, even during extreme fuel slosh.
• No need for specialized reservoirs, sumps, or pick-up pumps, simplifying your setup and cutting costs.
• Acts as a 15-micron pre-filter, eliminating the need for a separate filter before the fuel pump.
• Can be easily folded and compressed for installation through various fuel cell openings.
• Available in multiple sizes and shapes to suit different stock fuel tanks and racing fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works with 2-cycle oil blends up to 20:1.
• Not recommended for most oils (with noted exceptions) or diesel fuels.

Specifications:

• Emission Code: 5
• Fitting Size: 3/8" NPT
• Length: 11 inches
• Micron: 15
• Outlet: Center
• Product Type: HydraMats
• Warranty: Limited 90 Days
• Width: 11 inches

Notes:

• Designed to fit flat-bottom rectangular fuel cells with minimum dimensions of 11" long and 11" wide cross.
• For optimal performance, ensure the return fuel is discharged near the HydraMat pick-up—at least 1 inch above the mat.
• HydraMats with a female NPT thread do not require sealing paste or tape, as this could lead to fuel pump failure.
