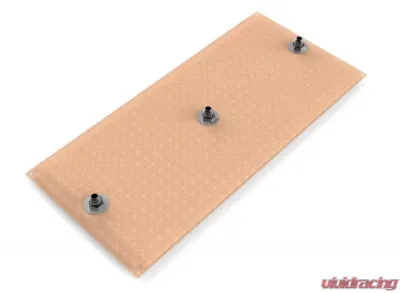

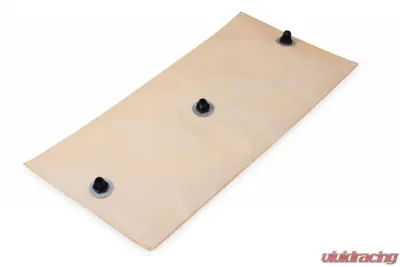

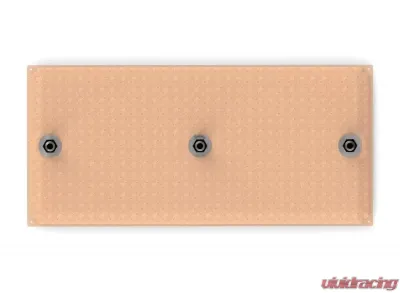

Introducing the incredible Holley HydraMat®! This innovative design is set to change the game when it comes to fuel pick-ups in both stock fuel tanks and racing fuel cells. If you've ever experienced issues during hard cornering, acceleration, or even when you're low on fuel, you know how frustrating it can be when fuel runs away from the pick-up. This can lead to air entering the system, which can cause poor engine performance or even stalling. But worry no more—HydraMat is here to save the day!

What makes HydraMat so special? It's all about surface tension and fluid wicking. This clever technology allows the HydraMat to draw fuel from nearly any area that touches it, storing it in an internal reservoir. When a section of the mat is uncovered, the tiny pores seal off due to surface tension, keeping fuel contained and drawing from other areas where fuel is still present. With its impressive size and coverage, HydraMat can pull fuel from virtually any part of the tank or cell, eliminating the need for costly specialty reservoirs and complex pick-up pumps.

HydraMats come in various sizes and shapes to fit a wide range of stock fuel tanks and racing fuel cells, making it a versatile choice for any setup.

• Brochure for Part# 16-110
• Instructions for Part# 16-110
• HydraMat Selector Guide for Part# 16-110
• Technical Bulletin for Part# 16-110

• Patent pending design that addresses the challenges of traditional fuel pick-ups in stock fuel tanks and racing fuel cells.
• Significantly reduces the risk of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that struggle with fuel starvation during sharp turns, acceleration, sudden stops, inclines, or low fuel levels.
• Thanks to surface tension and fluid wicking, the HydraMat continues to draw fuel even when part of it is exposed.
• When a section is uncovered, the tiny pores seal off, ensuring fuel is drawn from other areas where it's still available.
• The unique internal reservoir keeps fuel accessible at the pick-up, even during extreme fuel slosh conditions.
• No need for specialty reservoirs, sumps, or pick-up pumps, which saves you money and simplifies installation.
• Also serves as a 15-micron pre-filter, removing the need for a separate filter before the fuel pump.
• Can be easily folded and compressed for installation through various fuel cell openings.
• Available in multiple sizes and shapes to accommodate different stock fuel tanks and race fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works with 2-cycle oil blends up to a ratio of 20:1.
• Not suitable for most oils (with exceptions noted) and diesel fuels.

• Adapter AN Size: 10 AN Male
• Emission Code: 5
• Length: 30 inches
• Micron Rating: 15
• Outlet Configuration: Center/Side/Side
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 14 inches

• Fitting locations are designed for universal application.
• Designed to fit flat-bottom rectangular fuel cells with minimum dimensions of 30" long and 14" wide.
• For optimal performance, return fuel should be discharged near the pick-up of the HydraMat, ideally at least 1 inch above the mat.
