The incredible HydraMat® is Holley's innovative design that addresses the challenges faced with traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're cornering hard, accelerating, or stopping, or even when you're running low on fuel, the liquid tends to move away from the pick-up. This can introduce air into the system, leading to subpar engine performance or even stalling. But don’t worry, HydraMat is here to help!

What makes the HydraMat special? It’s all about surface tension and fluid wicking! This unique combination allows it to pull fuel from nearly any area that touches the liquid and store it in its internal reservoir. When part of the HydraMat is exposed, the tiny pores in the material seal off, thanks to surface tension. This means that fuel is kept in the reservoir and drawn from other parts of the mat where fuel is still available. The HydraMat's impressive size and coverage allow it to pull fuel from almost any spot in the tank or cell, eliminating the need for complex specialty reservoirs and pick-up pumps, which can save you money and simplify your setup.

HydraMats come in a variety of sizes and shapes to fit different stock fuel tanks and race fuel cells.

• Brochure for Part# 16-100
• Instructions for Part# 16-100
• HydraMat Selector Guide for Part# 16-100
• Technical Bulletin for Part# 16-100

• Patent pending design that effectively addresses the challenges of traditional fuel pick-ups in both stock fuel tanks and racing fuel cells.
• Significantly reduces the chances of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that face fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel situations.
• Thanks to surface tension and fluid wicking, the HydraMat continues to draw fuel even when part of it is uncovered.
• When an area of the HydraMat is exposed, tiny pores in the material seal off through surface tension, ensuring fuel is drawn from other areas where it’s still available.
• The unique internal reservoir keeps fuel accessible at the pick-up, even in extreme fuel slosh conditions.
• Eliminates the need for specialty reservoirs, sumps, and pick-up pumps, simplifying your setup and saving costs.
• Functions as a 15-micron pre-filter, meaning you won’t need a separate filter before the fuel pump.
• Can be easily folded and compressed for installation through various fuel cell openings.
• HydraMats are also available in different sizes and shapes to fit a range of stock fuel tanks and race fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E85 fuels.
• Works with 2-cycle oil blends up to 20:1.
• Not suitable for most oils (see previous point for exceptions).
• Not for use with diesel fuels.

• Emission Code: 5
• Fitting Size: 3/8" NPT
• Length: 15 inches
• Micron: 15
• Outlet: Center
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 15 inches

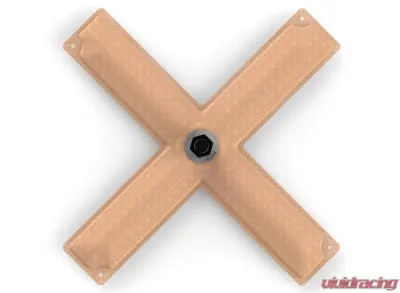

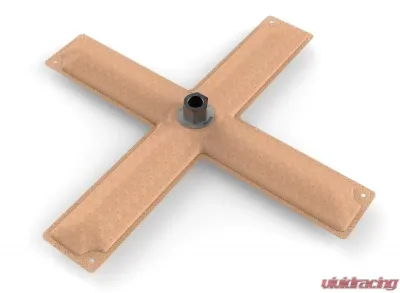

• Designed to fit flat bottom rectangular style fuel cells with minimum dimensions of 15" long and 15" wide cross.
• For optimal performance, the return fuel should be discharged near the pick-up of the HydraMat, at least 1 inch above the mat.
• HydraMats with a female NPT thread do not require sealing paste or tape, as using them could lead to fuel pump failure.
