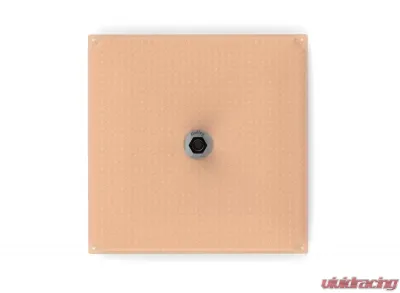

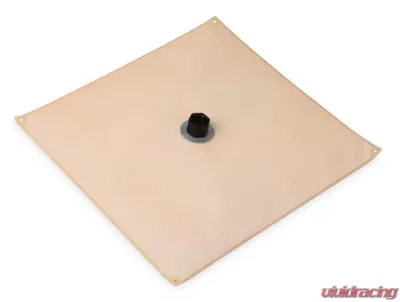

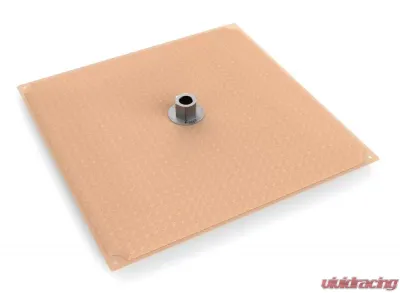

The innovative Holley HydraMat® is a game changer, designed to tackle the challenges that come with traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're pushing your vehicle to the limit with hard cornering, acceleration, sudden stops, or even when you're running low on fuel, it can be frustrating when the fuel shifts away from the pick-up. This can lead to air entering the system, which not only affects engine performance but can also cause stalling. The HydraMat is here to put an end to those worries!

What makes the HydraMat truly special are its unique properties of surface tension and fluid wicking. These features allow it to efficiently draw fuel from nearly any area that touches the fuel, storing it in its internal reservoir. When part of the HydraMat is exposed, tiny pores in the material seal off due to surface tension, ensuring that fuel stays contained in the reservoir while drawing from other areas of the mat where fuel is still available. With its impressive size and coverage, the HydraMat can pull fuel from virtually any spot in the tank or cell, eliminating the need for specialized reservoirs and pick-up pumps—saving you money and simplifying your setup.

The HydraMat comes in a variety of sizes and shapes, making it a perfect fit for different stock fuel tanks and racing fuel cells.

• Brochure for Part# 16-107
• Instructions for Part# 16-107
• HydraMat Selector Guide for Part #16-107
• Technical Bulletin for Part# 16-107

• Patented design that addresses issues with traditional fuel pick-ups in stock tanks and racing cells.
• Significantly reduces the risk of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that face fuel starvation during hard cornering, rapid acceleration, abrupt stops, inclines, and low fuel situations.
• Thanks to surface tension and fluid wicking, the HydraMat continues to draw fuel even when part of it is uncovered.
• When an area of the HydraMat is exposed, the tiny pores close off through surface tension, allowing fuel to be drawn from other areas where it's still accessible.
• The unique internal reservoir keeps fuel available at the pick-up, even during extreme fuel slosh conditions.
• Removes the need for specialty reservoirs, sumps, and pick-up pumps, saving you money and reducing complexity.
• Serves as a 15-micron pre-filter, eliminating the need for an additional filter before the fuel pump.
• Can be easily folded and compressed for straightforward installation through various fuel cell openings.
• Available in other sizes and shapes to accommodate a range of stock fuel tanks and race fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works well with 2-cycle oil blends up to 20:1.
• Not suitable for most oils (exceptions noted above).
• Not compatible with diesel fuels.

• Emission Code: 5
• Fitting Size: 1/2" NPT
• Length: 15 inches
• Micron: 15
• Outlet: Center
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 15 inches

• Designed to fit flat bottom rectangular-style fuel cells with minimum dimensions of 15" long and 15" wide.
• For optimal performance, the return fuel should be released near the pick-up of the HydraMat, at least 1 inch above the mat.
• HydraMats with a female NPT thread do not require sealing paste or tape, as these could lead to fuel pump failure.
