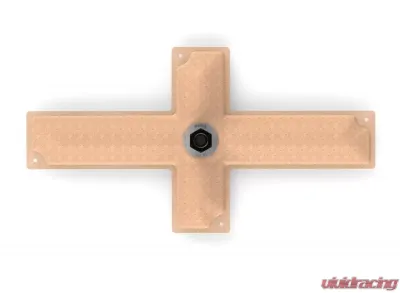

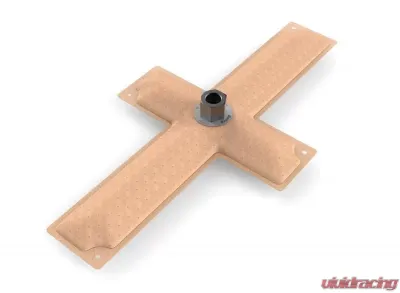

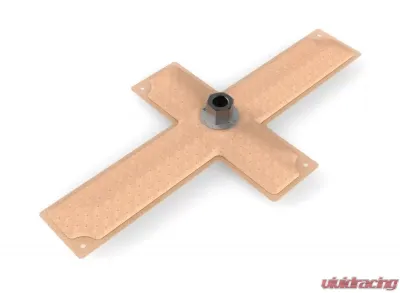

Introducing the innovative Holley HydraMat®! This unique, patent-pending design addresses the challenges posed by traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're cornering hard, accelerating, or even stopping, fuel can sometimes run away from the pick-up point, leading to air entering the system. This can cause frustrating engine performance issues or even stalling. But with the HydraMat, you can say goodbye to those worries!

The secret to the HydraMat's effectiveness lies in its surface tension and fluid wicking capabilities. This clever design allows it to draw fuel from almost any area that touches the fuel, storing it in its internal reservoir. As one part of the HydraMat becomes uncovered, the tiny pores in the material seal off, keeping fuel contained and drawing from other areas where fuel is still available. Thanks to its impressive size and coverage, the HydraMat can pull fuel from virtually any location within your tank or cell, eliminating the need for specialty reservoirs or pick-up pumps. This not only saves you money but also simplifies your setup.

The HydraMat comes in various sizes and shapes to fit a range of stock fuel tanks and racing fuel cells, ensuring you find the perfect fit for your setup.

• Brochure for Part# 16-101
• Instructions for Part# 16-101
• HydraMat Selector Guide for Part# 16-101
• Technical Bulletin for Part# 16-101

• Patent-pending design that addresses issues with traditional fuel pick-ups in stock tanks and racing cells.
• Significantly reduces the risk of air entering the fuel system, which can lead to poor engine performance or stalling.
• Ideal for vehicles that experience fuel starvation during hard cornering, acceleration, or low fuel situations.
• Surface tension and fluid wicking allow the HydraMat to draw fuel even when part of it is uncovered.
• When an area is uncovered, tiny pores seal off, ensuring fuel is drawn from other accessible areas of the mat.
• Unique internal reservoir keeps fuel available at the pick-up point, even under extreme conditions.
• Eliminates the need for specialty reservoirs, sumps, and pick-up pumps, saving you money and reducing complexity.
• Acts as a 15-micron pre-filter, removing the need for a separate filter before the fuel pump.
• Can be easily folded and compressed for installation through various fuel cell openings.
• Available in multiple sizes and shapes to fit different stock tanks and race fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works with 2-cycle oil blends up to 20:1.
• Not suitable for most oils (see previous point for exceptions).
• Not intended for use with diesel fuels.

• Emission Code: 5
• Fitting Size: 3/8" NPT
• Length: 15 inches
• Micron: 15
• Outlet: Center
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 8 inches

• Designed to fit flat bottom rectangular-style fuel cells with minimum dimensions of 15" long and 8" wide.
• For optimal performance, the return fuel should be discharged near the HydraMat pick-up, at least 1 inch above it.
• HydraMats with a female NPT thread do not require sealing paste or tape, as these could lead to fuel pump failure.
