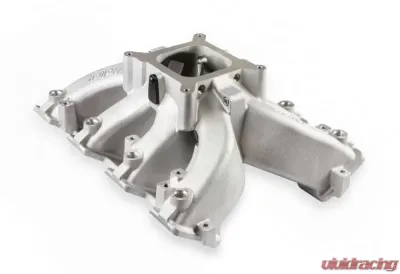

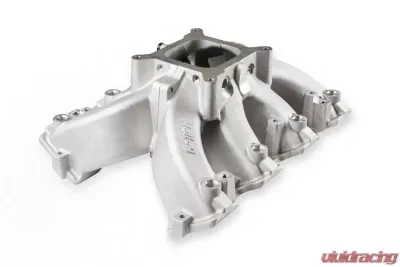

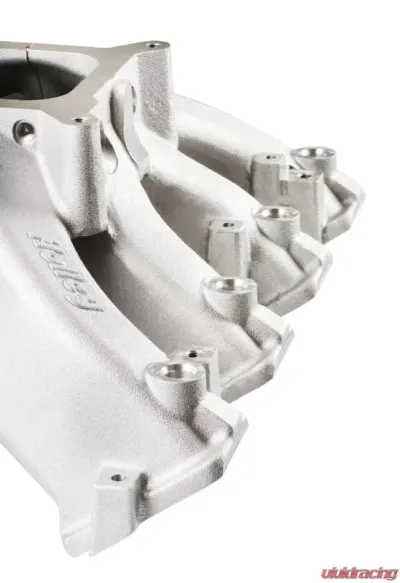

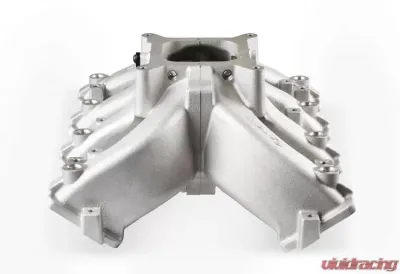

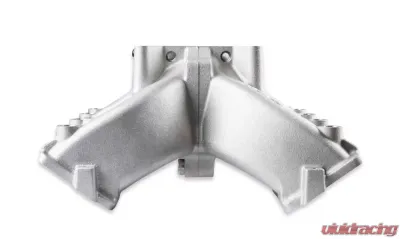

The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2 liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.
The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.
Technical Data:
??? A-B Height - 7.20" (0° carb flange angle)
??? Port Size- 2.59" Height x 1.28" Wide
??? Throttle Body Flange - Standard 4150 for up to 1-3/4" diameter throttle bores
??? As-Cast Runner Cross-Sectional Area - 4.5 in? at the runner entry tapered to 3.2 in? at the flange exit
Important Downloads:Features:
- Maximum performance race design with hood clearance consideration
- Lighter than other split race intakes
- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes
- Captured O-ring seals at head ports and split
- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange

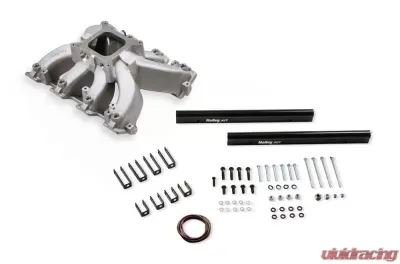

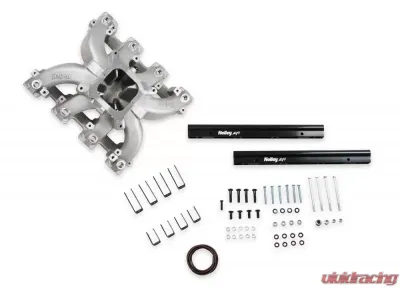

- Billet Fuel Rails and rail mounting hardware included.
- Barrels: 4
- Color: Silver
- Construction: Cast
- Emission Code: 3
- Engine: GM LS3/L92
- Finish: Satin
- Flange Style: 4150 Square Bore
- Front Height: 7.32"
- Fuel System Type: EFI
- Manifold Type: Split Single Plane
- Product Type: Manifold
- Rear Height: 7.32"
- RPM Power Band: 2500-7000
- Warranty: Limited 90 Day
- Two different length fuel rail bracket sets are included; the long brackets are for mounting the fuel rails at a height for Bosch style EV1 type fuel injectors. The short brackets are for mounting the fuel rails at a height for GM OE LS7 fuel injectors. When using the OE GM LS7 injector, the O-ring on the outlet (intake manifold) end of the injector must be changed to the O-ring supplied in the short bracket pack.
