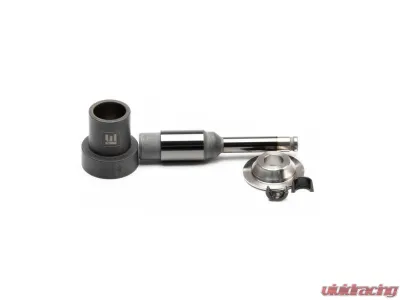

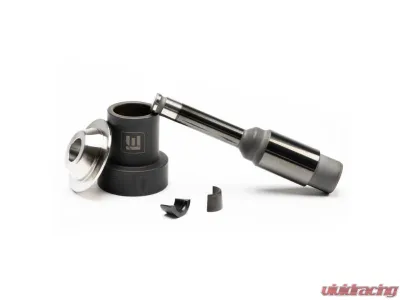

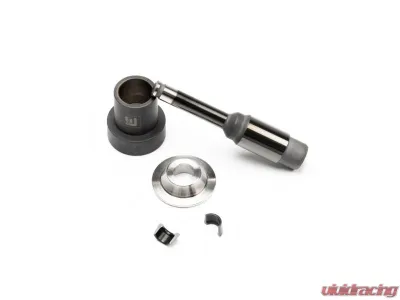

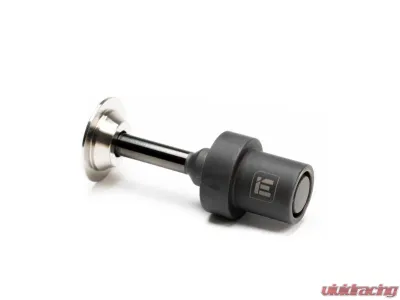

The IE HPFP Internal Kit upgrades the high pressure fuel pump in your Audi B9 3.0T or 2.9T engine with the largest volume possible piston and cylinder design to unlock fuel delivery for hybrid turbos and our Stage 1/2 Plus ECU tunes. Manufactured with top-quality components and an industry-leading QC process to ensure extreme reliability. Increase your fueling overhead and enjoy worry-free HPFP operation for your 6-cylinder turbocharged engine.

Your HPFP is an integral part of the B9 3.0T & 2.9T platforms direct injection (DI) system and provides exceptionally high-pressure fuel (exceeding 2900psi) to the injectors. When running turbo upgrades or ethanol fuel, the stock HPFP internal volume becomes the limiting factor when increasing power. IE's HPFP internals install into your factory pump housing and increase the bore and piston size of the pump internals, adding more flow, delivering more fuel, and safely allowing for higher horsepower & torque output.

IE HPFP Upgrade Internals offer the largest possible size within the B9 V6 pump body. The factory-installed 9.92mm internal pin has been enlarged to 11.68mm, increasing the stroke volume from 448mm^3 to 621mm^3. The result is a maximum gain of 38.58% more flow over stock!

Every piston and cylinder is CNC machined to exacting sizes, assembled, and measured as a matching set in-house. Tolerances are hand-verified using specialized measurement tools and verified down to 0.00005 of an inch to ensure reliability and proper function. These extreme manufacturing and QC processes have built IE's leading reputation in HPFP reliability and cemented our HPFP designs as the popular choice for those requiring a worry-free operation.

IE HPFP designs are verified and torture-tested on our fuel pump dyno. This machine can replicate countless miles and various RPM situations to substantiate every detail of the HPFP design. This strict engineering process, combined with our 100% in-house CNC machining, obsessed quality control, and top-shelf components, is why IE HPFP Kits have earned their reputation for reliability.

DLC (diamond-like carbon coating) is an advanced coating process applied to the tool steel pin. This coating reduces friciton by combinig increased hardness with low coefficient properties to providing excellent wear and a self-lubricating behavior that drastically extends pin life.

Our ultra-lightweight FEA-optimized titanium retainer reduces the chance of valve float while securing the factory spring to the new IE pump assembly. The internal kit is designed correctly for the factory spring rate, avoiding the need for a stiffer spring that adds unnecessary pressure and wear on the camshaft.

The HPFP cylinder is tortured with up to 10,500 strokes per minute with an extremely narrow tolerance and lubricated solely by fuel. To ensure durability, we have manufactured a tool steel cylinder featuring an advanced nitriding finish. This procedure infuses nitrogen atoms into the material's outer surface, greatly enhancing the surface hardness and wear resistance. Each nitride cylinder is independently verified for thickness and quality in a specialized laboratory.

Install Instructions: CLICK HERE!


Features:

• Highest possible flow - safely run ethanol & hybrid turbo ECU tunes
• In-house verified - Broken-in and bench tested on our pump dyno
• Tool steel pin & cylinder - Extreme resistance to heat and abrasion
• DLC-coated pin - Low friction long-life coating
• Nitrided cylinder - Increases hardness and wear resistance
• Titanium retainer - Ultra lightweight and high strength
• Engineered, designed, & manufactured in the USA

Fitment:

• Audi RS5 B9/B9.5 2.9T 2018-2024
• Audi S4 B9/B9.5 3.0T 2017-2024
• Audi S5 B9/B9.5 3.0T 2017-2024
• Audi SQ5 B9/B9.5 3.0T 2018-2024
