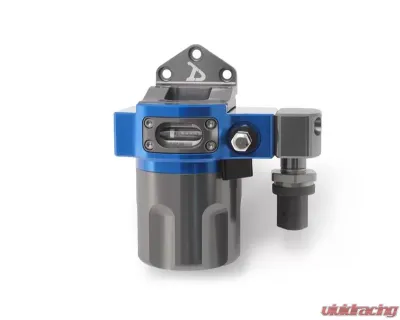

The ID F750 is the first performance filter designed to meet strict OE filter requirements, namely Bosch's specification for electronic fuel injectors. It is the result of substantial research invested in improving the service life of our injectors.
In addition to improved filtering, the ID F750 offers numerous features designed to increase performance and function.
Features:
- Nominal Flow Rate - 750 l/h @ 7.5 kPa (1.1psi) pressure drop. 1000 l/h at 13 kPa (1.9psi) pressure drop
- Maximum Fuel Pressure - 10.0 Bar (145.0 psi)
- Fuel Compatibility - Compatible with all known fuels
- Fluid Connection - SAE -8 O-ring barb
- Weight - 700g
Electronic fuel injectors are built to precise dimensions, measured in microns. The smallest of particles can increase wear, or even destroy a fuel injector. Bosch provides a specification for protection of electronic fuel injectors, which is a minimum capture efficiency of 87% at 5 microns, and 100% capture efficiency at 35 microns. This means that the filter will capture at least 87% of all particles 5 microns and larger, and 100% of all particles 35 micron and larger. The filter element in the ID F750 meets that specification, and does so without undue flow restriction.
Flow Restriction vs Contaminant Load
The ID F750 is designed to hold a high level of contaminant while maintaining low restriction to flow. This is accomplished with a highly efficient filter element, designed with low pressure drop in mind. At a flow rate of 750 liters per hour, the ID F750 will hold five grams of contaminant, the equivalent of approximately one teaspoon before requiring replacement. Higher flow rates are possible, but will require more frequent filter changes, depending on the cleanliness of your fuel system.
Delta P Indicator
Delta P is short for delta pressure, which is the difference in pressure between two points. In this case, those two points are the inlet and outlet of the filter. The Delta P indicator gives a visual indication of the condition of the serviceable filter element, so that it can be replaced before it becomes a problem.
Spin on Housing With Safety Latch
The spin on filter housing features a safety latch to ensure that the housing can not spin off, should it loosen. It is easily released with one finger, and emits an audible click during assembly.
Pressure Relief and Drain
The ID F750 includes a standard Schrader valve and an o-ring sealed spin on barb which actuates the needle. This valve can be used for pressure monitoring, draining the system, or relieving pressure for filter changes.
Modular Mounting Bracket
The modular design allows for numerous mounting options, from the standard 90°, straight, and reverse 90°, to roll bar tube mount brackets, and everything in-between. Custom brackets can also be provided for application specific fitment.
Optional Pressure and Temperature Sensor Block
The plug and play pressure and temperature sensor features a Bosch Motorsport 10 bar (145 psi) pressure sensor, with integral -40 to 140°C (-40 to 284°F) temperature sensor. It installs with two screws, and adds 30 mm to the overall width. Due to its compact size, it can be added to most systems without need for re-plumbing.
Install Instructions:
- For Instructions CLICK HERE
- Universal
Other Part Numbers:
Injector Dynamics #idx920-08-08-2
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Injector Dynamics is a strategic alliance between Yaw Power Products and T1 Race Development. It was created to bring Yaw Power’s dynamic injector characterization technology to the consumer public. Previously this service was only available to tuners in the high-end racing industry.
Injector Dynamics prides itself on offering the best fuel injectors on the market. The company backs this claim by providing data and technology that is unmatched by anyone else in the industry. Injector Dynamics is changing the aftermarket injector industry and bringing race technology to the masses. It is globally recognized for manufacturing superior quality fuel injectors and delivering quality solutions to the market.
Accomplishments of Injector DynamicsTechnology is more than just a buzzword for Injector Dynamics; it’s the means to increase power, improve drivability, and simplify the tuning process. What’s more, technology has taken Injector Dynamics from carbureted gas guzzlers to 1,000-horsepower daily drivers.
Injector Dynamics is proud of its position as the technological leader and proud of its ability to function at the same high level as automakers. To date, Injector Dynamics is the only motorsport injector supplier providing emissions-compliant high-flow injectors to OE manufacturers. Namely, it supplies the twin-turbo Noble M600, which meets strict European emissions specifications.
Why Choose Injector Dynamics?Injector Dynamics is the only supplier to have earned the title of authorized technical partner with the largest automotive supplier in the world, Bosch Motorsport. Its partnership with Bosch serves as a testament to Injector Dynamics’ technical capabilities and commitment to high quality, as very few have earned this distinction. Vehicles equipped with Injector Dynamics’ products have set countless records and won hundreds of championships.
Injector Dynamics is dedicated to taking the quality of its products to the next level by applying the latest cutting-edge technology. Its fuel injectors introduce a full range of innovative features that have become the standard for tuners, car builders, and enthusiasts worldwide. They are designed for off-road motorsport use and deliver incredible performance all around. The company boasts several fuel injector options that meet the requirements of each engine.
Find Injector Dynamics at Vivid RacingIf you are looking to upgrade your vehicle's fuel injectors, look no further. Vivid Racing carries a wide range of products from Injector Dynamics, including fuel injectors and adaptors, for a variety of vehicle applications. If you have any questions regarding the products listed above, please do not hesitate to call our expert parts team at (480) 966-3040.
The warranty period is 1 year from the date of original purchase, and covers manufacturer defects. In order to have the expected longevity with any aftermarket injector, the customer must use the proper type of fuel and filtration in the fuel system. Failure to do so will decrease longevity, reliability, and fuel flow. Instances where the customer has failed to take the proper measures or ignored warnings about fuel types and maintenance will not be covered under warranty.
