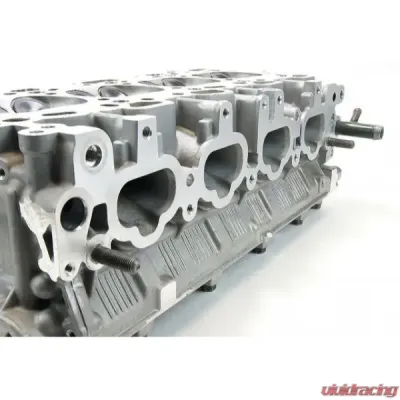

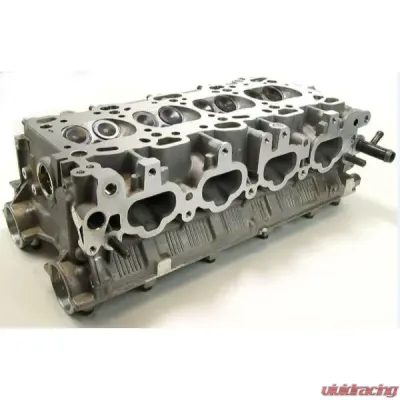

MAPerformance Stage 3 Cylinder Head Preparation Mitsubishi Evo 8/9 4G63 2003-2006 - MAP EVO-CHS-S3
MAPerformance Stage 3 Cylinder Head Preparation Mitsubishi Evo 8/9 4G63 2003-2006 - MAP EVO-CHS-S3 - Image 5 MAPerformance Stage 3 Cylinder Head Preparation Mitsubishi Evo 8/9 4G63 2003-2006 - MAP EVO-CHS-S3 - Image 2 MAPerformance Stage 3 Cylinder Head Preparation Mitsubishi Evo 8/9 4G63 2003-2006 - MAP EVO-CHS-S3 - Image 3 MAPerformance Stage 3 Cylinder Head Preparation Mitsubishi Evo 8/9 4G63 2003-2006 - MAP EVO-CHS-S3 - Image 4 MAPerformance Stage 3 Cylinder Head Preparation Mitsubishi Evo 8/9 4G63 2003-2006 - MAP EVO-CHS-S3 - Image 5

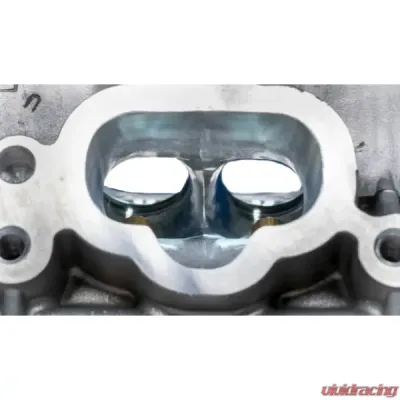

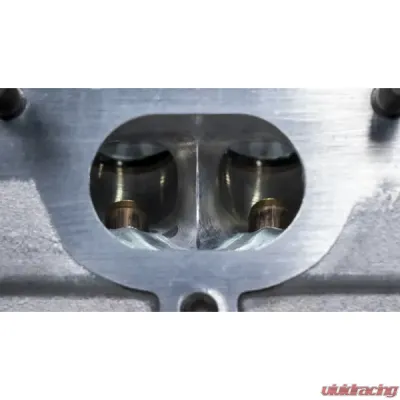

The MAP Stage 3 service porting & polishing service starts with cleaning up the casting flash in both the intake and exhaust ports, improving bowl-to-seat blending, and unifying all of the ports to ensure even flow to each cylinder. Then we take it one step further with additional shaping of the bowls for even more airflow. Combine this with our world-class machine work and you've got what we feel is the absolute best street/strip cylinder head on the market!

Why Choose MAP Machining Services?
  • We utilize a Serdi seat and guide machine that provides us with some of the industry's finest valve jobs. We not only cut seats for the non-performance market but have also designed Specific cutters that we use in all our modern 4-valve heads. Every head is also vacuum-checked after each seat is cut to ensure that no head leaves with a poor sealing valve. We would then typically set and adjust the installed valve tip height to our Specs to ensure proper valve train geometry is maintained.
  • We also have a resurfacing machine that provides a superior RA, or finishes, on both cast and aluminum blocks and heads, which is crucial for proper head gasket sealing in modern engines. Ours uses the CBN cutters and provides a superior finish to the older, multi-cutter systems that many shops still use.
This service requires you to send in your core

Included Services
  • Clean/Hot Tank
  • Visual Evaluation/InSpection
  • Deck Resurface to High-Performance RA Specs

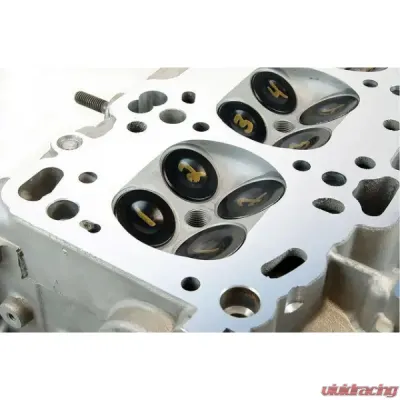

  • Proprietary MAP 5 Angle Radius Valve Job
  • MAP Stage 3 Porting/Polishing
  • Final Assembly
  • Outbound Shipping
Included Valvetrain Components
  • Kiggly Springs and Retainers
  • Supertech Valve Seals
  • Ferrea Valves
  • Mitsubishi Valve Locks
  • MAP Stud and Nut Kit
What's in the box?
  • 1- Stage 3 Cylinder Head Service


Fitment:
  • Mitsubishi Evo 8/9 4G63 2003-2006
