Mishimoto Intercooler Only
$887.95
Free Shipping

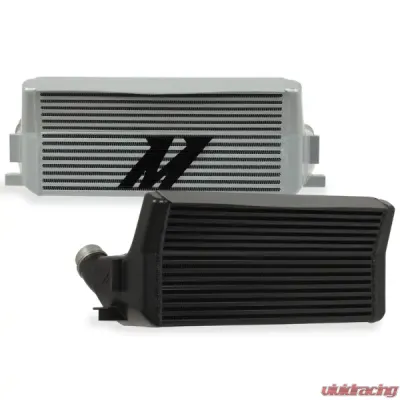

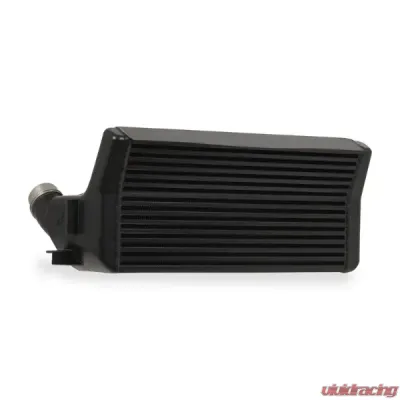

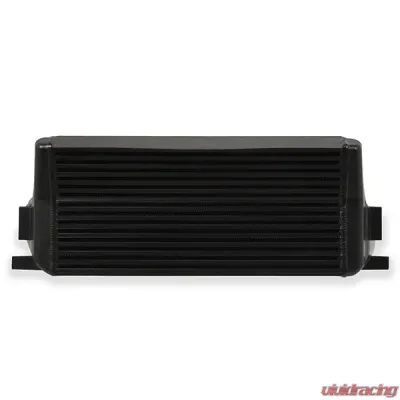

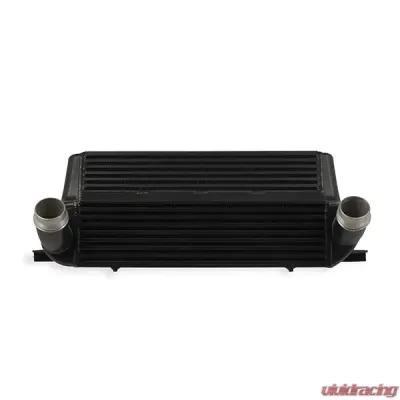

Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune. Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis Our unique 6 thick step-core design, adds a 115 angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction optimizing this intercooler for heat dissipation with minimal pressure drop. Coupled together, our features were able to drop intercooler outlet temperatures by 45F, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in Silver or Black and also includes the Mishimoto Lifetime Warranty.

Purchase Includes:
  • (1) Performance Intercooler
  • Mishimoto Lifetime Warranty


Features:
  • 6in thick, angled step-core design optimized for maximum flow without fully obstructing other heat e
  • Direct fit for the 2012-2016 BMW F22/F30 Chassis
  • Drops intercooler outlet temperature by 45 F on stock tuning
  • Max power gains of 10 whp and 8 wtq on stock tuning
  • Mishimoto Lifetime Warranty


Specifications:
  • Label: Black
  • Core Thickness (in): 6
  • Core Type: Bar-and-Plate
  • Inlet (in): 2
  • Outlet (in): 2
  • Weight (lbs): 28


Fitment:
  • BMW 228i Base 2014-2016
  • BMW 228i xDrive Base 2015-2016
  • BMW 320i Base 2013-2016
  • BMW 320i xDrive Base 2013-2016
  • BMW 328d Base 2014-2016
  • BMW 328d xDrive Base 2014-2016
  • BMW 328i Base 2012-2016
  • BMW 328i GT xDrive Base 2014-2016
  • BMW 328i xDrive Base 2013-2016
  • BMW 335i Base 2012-2015
  • BMW 335i GT xDrive Base 2014-2016
  • BMW 335i xDrive Base 2012-2015
  • BMW 335is Base 2012-2013
  • BMW 428i Base 2014-2016
  • BMW 428i Gran Coupe Base 2015-2016
  • BMW 428i xDrive Base 2014-2016
  • BMW 428i xDrive Gran Coupe Base 2015-2016
  • BMW 435i Base 2014-2016
  • BMW 435i Gran Coupe Base 2015-2016
  • BMW 435i xDrive Base 2014-2016
  • BMW 435i xDrive Gran Coupe Base 2015-2016
  • BMW M2 Base 2016-2018
  • BMW M235i Base 2014-2016
  • BMW M235i xDrive Base 2015-2016
  • Chassis Codes: F22/F23/F30/F31/F32/F33/F34/F87
  • Engine Codes: N20/N26/N47/N55


Note:
  • 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Other Part Numbers:
Mishimoto #misMMINT-F30-12BK
