Off-Road Reinvented

Since 2008, Morimoto has been dedicated to crafting top-notch lighting upgrades for the automotive aftermarket. We consistently roll out products that are all about performance, reliability, and a fit and style that’s second to none. The 2Banger is a proud continuation of that tradition. Our entire off-road lineup has truly shaken up the industry, prompting the old players to step up their game. The all-new, patent-pending 2Banger Off-Road LED Pods have been thoughtfully designed, engineered, and rigorously tested right here in the USA, and they’re truly a game changer.

Form Meets Function

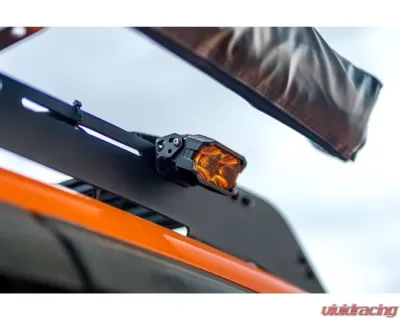

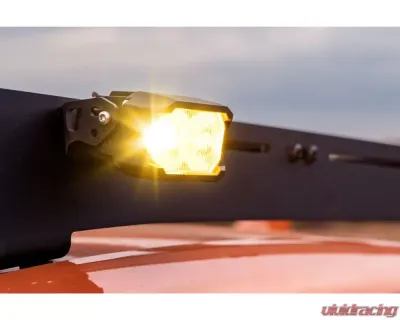

The 2Banger boasts an impressively compact design, making it the ideal choice for adding extra light in tight spots where full-size pods just won’t fit. Each set of Morimoto 2Banger LED pods comes with adjustable pedestal mounts for universal fitment. Plus, we offer a range of application-specific mounting bracket kits for racks and A-Pillars, ensuring a bolt-on experience for many of today’s most popular trucks. Be sure to check out our full lineup for details on what’s available for your vehicle.

Performance

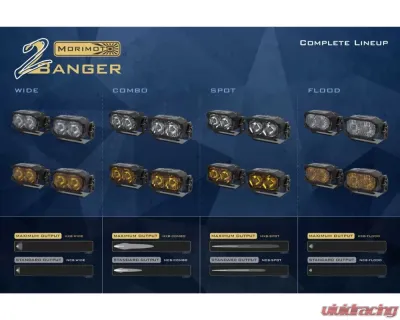

Forget about generic parts stuffed into a fancy housing. Every aspect of the 2Banger is proprietary. We used LucidShape to fine-tune performance around the latest, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers’white or yellow output’and four distinct beam patterns (Wide/Fog, Spot, Combo, and Flood), there’s a 2Banger that fits every performance need and driving style.

Versatility

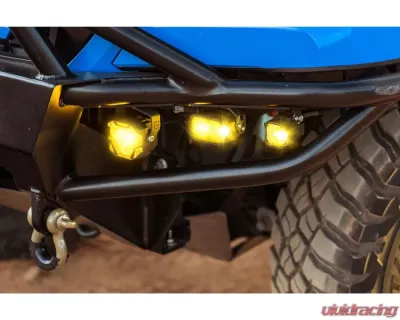

You can mount the 2Banger on its own or link multiple units together to create a powerful light bar. Each set of pods includes universal pedestal mounts for a hassle-free installation on any flat surface, like your steel bumper or the wide array of application-specific A-Pillar brackets we provide. The BangerBar links offer a simple way to connect your Bangers into a custom light bar, where you choose the light color, beam optics, and radius. Then, you can conquer the darkness!

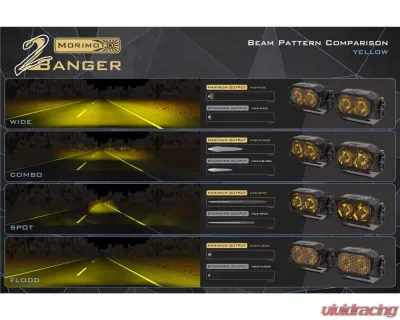

HXB Wide Beam

This beam illuminates the ground right in front of your vehicle. The 2Banger Wide beam optics feature dual-axis control for width and active hot spot control, projecting peak intensity right along the top of the beam pattern. It meets the latest SAE F regulation for safe and legal use as a fog light on public roads, delivering an unmatched combination of width and intensity’making it the top choice for off-road and on-road use.

All Weather

The white-output version is perfect for general visibility, while the yellow-output variant excels in challenging conditions like rain, snow, or fog. We’ve chosen phosphor-converted yellow LEDs that produce yellow light at the source, ensuring optimal performance in less-than-ideal weather. This approach surpasses the common practice of filtering white light through a yellow lens, which often sacrifices performance.

Reliability

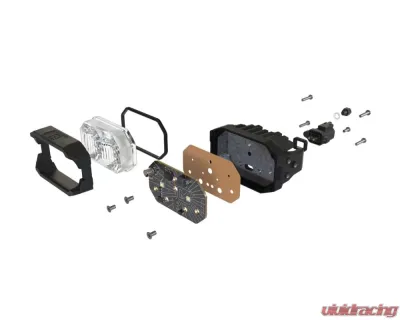

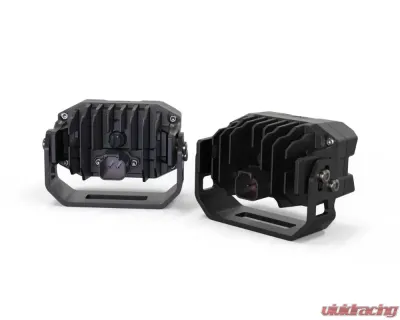

With great power comes great responsibility, and we’ve put in extensive effort to ensure the 2Banger is built to last. High power generates high heat, which is why we’ve integrated a copper DTP (direct thermal path) PCB for optimal heat transfer to the radiator, refined through multiple rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to prevent flaking. Our gasket system, integrated DT power connection, and breather valves are all designed to IP69K standards, offering full weather resistance.

Street Legality

When aimed correctly, the Spot and Combo beam patterns comply with SAE J581 standards for auxiliary high beams. If you’re in the market for a high-performance, street-legal LED pod to use as a fog light, the 2Banger wide beam model has been verified for compliance with the latest SAE-F regulation for on-road use by Calcoast Labs in California.

Power Up

The Morimoto 2Banger LED Pods are designed from the ground up to set a new standard in their category, and the optional wire harness follows suit. If you want the best, you’ve found it. Every component on the harness has been meticulously crafted without cutting corners for cost or simplicity. It features a triple-sealed proprietary 4-pin relay with hanger, a proprietary over-molded inline fuse holder with a 20A mini fuse, DT06-2S female outputs with dual seals, stainless steel power and ground terminals, and a proprietary M-Spec push button switch with a yellow LED backlight.

What is Included

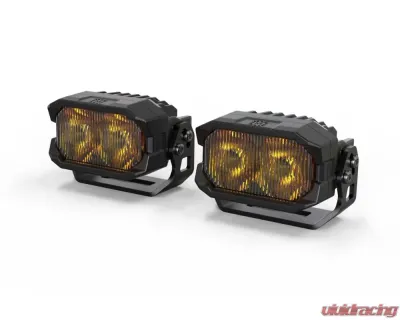

• LED Pods: 2x (One Pair) Morimoto 2Banger HXB SAE Wide (Yellow)

Specifications

• Intensity: 8,400 Cd (Fully Saturated) (84 lux at 10m)
• Peak Lumenosity (lm)(raw): 2,000 lm
• Input: Integrated Deutsch DT 2-Pin
• Input Voltage: 9-18V DC
• Power: 24.0w
• Current: 1.78A at 13.5V DC
• Dimensions: 81mm W, 49.8mm H, 59.2mm D
• Light Source: 2x Osram HX Boost (5700K)
• IP RATING: IP69K (Dust / High Pressure Water Resistant)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Fitment

• Universal: With Included U Brackets
• Ford F-150 2015-2020 (with BAF013 and BAF038)
• Ford F-150 2007-2014 (with BAF020 and BAF037)
• Ford Raptor 2017-2020 (with BAF024 and BAF038)
• Ford Super Duty 2017-2021 (with BAF013 and BAF039)
• Ford Super Duty 1999-2016 (with BAF021 and BAF040)
• Toyota 4Runner 2010+ (With BAF014 and BAF027)
• Toyota Tacoma 2005-2013 (with BAF019 and BAF029)
• Tacoma 2014-2021 (with BAF014 and BAF028)
• Toyota Tundra 2007-2013 (with BAF019 and BAF030)
