Introducing the 5202 2Stroke 4.0 LED Bulb
Get ready to transform your driving experience with the innovative 5202 2Stroke 4.0 LED Bulb! After a year of dedicated research and development, we've crafted a bulb that truly enhances clarity and safety on the road. The 2Stroke 4.0 features exceptional beam quality, mirroring the original optics pattern while minimizing glare for oncoming drivers. With its sleek 1.45mm emission surface and advanced PCB technology, you can count on optimal performance every time you hit the road. Enjoy precise beam distribution, ensuring each journey is secure and brightly lit. Plus, its adjustable base fits a variety of reflectors, and the built-in cooling system promises longevity, even in the toughest conditions. Upgrade today and light up your travels with confidence!
Benchmark Performance
While others in the industry may have been resting on their laurels, Morimoto has been busy creating the next generation of LED bulbs. The 2Stroke 4.0 effectively replicates the original beam pattern from your vehicle's optics, delivering more light to the road while reducing glare for oncoming traffic. Although LED bulbs aren't DOT approved for use in headlights in the U.S., those in foreign markets and fog light users can take advantage of the best plug-and-play LED bulb available’ the 2Stroke 4.0, featuring patented technology from Morimoto.
Superior Beam Quality
With its advanced Aluminum Nitride Ceramic circuit board, the 2Stroke 4.0 produces an incredibly precise beam pattern. The emission surface interval of just 1.45mm is a game-changer; for context, the tungsten filament in a halogen bulb is 1.4mm, while the previous record for LED bulbs was 2.0mm set by the 2Stroke 3.0. By utilizing this industry-first ceramic PCB, we've eliminated the need for a dielectric layer and separate thermal elements, resulting in unmatched performance in both reflector and projector-based headlights designed for halogen bulbs.
Optimized Focal Length
Every bulb in the 2Stroke 4.0 lineup has been meticulously optimized for its specific application. The critical reference distance is calculated based on the bulb base's geometry and the footprint of the Osram HJL531 emitter. To ensure quality, we've designed special tools that monitor the accuracy of each bulb as it rolls off the production line. Unlike other LED bulbs that use a one-size-fits-all approach, the 2Stroke series guarantees optimal focus in every situation.
360 Degrees of Rotation

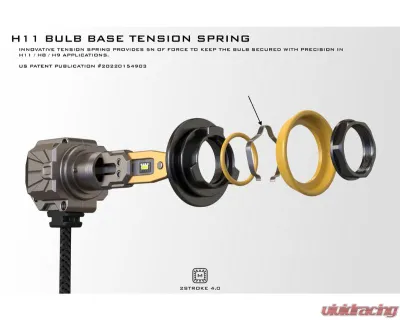

Because there's no universal standard for headlights and fog lights, all bulbs in the 2Stroke 4.0 range are fully adjustable. You can easily position the LED chips to sit perfectly at the 3 and 9-o-clock positions. We've improved the locking mechanism, ensuring that the gears on the base won't slip during installation. Setting up your bulbs has never been easier!
Thermal Management
The 2Stroke 4.0 features an upgraded version of our patented cooling system first introduced with the 3.0 bulbs. This innovative system utilizes a 12,000-rpm dual-layer fan to draw cool air into the bulb while expelling warm air back into the housing. The cold air intake passes by the PCB sidewall for optimal heat exchange, effectively cooling the bulb while raising the ambient temperature inside the housing. This design helps prevent snow and ice buildup on the lens during winter months. With superior static pressure compared to its predecessor, the cooling system on the 2Stroke 4.0 maximizes bulb longevity while offering unique benefits in bad weather.
Unique Drive Logic
The LED drivers are programmed to start at a conservative 18W, gradually ramping up to 22.5W over the first 15 minutes. Unlike other aftermarket bulbs that lose intensity during this initial warm-up period, the 2Stroke 4.0 maintains impressive performance from the moment you leave your driveway until you park your car.
Lifetime Warranty
Crafted from top-notch OE-grade materials, electronics, and LEDs, the Morimoto 2Stroke 4.0 bulbs are built to last. With conservative LED drive rates and an efficient thermal management system, these bulbs operate at low temperatures. That’s why we confidently back them with an industry-leading lifetime warranty.
Features
- Designed & Engineered: Created by Morimoto in California, the 2Stroke 4.0 is filled with patented, innovative features that outshine any other bulb on the market.
- Perfect Focus: Thanks to the ceramic PCB and Osram HJL LEDs, the road is illuminated effectively, with zero glare for oncoming traffic.
- Heat Exchanger: This system cools the bulb while warming the ambient temperature inside the housing, helping to prevent snow and ice from accumulating on the lens during winter.
- Lifetime Warranty: Built with OE-grade materials, these bulbs are designed for durability and come with an industry-leading lifetime warranty.
Technical Specifications
- Luminous Flux: 2,600lm
- Power: 18-22.5W
- Input Voltage: 9V-16V DC
- Material: Electroplated Aluminum
- Current: 1.5-1.88A @ 12V DC
- Light Source: Osram Oslon Black Flat S 5500K (Pure White)
Compatibility
- BASE/FITMENT: 5202

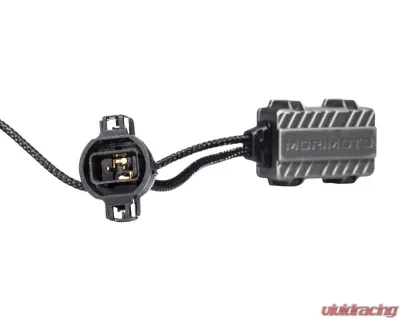

- Do I need PWM / Anti-Flicker Modules?: When using in Fog Lights: Unlikely.
- With low beams that double as Daytime Running Light: Likely.
- With high beams that double as Daytime Running Light: Likely.
- When the vehicle is a late model American (Chrysler, Dodge, Jeep, Ford, GM): Likely.
Install Instructions
- For Instructions CLICK HERE
