Designed specifically to function seamlessly with our MB3025 Jeep JK/JKU Back Half Kit, this aluminum fuel cell system simply bolts in place and makes the process of building a fully custom Jeep JK/JKU easy and fast. Our complete fuel tank system was expertly designed using the latest in 3D CAD technology to ensure a perfect fit. (ONLY FITS THE MOTOBILT JK/JKU BACK HALF FRAME KIT. IT WILL NOT FIT A FACTORY FRAME.)

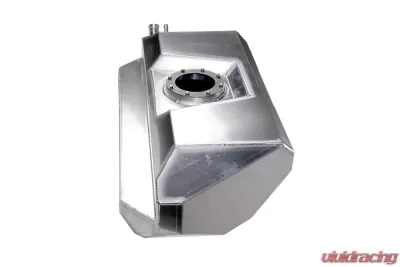

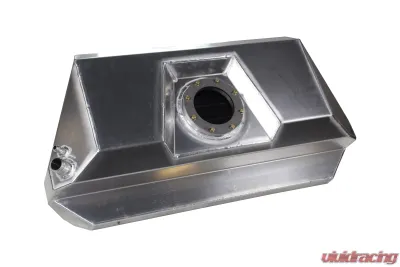

The 20.9 Gallon (79 liter) capacity tank is constructed from 1/8 Inch aluminum that is precision CNC laser cut and accurately CNC press brake formed. The formed aluminum tank is professionally TIG welded and includes a CNC machined fuel pump mount which features an o-ring groove engineered for the factory Jeep JK/JKU fuel pump seal (Mopar 55366298AA sold separately) for fuel tight and leak free connection.
We've also included CNC machined aluminum bungs for the fuel filler and fuel filler vent. The tank accepts your factory Jeep JK/JKU fuel pump assembly (Mopar 68065575AC sold separately).
The front side of tank and skid plate features a recess which is engineered to clearance your differential cover for larger axles under full suspension compression. The rear of the skid plate is angled to increase your departure angle.
The aluminum tank is separated from contacting the steel skid by 1/8 Inch thick neoprene rubber which dampens vibrations, prevents galvanic corrosion between dissimilar metals and eliminates rubbing, scratches and rattling. We also include three (3) bolt-on rubber bumpers at the rear of the tank which simply bolt into preinstalled threaded bungs on our MB3025 JK/JKU Back Half Kit. These rubber bumpers act as a cushion and eliminate vibration and rattling.

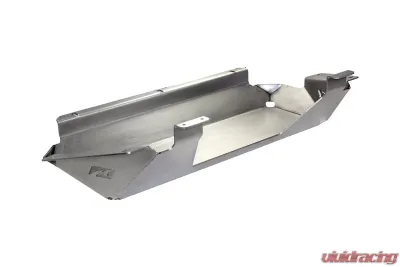

The heavy duty 100 percent American made high strength steel skid plate protects your aluminum tank from rocks and trail abuse. The skid plate features weep holes on all four corners to allow mud and debris to be flushed.
Weight: 80lbs
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Motobilt was founded in 2012 by offroading pioneer, Dan DuBose and is located at Ozark, Alabama. The company specializes in creating aftermarket parts for various offroad vehicles and Jeeps. They have consistently provided high-quality products. Hence, they have become the brand of choice by multiple offroaders worldwide.
Proudly made in the USAAll of Motobilt’s products are made in the USA. With more than 40 professionals working in their 85,000 square foot facility, the company is able to maintain and control their high-quality standards and provide their customers with the best value for their money.
Making Use of Advanced TechnologyThe company uses state-of-the-art technology in creating their products such as Laser Cutters, Press brake forming, CNC machines, Tube Benders, MIG and TIG welding machines, and more. They utilize the latest 3D CAD Software to create precise and accurate designs that fit perfectly in the vehicle.
Their products are made out of the best raw materials available in the market. This helps in making their product strong and durable that it can handle the toughest terrain encountered during off-roading.
Purchase Motobilt Products at Vivid RacingIf you want to turn your vehicle into a reliable offroading machine, you need parts designed for the occasion and Motobilt is the brand for you. They offer suspension parts, bumpers, stiffeners, chassis reinforcement parts, billet products, and other offroad accessories. If you want a brand that you can depend on, then you came to the right place. Visit Vivid Racing and check out their list of products that would fit your specific needs.
