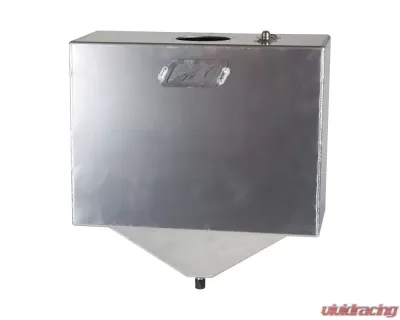

The main compartment of the tank has an internal baffle to keep the fuel from moving around too much and more importantly hold the fuel long enough to feed the bottom sump in the tank. The top of the tank has a d-ring style 12 bolt filler neck.
Aftermarket 12 bolt style remote fillers can be used with this tank. The top of the tank has an NPT threaded bung and roll over vent. Also you'll notice that there is a -6AN fitting for the return fuel line. The fuel pick up located at the bottom of the tank is also a -6AN fitting. Fittings to connect to your fuel system are not included.
The Motobilt Rock Crawler Fuel Cell holds approximately 12.5 gallons. We kept this tank small and narrow to keep the bottom sump fuel of fuel. The fuel cell is ideal for rock buggies, competition rock crawlers and trail riding vehicles.
The tank was designed using the latest in 3D CAD technology. The tank is made in house at Motobilt utilizing our fiber laser and CNC press brakes. The tank is laser cut from 1/8 inch thick aluminum and TIG welded.

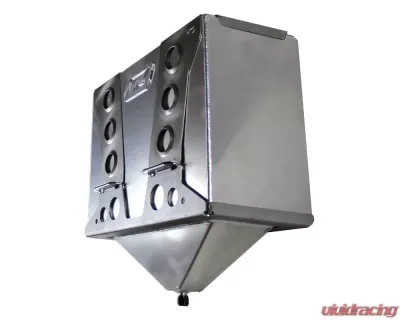

We use have go through different alloys for base material and filler rod and have the right combination to not crack. We warranty the tank against manufacturing defect and cracking when using the purpose built Motobilt mount. The mount is fabricated from 11ga steel for the base and 16ga steel for the top straps. The top straps come with dimple die holes for added strength and looks.
Mounting the fuel cell can be done a many different ways. Under the tank we have laser cut bolt holes the installed could countersink and bolt in. We chose to make the base with 11ga steel so brackets could be welded to it.
Features:
- Rock Crawler Fuel Cell
- 15.5 inch from top of mount to bottom of the 11ga steel mount at top of the sump
- 20 inch from the top of the tank to the bottom of the sump not including the -AN fitting
- 20.626 to the outside width of the main base of the fuel cell mount
- 9.75 inch front to back not including the bolt flanges
- For Off-Road use only
