MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD
MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 7 MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 2 MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 3 MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 4 MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 5 MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 6 MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in. - 8623-MSD - Image 7

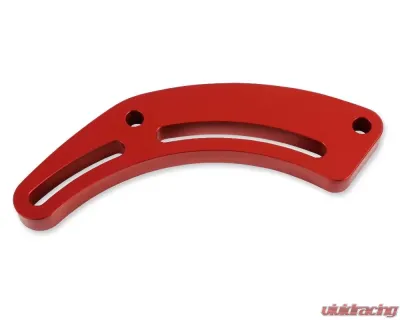

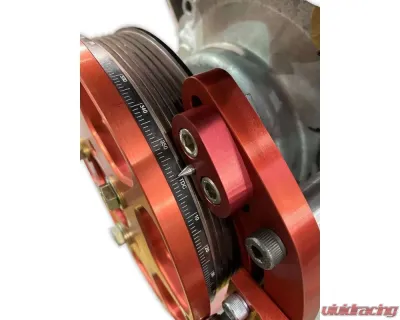

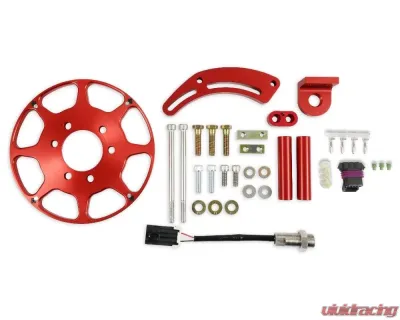

Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high-performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system/ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high-quality timing pointer and the use of a direct bolt-on, degreed balancer (ATI 917302 or 918852), you'll be able to adjust timing in the precise increments required for your LS Engine.

On some vehicles, the MSD Crank Trigger Kit may require slight modifications to accommodate special engine plates, pulley systems, etc.

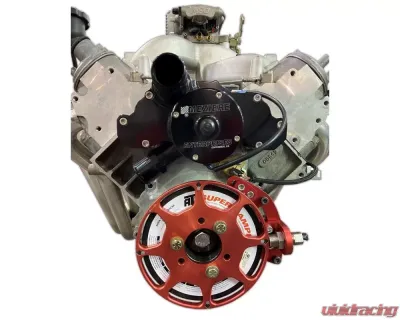

This kit is designed to be used with the ATI Harmonic Balancer 917302 or 918852 but is also compatible with 917264 and 917242. Also compatible with Meziere water pump WP333 and LSX Blocks.

Features:
  • Most accurate way to trigger your electronic fuel injection (EFI)

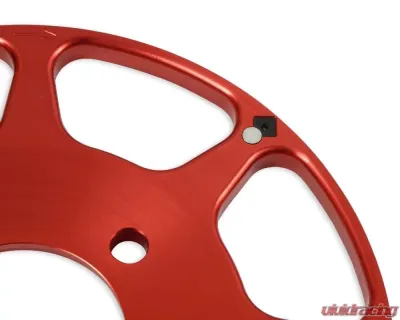

  • Powerful magnets embedded in a 3/8?? thick billet 6061-T6 aluminum trigger wheel
  • 3-wire Hall-Effect Sensor that is not easily susceptible to EMI/RFI Interference
  • Allows precise indexing by utilizing the 10 degree range on included timing pointer
  • Easy to install much like traditional MSD Crank Trigger Kits (use with ATI Balancer 917302 or 918852 but is also compatible with 917264 and 917242)
  • Rigid mounting that will not flex and cause timing fluctuation
Specifications:
  • Brand: MSD
  • Color: Red
  • Diameter: 8 in.
  • Engine: GM Gen III/IV (LS)
  • Make: Chevrolet
  • Operating Voltage: 5-20 Volts
  • Product Type: Crank Trigger Kit
  • Sensor Type: Hall Effect
  • Warranty: Limited 1 Year Warranty

Other Part Numbers:
MSD Ignition #MSD-8623-MSD

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
