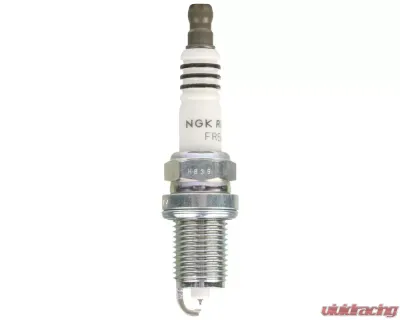

NGK Ruthenium HX Spark Plug Box of 4 (FR5BHX) - 96457
NGK Ruthenium HX Spark Plug Box of 4 (FR5BHX) - 96457 - Image 2 NGK Ruthenium HX Spark Plug Box of 4 (FR5BHX) - 96457 - Image 2
NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.

NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for today's modern vehicles. NGK's patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy.

Features:

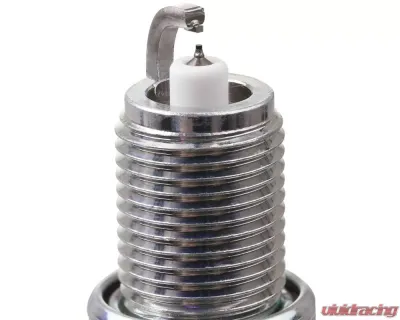

  • High Ignitability Projected Square Platinum Electrode Design: Combines 0.6 millimeter ruthenium center with a unique cut-back PSPE ground electrode
  • Ruthenium Alloy Center Electrode: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
  • PSPE Design: Projected square platinum electrode shape of the ground electrode provides the best ignitability and service life for high heat engines
  • Solid Copper Core: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • Trivalent Metal Plating: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • Recommended Usage: Modern vehicles using OE PSPE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
Specifications:
  • Stock Number: 96457
  • Part Number: FR5BHX
  • Resistance: 5000
  • Ground Electrode Tip Design: Projected Square Platinum Electrode - High Ignitability
  • Ground Configuration: Standard
  • Ground Electrode Core Material: Copper
  • Electrical Terminal Type: Non-Removable Nut
  • Center Electrode Core Material: Copper
  • Center Electrode Tip Material: Ruthenium
  • Gap Size: .044
  • Ground Electrode Quantity: 1
  • Hex Size: 5/8
  • Insulator Height: 50.50
  • Manufacturer Heat Range: 5
  • Seat Type: Flat
  • Reach: .75
  • Thread Diameter: 14.00

Other Part Numbers:
NGK Spark Plugs #ngk96457
NGK Spark Plugs #FR5BHX

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

NGK Spark Plugs Banner

Who is NGK?

NGK is an automotive parts company that was founded in 1936. The company has been in the automotive industry for more than 80 years and they specialize in creating original factory parts to aftermarket automotive parts for a variety of vehicles. Today, the company is widely recognized as the industry leader when it comes to ignition system parts and is trusted by enthusiasts and professional mechanics all over the world.

Reaching the Far Corners of the Globe

NGK has become a global brand is practically visible all over the globe. They have facilities based in the USA, Mexico, Canada, the United Kingdom, Finland, France, Germany, Italy, Poland, Russia, Spain, Turkey, South Africa, and Brazil.

The company utilizes the industry's most advanced manufacturing facility. It houses hi-tech tools that help them create parts that are accurate and precise.

Due to their reputation as a company that provides top quality products, automotive companies have partnered with them to be the leading ignition system supplier. The company's drive to continuously innovate itself and its products has helped the automotive industry move forward.

Purchase NGK at Vivid Racing

If you are in search of high-quality spark plugs, oxygen sensors, and high tension wires that would not leave you hanging on the road, then NGK is the brand for you. With decades of experience under them their belts, you know that they are a company that you could put your trust into. Visit Vivid Racing and check out all their list of products that will fit your specific needs and vehicles.
