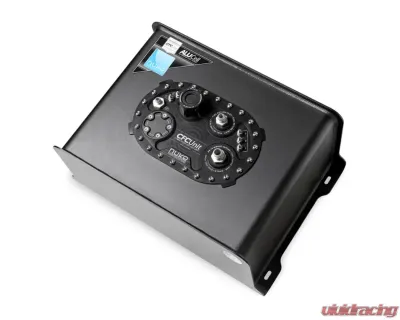

Nuke Performance AluCell Fuel Cell 10.6 Gallon/40L with CFC Unit Low Profile - 150-07-041

Nuke Performance AluCell Fuel Cell 40L with CFC Unit

The Nuke Performance AluCell Fuel Cell (Part #: 150-07-041) is engineered for automotive enthusiasts seeking a lightweight and efficient fuel storage solution. This 40-liter (10.56 gallons) aluminum fuel cell integrates seamlessly with the Nuke Performance CFC Unit, providing a compact option for both carbureted and fuel-injected applications.

Key Features

  • Capacity: 40 liters (10.56 gallons)
  • Material: High-quality aluminum, compatible with gasoline, methanol, ethanol, and E85
  • Integrated 2.0 liter surge tank function to eliminate the need for an external surge tank
  • Single oversized AN-10 ORB outlet for optimal fuel flow
  • Low-profile design with integrated roll-over valve for safety
  • Integrated mounting brackets for straightforward installation
  • Compatible with both single and dual high-pressure fuel pumps

Included Components

  • 1 x AluCell Aluminum Fuel Cell (40-liter)
  • 1 x Nuke Performance CFC Unit - low profile version
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug for single high-pressure fuel pump use
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
  • 1 x Low profile filler cap (remote fill neck available as an accessory)
  • 1 x Dual billet fuel pump bracket with adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
  • 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers

Specifications

  • AluCell Dimensions:
    • Length: 555mm (21.85")
    • Depth: 377mm (14.84")
    • Height: 251mm (9.88")
    • Weight: 9050g (19.95lb) including CFC Unit
  • Nuke Performance CFC Unit Specifications:
    • Part #: 150-05-201
    • Minimum mounting depth: 219mm (8.62")
    • Mounting bolt pattern: 6x10" (24-bolt pattern)
    • High-pressure pump connectors: 3 (max 125 amp each)
    • Pickup pump connectors: 2 (max 125 amp each)
    • Length: 295mm (13.74")
    • Width: 194mm (9.88")
    • Weight: 1934g (68.21oz)
    • Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
    • Outlet port: AN-10 ORB thread
    • Return port: AN-8 ORB thread
    • Vent valve: AN-8 (3/4 UNF) thread

This fuel cell is designed for motorsport applications and is an excellent choice for those looking to enhance their vehicle's performance without the requirement for FIA approval. With its robust construction and thoughtful design, the Nuke Performance AluCell Fuel Cell is a reliable solution for serious automotive enthusiasts.
