Nuke Performance ATL Saver Cell Fuel Cell 150-08-405

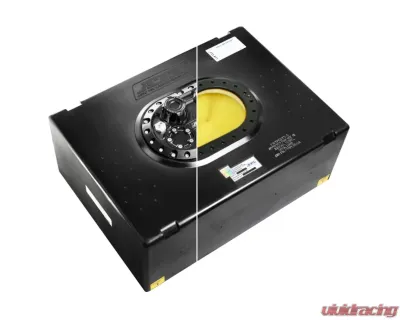

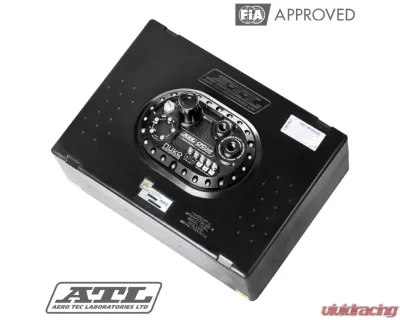

The Nuke Performance ATL Saver Cell Fuel Cell, part number 150-08-405, is engineered for serious motorsports enthusiasts seeking a high-performance fuel storage solution. This fuel cell holds up to 40 liters (10.6 gallons) and is crafted from a robust, FIA FT3-1999 approved plastic alloy, ensuring durability and safety under racing conditions.
Key Features
- FIA FT3-1999 approved for compliance with major racing standards

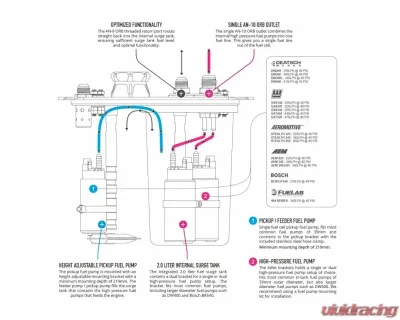

- Integrated 2-liter fuel surge tank functionality
- Full foam baffling for optimal fuel management with petrol and E85
- Compatible with single or dual high-pressure fuel pumps
- New high-profile CFC Unit designed for seamless integration with ATL fuel cells
- Low-profile fuel filler cap equipped with an integrated roll-over valve
- AN-10 ORB outlet and AN-8 ORB return ports for flexible plumbing options
Included Components
- 1 x ATL Saver Cell (40L capacity)
- 1 x Nuke Performance CFC Unit (ATL version)
- 2 x 1/4" BSPP to Male barb 8mm hose fittings
- 1 x 1/4" BSPP plug for single pump setups
- 2 x 39mm inserts for high-pressure fuel pump bracket
- 1 x Viton gasket compatible with alcoholic fuels
- 1 x Low-profile filler cap (remote fill neck available as an accessory)
- 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
- 1 x AN-8 (3/4 UNF) to AN-6 Male roll-over vent valve
- 1 x FLS spacer for asymmetrical bolt pattern fuel level senders
Specifications
ATL Saver Cell
- Part Number: 150-08-405
- Dimensions: Length 505mm (19.88"), Depth 305mm (12.00"), Height 223mm (8.78")
- Fuel Capacity: 40 liters (10.6 gallons)

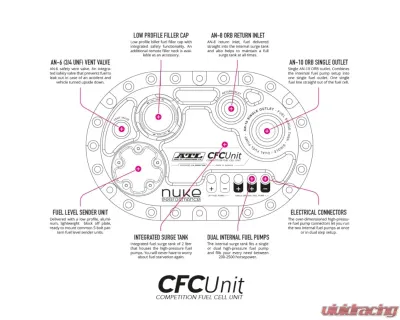

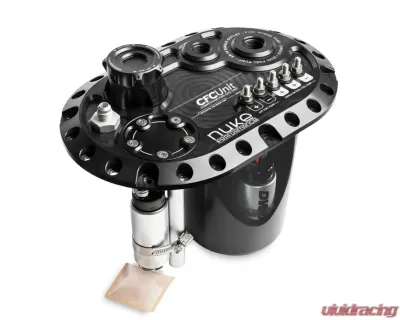

Nuke Performance CFC Unit
- Included CFC Unit Part #: 150-05-203
- Minimum Mounting Depth: 197mm (7.75")
- Mounting Bolt Pattern: 6x10" 24-bolt pattern
- High-Pressure Fuel Pump Connectors: 3 (max 125 amp each)
- Pickup Fuel Pump Connectors: 2 (max 125 amp each)
- Dimensions: Length 295mm (13.74"), Width 194mm (9.88")
- Weight: 2254g (4.96lb)
- Fuel Compatibility: Gasoline, Methanol, Ethanol, E85
- Internal Surge Tank Volume: Approximately 2.0 liters (0.53 gallons)
- Outlet Port Thread: AN-10 ORB
- Return Port Thread: AN-8 ORB
- Vent Valve Thread: AN-8 (3/4 UNF)
Installation Notes
- No modifications are required for installing the new high-profile version of the Nuke Performance CFC Unit with the ATL Saver Cell.
- The CFC Unit is supplied without fuel pumps; you can select your preferred fuel pumps from our available options.
