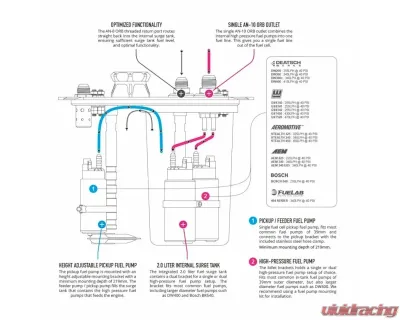

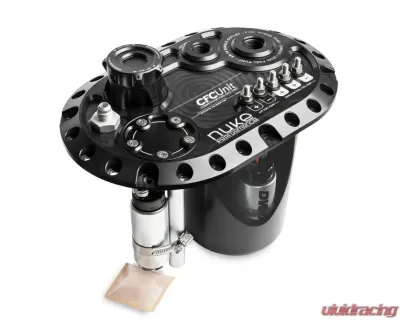

The well-known Saver Cells, constructed from a unique, tough plastic alloy, in combination with the Nuke Performance CFC Unit - drop-in fuel pump hanger with integrated surge tank functionality. Safe and easy, this is the optimal "all in one" solution for all motorsports applications.
The ATL Saver Cells are suitable for use with carburetor-based fuel systems and with the integrated high-profile CFC Unit from Nuke Performance, which eliminates the need for an external surge tank which is other needed when running a fuel cell, it is a perfect use for fuel injected systems. Our selection of saver cells comes with yellow foam for petrol and E85.
Features:

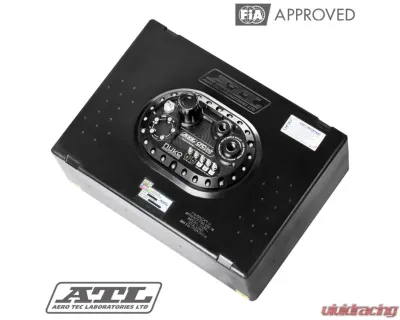

- FIA FT3-1999 approved fuel cell
- Available in several sizes, for all needs
- Integrated 2 liter Fuel Surge Tank function

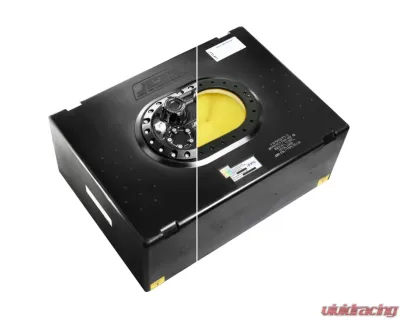

- Full foam baffling for petrol and E85
- Fits single or dual high-pressure fuel pumps

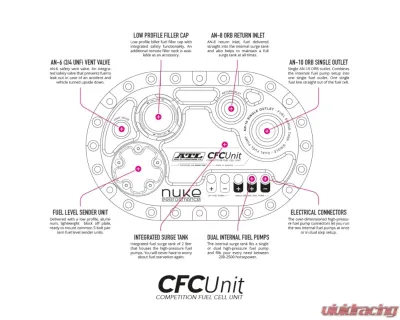

- New high-profile CFC Unit that fits all ATL fuel cells
- Low-profile fuel filler cap with integrated roll-over valve
- AN-10 ORB outlet/AN-8 ORB return
Includes:
- 1 x ATL Saver Cell fuel cell of selected size
- 1 x Nuke Performance CFC Unit - ATL version
- 2 x 1/4" BSPP to Male barb 8mm hose fittings
- 1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
- 2 x 39mm inserts for high-pressure fuel pump bracket
- 1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
- 1 x Low profile filler cap (remote fill neck available as accessory)
- 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
- x AN-8 (3/4 UNF) to AN-6 Male roll-over vent valve
- 1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
ATL Saver Cell Specifications:
- 30 liter Saver Cell Part #: 150-08-304
- Length: 505mm (19.88")
- Depth: 305mm (12.00")
- Height: 223mm (8.78")
- Weight: N/A, including ATL CFC Unit
- Fuel capacity: 30-liter (7.92 gallons)
- Container Part #: 150-SA-AA-041
- Included CFC Unit Part #: 150-05-203
- Minimum mounting depth: 197mm (7.75")
- Mounting bolt pattern: 6x10" 24-bolt pattern
- High-pressure fuel pump connector: x 3 (max 125 ampere/each)
- - Connector points: 6 mm bolt connectors
- Pickup fuel pump connector: x 2 (max 125 ampere/each)
- - Connector points: 6 mm bolt connectors
- Length: 295mm (13.74")
- Width: 194mm (9.88")
- Weight: 2254g (4.96lb)
- For motorsports use: YES
- Fits number of lift fuel pumps: 1 x brushed fuel pump
- Fits number of high-pressure pumps: 1-2 x brushed fuel pump
- Fuel compatibility: Gasoline, Methanol, Ethanol, E85
- Fits additional venturi lift kit: NO
- Internal surge tank volume Approximately 2.0 liter (0.53 gallons)
- Outlet port, thread: AN-10 ORB
- Return port, thread: AN-8 ORB
- Vent valve, thread: AN-8 (3/4 UNF)
Note:
- No modifications to the fuel cell are needed for the installation of the new high-profile version of the Nuke Performance CFC Unit.
- The CFC Unit is delivered without fuel pumps, if needed you select the preferred fuel pumps in our selection menu.
