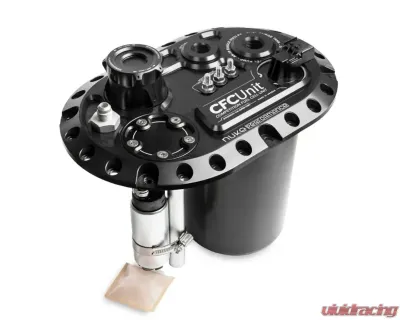

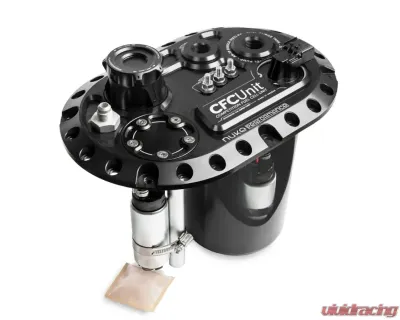

Nuke Performance CFC Unit - Part #150-05-204

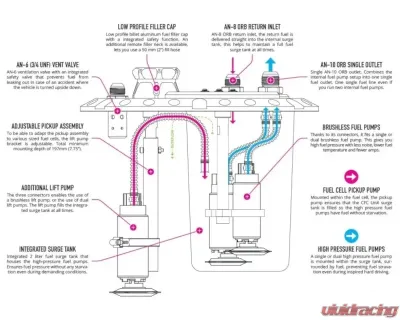

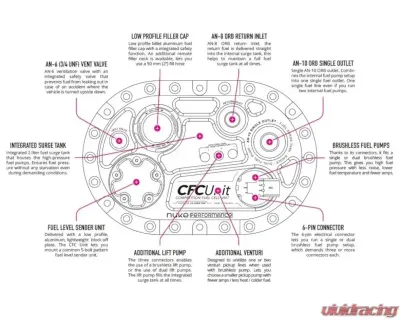

The Nuke Performance CFC Unit is engineered specifically for use with brushless fuel pumps, such as the Protec Cobra Compact and Deatschwerks DW440. This unit integrates a fuel surge tank and pump hanger, providing a streamlined solution for fuel-injected systems.
Designed to eliminate the need for an external surge tank, the CFC Unit is particularly beneficial when paired with aftermarket fuel cells. It effectively prevents fuel starvation during high-demand scenarios, making it an essential component for motorsport applications. The innovative design accommodates the installation of brushless fuel pumps, and includes provisions for venturi pickup points, ensuring optimal fuel delivery even at low fuel levels.
Key Features

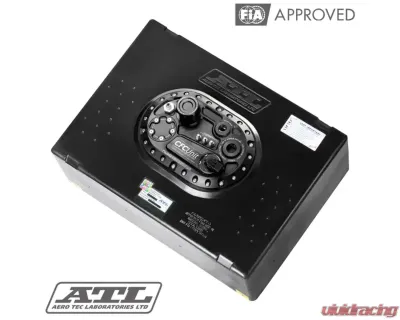

- Compatible with standard aftermarket fuel cells
- Supports brushless fuel pumps with additional venturi pickup
- Lightweight “drop-in surge tank” design
- Integrated 2.0-liter fuel surge tank functionality
- Single AN-10 ORB outlet for straightforward installation
- Compatible with all fuel types, including ethanol
Included Components
- 1 x Nuke Performance CFC Unit (high profile version for brushless fuel pumps)
- 1 x Delphi 6-pin bulkhead connector with Viton O-ring seal
- 2 x Female electrical connectors (6 connection pins each)
- 2 x 1/4" BSPP to Male barb 8mm hose fittings
- 1 x 1/4" BSPP plug for single high-pressure pump use
- 2 x 39mm inserts for high-pressure fuel pump bracket
- 2 x 42mm inserts for high-pressure fuel pump bracket
- 1 x Viton gasket for 24-bolt pattern fuel cells (compatible with alcoholic fuels)
- 1 x Low profile filler cap (remote fill neck available as an accessory)
- 1 x Dual billet fuel pump bracket with adjustable pickup mount
- 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
- 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
- 24 x 1/4-28 UNF x 1 bolts with nylon washers
Specifications
- High profile CFC Unit Part #: 150-05-204
- Minimum mounting depth: 197mm (7.75")
- Mounting bolt pattern: 6x10" 24-bolt pattern
- High-pressure fuel pump connector: 6-pin bulkhead connector
- Connector points: 6 (max 30 ampere each)
- Pickup fuel pump connector: 6 mm bolt connector
- Connector points: 3 (max 125 ampere each)
- Length: 295mm (13.74")
- Width: 194mm (9.88")
- Weight: 2254g (4.96lb)
- Supports 1 x brushless fuel pump (or 2 x brushed)
- Supports 2 x brushless high-pressure pumps
- Fuel compatibility: Gasoline, Methanol, Ethanol, E85
- Accommodates 1-2 additional venturi lift kits
- Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
- Outlet port thread: AN-10 ORB
- Return port thread: AN-8 ORB
- Vent valve thread: AN-8 (3/4 UNF)
- Vent valve fitting included: AN-8 (3/4 UNF) to AN-6 Male
- Designed for motorsport use
Installation Notes
- No modifications required for installation
- Fuel pumps are not included with the CFC Unit
