Nuke Performance Competition Fuel Cell Unit - Part #150-05-203

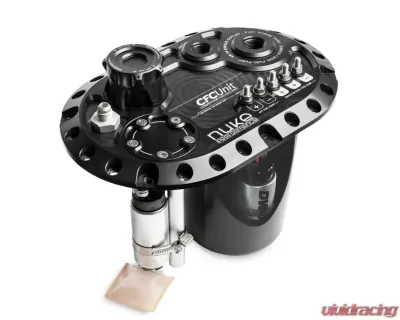

The Nuke Performance Competition Fuel Cell Unit (CFC Unit) is engineered specifically for use with ATL and Fuel Safe fuel cells, providing a compact and efficient solution for high-performance applications. This unit integrates a fuel surge tank and fuel pump hanger, making it an ideal choice for automotive enthusiasts focused on serious builds for racing, time attack, drifting, and other motorsport events. The design effectively eliminates fuel starvation, ensuring consistent fuel delivery during high-demand situations.

Key Features

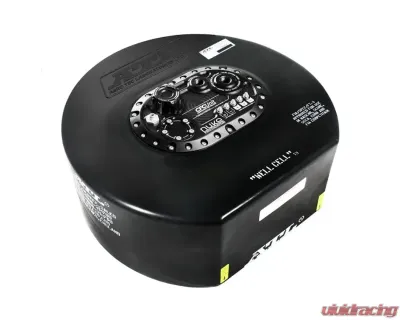

• Designed to fit standard aftermarket fuel cells
• Lightweight drop-in surge tank configuration
• Integrated 2-liter fuel surge tank functionality
• Single AN-10 ORB outlet for straightforward installation

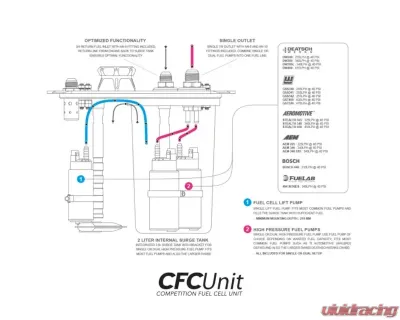

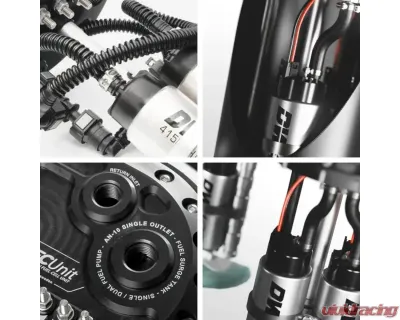

• Compatible with single or dual high-pressure fuel pumps

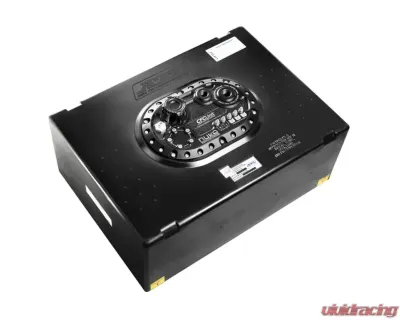

• High-profile design accommodates most ATL fuel cells

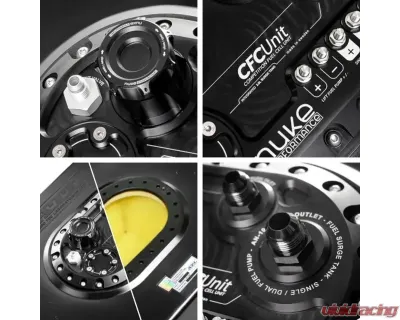

• Low-profile fuel filler cap with integrated roll-over valve
• Compatible with all fuel types, including ethanol

Included Components

• 1 x Nuke Performance CFC Unit - high profile version (for ATL fuel cells)
• 5 x 6mm (M6) electrical connection points
• 2 x 1/4" BSPP to Male barb 8 mm hose fittings
• 1 x 1/4" BSPP plug (for single high-pressure fuel pump setup)
• 1 x Viton gasket for 24-bolt pattern fuel cells (suitable for alcoholic fuels)
• 1 x Low-profile filler cap (remote fill neck available as an accessory)
• 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
• 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
• 1 x FLS spacer for non-symmetrical bolt pattern fuel level senders

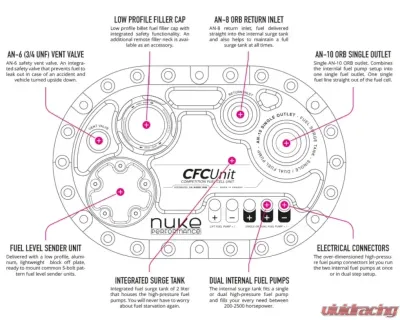

Specifications

• Part Number: 150-05-203
• Minimum Mounting Depth: 197mm (7.75")
• Mounting Bolt Pattern: 6x10" 24-bolt pattern
• High-Pressure Fuel Pump Connector: 6mm x 3 (max 125 amperes each)
• Pickup Fuel Pump Connector: 6mm x 2 (max 125 amperes each)
• Dimensions: Length - 295mm (13.74"), Width - 194mm (9.88")
• Weight: 2254g (4.96lb)
• Number of Lift Fuel Pumps: 1 x brushed fuel pump
• Number of High-Pressure Pumps: 2 x brushed fuel pumps
• Fuel Compatibility: Gasoline, Methanol, Ethanol, E85
• Additional Venturi Lift Kit Compatibility: NO
• Internal Surge Tank Volume: Approximately 2 liters (0.53 gallons)
• Outlet Port Thread: AN-10 ORB
• Return Port Thread: AN-8 ORB
• Vent Valve Thread: AN-8 (3/4 UNF)
• Vent Valve Fitting Included: AN-8 (3/4 UNF) to AN-6 Male
• For Motorsports Use: YES

Installation Notes

• No modification is needed prior to installation, simplifying the setup process.

The Nuke Performance CFC Unit (Part #150-05-203) is a robust solution for those looking to optimize their fuel delivery system in competitive environments. With its thoughtful design and quality construction, it stands out as a reliable component for any serious motorsport application.
