Nuke Performance 150-31-505 Remote Quick Lock Filler Cap and Fuel Hose Kit

The Nuke Performance 150-31-505 Remote Quick Lock Filler Cap is engineered for motorsport enthusiasts seeking a reliable and efficient solution for their aftermarket fuel cells. This kit includes a lightweight filler cap and a 50mm (2") anti-static nylon fuel filler hose, designed to simplify the refueling process while ensuring compatibility with various fuel types, including petrol, ethanol, methanol, race fuel, and diesel.

Key Features

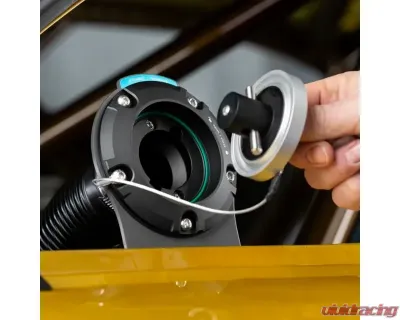

• Quick lock mechanism allows for a secure 90-degree turn to lock and unlock the cap.
• Lightweight design enhances ease of installation and reduces overall weight.
• 5-bolt pattern ensures a firm fit on Nuke Performance CFC Units and aftermarket fuel cells.
• Compatible with standard gas station nozzles and fuel jugs.
• Constructed with Viton seals and gaskets for durability in demanding conditions.

Installation Notes

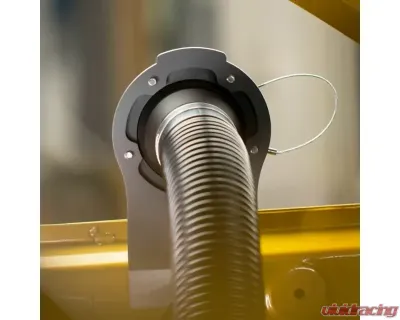

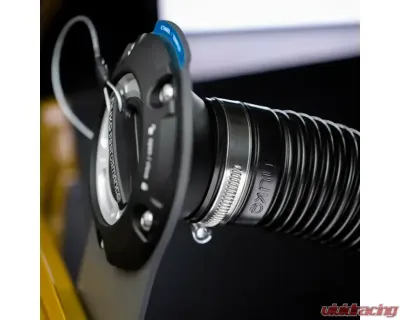

Installation is straightforward thanks to the included mounting accessories. The filler cap is designed to fit directly onto a CFC Unit equipped fuel cell, making it an ideal choice for those looking to streamline their fuel-filling process. The kit includes a safety wire for M6 applications and stainless steel hose clamps to secure the hose connections.

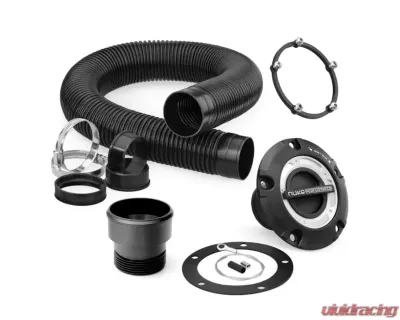

Included Components

• 1 x Filler cap body with barb connection for 50mm (2") hose

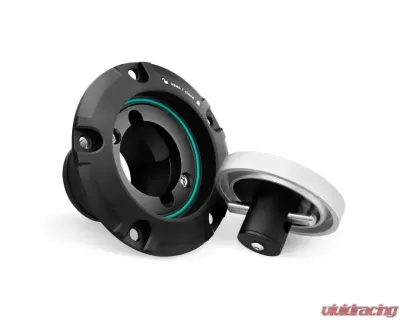

• 1 x Sealed and spring-loaded quick-locking filler cap
• 1 x Safety wire kit for M6 application
• 1 x Viton gasket for fuel compatibility
• 1 x Nylon corrugated fuel filler hose (90cm/3ft)
• 2 x Viton bushings with an internal diameter of 50mm (2")
• 2 x Stainless steel hose clamps
• 1 x POM clamp insert (for hose length adjustments)
• 5 x K6S M6x12 stainless steel bolts
• 1 x Steel bracket or aluminum nut ring

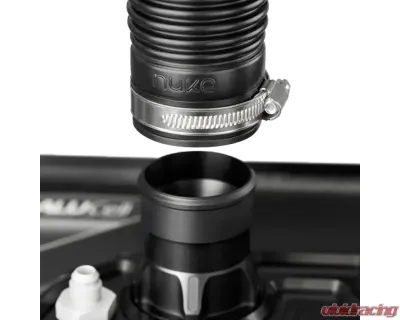

• 1 x Remote mount fill neck for the CFC Unit, compatible with 50mm (2") hose

Specifications

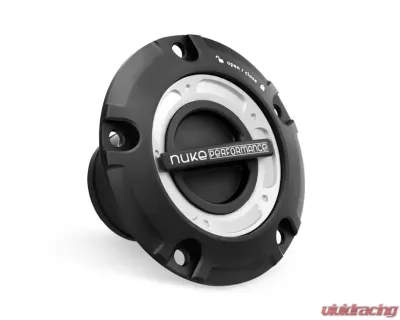

Remote Quick Lock Filler Cap

• Barb connection: 50.0 mm (2.0")
• Barb length: 25 mm (0.98")
• Bolt pattern: PCD 5x60 mm (2.36") / BCD 96 mm (3.77")
• Included gasket: Yes, Viton gasket
• Outer diameter: 110.5 mm (4.35")
• Height over panel: 12.0 mm (0.47")
• Total depth: 64.0 mm (2.51")
• Weight: 366 g (0.80 lb)

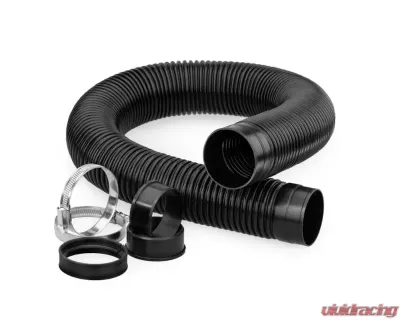

Fuel Filler Hose Kit (90cm / 3 feet)

• Hose internal diameter: 54.0 mm (2.13")
• Bushing internal diameter: 50.0 mm (2.0")
• Hose length (total): 915.5 mm (3 feet)
• Weight (ex. accessories): 213 g (0.47 lb)
• Weight (incl. accessories): 289 g (0.64 lb)
• Hose material: Nylon (anti-static)
• Bushing material: Viton (x2 included)
• Cut to length: Yes

The Nuke Performance 150-31-505 Remote Quick Lock Filler Cap and Fuel Hose Kit is a practical enhancement for any motorsport application, combining convenience with robust construction to meet the demands of high-performance fuel systems.
