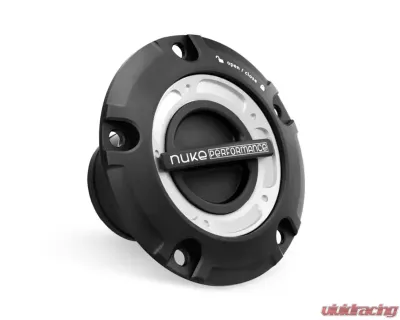

Nuke Performance Remote Quick Lock Filler Cap and Fuel Hose Kit (Part #150-31-501)

The Nuke Performance Remote Quick Lock Filler Cap is engineered for motorsport applications and aftermarket fuel cells, offering a reliable solution for efficient fuel management. This kit includes a 50mm (2") fuel filler hose, designed to meet the rigorous demands of performance enthusiasts.

Key Features

• Quick lock mechanism allows for a secure 90-degree turn to lock and unlock the cap.
• Constructed from lightweight materials, enhancing performance without adding unnecessary weight.
• 5-bolt pattern ensures compatibility with Nuke Performance CFC Units and aftermarket fuel cells.
• Compatible with standard gas station nozzles and fuel jug filler hoses.
• Safe for use with a variety of fuels, including petrol, ethanol, methanol, race fuel, and diesel.
• Viton seals and gaskets provide excellent durability and resistance to harsh fuel types.

Installation Notes

This filler cap is designed for straightforward installation onto CFC Unit equipped fuel cells. The kit includes all necessary mounting accessories, making it accessible for both professional and DIY installations. It is important to ensure that the cap is properly secured to prevent leaks during operation.

Included Components

• 1 x Filler cap body with barb connection for 50mm (2") hose
• 1 x Sealed and spring-loaded quick-locking filler cap
• 1 x Safety wire kit for M6 application
• 1 x Viton gasket, compatible with all fuel types
• 1 x Nylon corrugated fuel filler hose (90cm/3ft)
• 2 x Viton bushings (50mm internal diameter)
• 2 x Stainless steel hose clamps
• 1 x POM clamp insert (for hose length adjustments)
• 5 x K6S M6x12 stainless steel bolts
• 1 x Steel bracket or aluminum nut ring
• 1 x Remote mount fill neck for the CFC Unit, for 50mm (2") hose

Specifications

• Filler Cap:
• Barb connection: 50.0 mm (2.0")
• Barb length: 25 mm (0.98")
• Bolt pattern: PCD 5x60 mm (2.36") / BCD 96 mm (3.77")
• Outer diameter: 110.5 mm (4.35")
• Height over panel: 12.0 mm (0.47")
• Total depth: 64.0 mm (2.51")
• Weight: 366 g (0.80 lb)
• Fuel Filler Hose (90cm):
• Hose internal diameter: 54.0 mm (2.13")
• Bushing internal diameter: 50.0 mm (2.0")
• Hose length (total): 915.5 mm (3 feet)
• Weight (excluding accessories): 213 g (0.47 lb)
• Hose material: Nylon (anti-static)

For those serious about motorsports and performance modifications, the Nuke Performance Remote Quick Lock Filler Cap and Fuel Hose Kit (Part #150-31-501) is a practical addition to your setup, ensuring that you can fuel up quickly and efficiently without compromising on quality or safety.
