Radium Engineering Black 8AN Orb Direct Mount Regulator - 20-1623-00
Radium Engineering Black 8AN Orb Direct Mount Regulator - 20-1623-00 - Image 3 Radium Engineering Black 8AN Orb Direct Mount Regulator - 20-1623-00 - Image 2 Radium Engineering Black 8AN Orb Direct Mount Regulator - 20-1623-00 - Image 3

Radium Engineering Black 8AN Orb Direct Mount Regulator

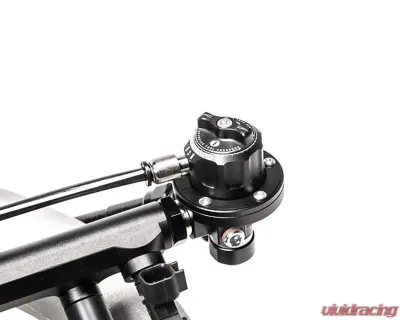

If you're looking for a fuel regulator that combines versatility with compact design, the Radium Engineering Black 8AN Orb Direct Mount Regulator is just what you need. This regulator features a unique mounting system that allows you to easily attach it directly to a compatible fuel rail port using the included 360-degree swiveling adapter. Alternatively, if you prefer to mount it away from the fuel rail, you can do so using the optional 20-0624 adapter. Its compact size means you can fit it into tight spaces without compromising on performance.

Compatibility and Installation

The main inlet port of this regulator is female threaded for 6AN ORB fittings. With the included swiveling double-ended adapter, you can seamlessly connect it to any compatible 8AN ORB fuel rail port, like those found on Radium Engineering fuel rails. If you need to mount the regulator off the rail, you can easily screw in other adapters into the regulator port. The bottom return port is also threaded for 6AN ORB, and the provided 90-degree 6AN male fuel return fitting can swivel 360 degrees, giving you plenty of options for your mounting configuration. If needed, other adapter fittings can be installed in the return port (sold separately).

Pressure Adjustment Made Easy

One of the standout features of the RA-series regulators is the innovative tool-less pressure adjustment. No more fussing with jam nuts or set screws! Simply turn the knob to increase or decrease the pressure. The design includes incremental detents that provide a satisfying tactile feedback, allowing you to make precise adjustments of 1psi (+/-0.5psi) based on your current fuel pressure.

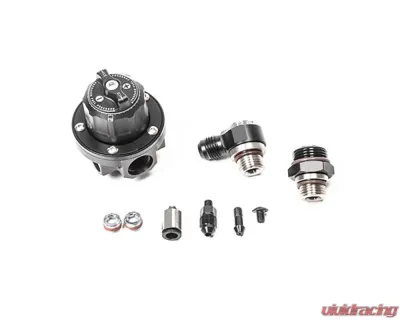

What's Included

  • Main Rotating Assembly
  • 5mm Barbed Vacuum Fitting
  • Vacuum Plug Fitting (Returnless)
  • 1/4" Push-To-Connect Vacuum Fitting
  • 3AN Male Vacuum Fitting
  • 6AN Male Swivel (for Return Line)
  • Swiveling Inlet Fitting (for 8AN ORB Fuel Rail)
  • PTFE Impregnated 1/8" NPT Plugs (x2)

Installation Instructions

  • For detailed installation instructions, CLICK HERE

Important Notes

  • When installing the vacuum fitting, it's a good idea to use a wicking medium-strength threadlocker for a secure fit.
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Radium Engineering Banner

Who is Radium Engineering?

Radium Engineering is a company that was founded in 2010. The company specializes in designing and producing some of the best aftermarket products in the market. They have produced parts used by various racers and motorsport enthusiasts worldwide. Today, they have established a name for themselves and have become a brand synonymous with performance.

Quality in Every Product

All of their products are done in house, from research and development, design and manufacturing. They use the latest computer simulation and modeling tools that allow them to create an accurate and precise model. After all is done, they subject their products to an extensive testing procedure to ensure that it is safe to use and performs the way it is designed to.

Not Your Ordinary Stock Parts

The company focuses on manufacturing race-oriented parts and accessories such as surge tank lines and PCV oil catch can systems. They also offer fuel fittings, fuel manifolds, pumps, and fuel regulators designed for high performance applications. All their parts are made out of high quality materials that can withstand extreme forces.

Purchase Radium Engineering Products At Vivid Racing

If you are in search of a high quality fuel system component for your vehicle, then Radium Engineering is the brand for you. Specifically made for high-performance applications, they are the trusted brand of top racers from different racing disciplines everywhere. To know more about Radium Engineering, visit Vivid Racing and check out their list of products that fit your specific needs.




Warranty

All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase. If a product fails, it will be repaired or replaced at Radium Engineering's option when it has been determined by Radium Engineering to have failed due to defects in materials or workmanship. Warranty claims must be made by the original purchaser. If the purchase was made from a retailer other than radiumauto.com, please contact the place of purchase for further assistance.

This warranty is limited to repair or replacement of the merchandise only and shall not, in no event, exceed the original purchase price. Radium Engineering will not be held responsible for secondary or consequential damages or costs (including labor, towing, etc.) incurred due to failure of this product. Standard ground shipping is used for all warranty transactions. Expedited shipping is available, but the cost difference must be paid by the end user in advance of the shipment.

Warranty claims must ship pre-paid to Radium Engineering for review. Claims must include the failed part(s), RMA number, and original proof of purchase. If the claim is missing any of these items, it may be rejected and returned to sender. Product must be received by Radium Engineering within 14 days of RMA's issue date. Please note that before Radium Engineering can issue an RMA for any product, it is first necessary for the installer or end user to contact info@radiumauto.com to discuss the problem. Most issues can be resolved via email. Under no circumstances should a product be returned or a RMA requested before the above process transpires.

This warranty applies to the original purchaser only and is non-transferable. Improper use, installation, modification, abuse, or unauthorized repairs or alterations voids this warranty. Credit for defective products will be issued pending inspection by Radium Engineering. This warranty does not extend to third party products often used in Radium Engineering products, such as fuel pumps, turbochargers, or any other non-Radium Engineering brand products.
