Radium Engineering CCV Fluid Lock Catch Can Kit for Toyota Tundra (2007-2021)

If you own a 2007-2021 Toyota Tundra equipped with the 3UR-FE engine, you're in for a treat with the Radium Engineering CCV Fluid Lock Catch Can Kit. This kit is designed specifically for your vehicle, ensuring a seamless fit without the hassle of drilling or making any permanent modifications. Just a quick heads-up: if you have a TRD or another aftermarket supercharger installed, be sure to check the images carefully. You’ll want to confirm that the catch can's location isn’t blocked by intercooler plumbing or other supercharger components.

Why You Need an Oil Catch Can

For any performance vehicle, having an oil catch can is a must. It protects your engine from crankcase blow-by that builds up during regular driving. When excess oil-saturated air circulates back into the air intake, it can really hurt your engine's performance. The Radium Engineering catch cans come with large 10AN ORB ports, a 4AN ORB drain port, and a two-step oil separation baffling system, plus an O-ring sealed dipstick for added convenience.

Catch Can Kit Options

Radium Engineering offers two distinct oil catch can kits for the Tundra, which can be purchased individually or together. These kits are designed to be emissions and track legal, as they don’t vent to the atmosphere (VTA). Instead, they operate in a closed-loop system that routes clean, filtered air back into the engine. This not only helps in burning off any unwanted vapors but also promotes negative crankcase pressure for optimal performance, keeping those pesky oil vapors out of your cabin.

About the CCV Catch Can Kit

The 20-0239-FL CCV Catch Can Kit, Fluid Lock, comes with two mounting brackets, one of which will be set aside depending on whether you’re using the PCV kit. The crankcase vent runs inline with the 1/2" valve cover breather port. At low loads, it experiences atmospheric pressure, but when your engine is at high load (WOT), this hose will create a vacuum that could typically draw in unwanted crankcase vapors, unspent fuel, and oil sludge into your air filter intake pipe. If you’ve got a turbocharged or supercharged engine and have noticed oil buildup in your intercooler, this catch can is essential—oil can significantly reduce the thermal efficiency of the heat exchange process.

Key Features

• Boosts octane levels and improves engine performance with cleaner inlet air
• Prevents oil accumulation in the intake, intercooler system walls, throttle body, and intake manifold
• Excessive oil collection may indicate engine damage
• Reduces hydrocarbon emissions
• Capacity: 7 fluid ounces
• Height (without fittings): 5 inches
• Outside Diameter: 2.45 inches

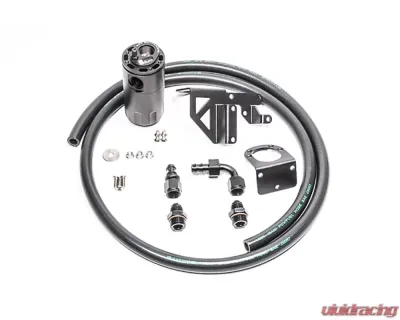

What’s Included in the CCV Kit

• Billet oil catch can with integrated condenser and dipstick
• Tundra-specific laser-cut anodized aluminum mounting bracket
• Additional laser-cut anodized aluminum mounting bracket
• Anodized aluminum 8AN hose ends and adapter fittings
• Plenty of 1/2" PCV rubber hose for custom applications
• Stainless steel mounting hardware

Fitment

• Toyota Tundra 2007-2021
