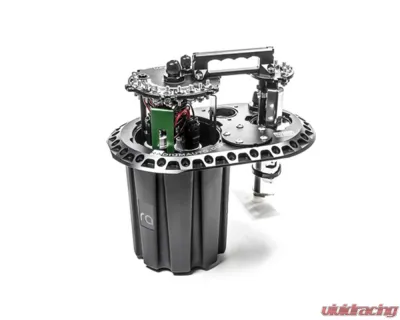

Revamp Your Fuel System with the Radium Engineering FCST-X Brushless Ti Automotive E5LM Fuel Cell Surge Tank
Looking to boost your vehicle's fuel system? The Radium Engineering FCST-X Brushless Ti Automotive E5LM Fuel Cell Surge Tank is here to help! Designed with performance and reliability in mind, this surge tank guarantees consistent fuel delivery, even in the most demanding situations. Just a heads up, pumps are not included.
Key Features
- Single 10AN ORB female threaded outlet that merges seamlessly. All pumps utilize check valves to prevent back-flow.
- One-way fill valves (355LPH each) let fuel in while keeping it securely inside the surge tank.
- Compatible with various fuel pump options, including gerotor, reaction turbine, and brushless DC motor pumps.
- High-current stainless steel electrical studs are hermetically sealed, ensuring they can handle all pump types.
- Simplified servicing means no more fussing with sealing washers and fuel cell retaining brackets.
- Crafted from full CNC aluminum with anodized surfacing for exceptional corrosion resistance.
- Fuel compatibility includes leaded and unleaded gasoline, methanol, ethanol, E85, and more.
- Optional features like a surge tank level switch and a diagnostic LED failsafe port are available.
- Rollover vent valve protection keeps your fuel system safe.
- Quick access to lift and surge pumps with just 9 bolts total.
- Integrated lift handle makes servicing fuel pumps a breeze.
- Lightweight design has increased from 2.2L to 2.6L for improved performance.
- Compatible with up to 4 brushless fuel pumps.
- Supports up to 4 Bosch BR540 fuel pumps (DW400).
- Works with up to 3 Ti Automotive E5LM brushless pumps.
- Compatible with up to 4 brushless Bosch pumps (DW440).
- Designed for compatibility with 16AN inlet mechanical pumps.
- Swappable pump modules make upgrades easy (sold separately).
- Compatible with shrouded level sensors for added convenience.
- Engineered with fewer potential leak points for peace of mind.
- Improved fluid control ensures quick filling.
- Optimized internal fluid management for efficient operation.
- Enhanced rollover protection adds an extra layer of safety.
- Anti-rotation electrical terminals keep everything secure.
Surge Pump Compatibility
- Ti Automotive E5LM (check valves included)
Lift Pump Compatibility
- Ti Automotive E5LM
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- Walbro F90000295
What's Included?
- Anodized aluminum 6x10 plate
- Anodized aluminum surge tank pump hat
- Anodized aluminum lift pump hat
- Anodized aluminum service handle
- Anodized aluminum level sensor plate
- Anodized aluminum surge pump bracket
- Stainless lift pump mounts (shallow and deep)
- Lift pump and surge pump fuel filters
- Anodized aluminum 8AN rollover vent valve
- FKM refueling rollover protection seal
- FKM 6x10 24-hole sealing gasket
- 8AN ORB to 6AN male return fitting
- 10AN ORB to 8AN male pump out fitting
- 2AN ORB fuel level switch plug
- FKM 1-way fill valves (x3)
- Anodized aluminum acorn nuts
- Electrical wire ring terminals
Please Note:
- This FCST-X does not include fuel pumps but can hold up to 2 surge tank pumps and 1 lift pump from the options listed.
- A brushless controller is required for this pump, typically included when purchasing the pump. Check out the Ti Automotive BKS1001.
- For optimal performance, using the Radium Engineering 14-0143 filter sock is recommended for these pumps.
