Radium Engineering Port Injection Kit

If you're looking to take your Ford EcoBoost engine to the next level, the Radium Engineering Port Injection Kit (PIK) is just what you need. This kit is designed to fit seamlessly between the intake manifold and the cylinder head, allowing you to add port injectors for that extra boost of fuel needed for high-horsepower applications. Rest assured, it works alongside your OEM direct injection system—no replacements necessary!

What's Included?

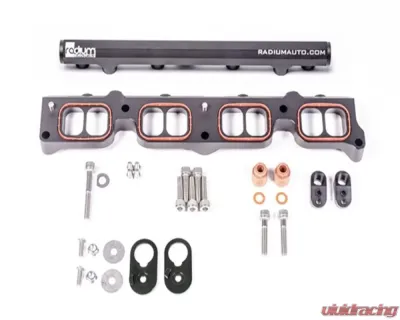

The kit comes complete with everything you need to get started, including:

• PIK adapter plate
• Custom fuel rail
• Fuel rail mounting hardware
• OEM Ford gaskets

Plus, you'll find stainless steel dowels pressed into the adapter plate, making installation a breeze by ensuring perfect alignment.

Compatibility

This kit is versatile and works with all fuel types, including popular alcohol mixtures like E85, giving you the flexibility you need for your performance goals.

Design Features

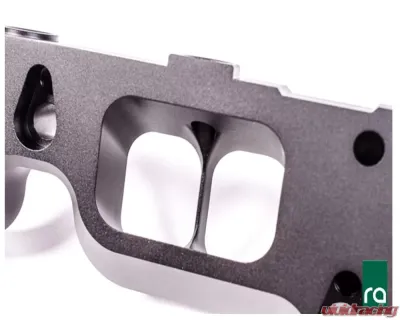

The 6061 CNC machined aluminum adapter is crafted with a smoothed port divider that promotes laminar flow into the combustion chambers. Each injector's spray pattern is evenly distributed into every runner, ensuring efficient fuel delivery.

Air Flow Optimization

The angled air flow passages in the PIK adapter plate are CAD matched to the intake ports and manifold, minimizing any air flow disruption. This thoughtful design means your engine can breathe easier and perform better.

Fuel Rail Details

With a generous 0.69" internal diameter bore, the fuel rail is CNC machined from extruded 6063 aluminum and features a sleek laser-etched finish. Each of the three ports (ends and center) is machined with an 8AN ORB (3/4-16 female) port, allowing for easy connections. For a list of compatible 8AN ORB adapter fittings, check out our resources.

To ensure that fuel created by the cylinder head is isolated from the mounting bolts, machined phenolic mounting spacers and washers are included. The injectors are positioned at the optimal angle for effective spray into the ports.

Stealthy Appearance

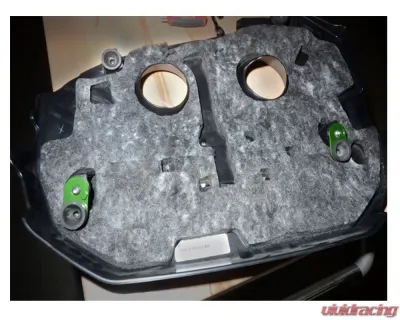

Included in the package are special CNC machined aluminum adapter brackets that relocate the mounting grommets. This clever feature allows you to reuse your OEM Ford Focus Engine Covers, maintaining that stealthy look under the hood.

Important Notes

Note: Please remember that fuel injectors, port fittings, fuel hose, wiring, injector controller, and other components are not included and will need to be sourced separately.

Fitment

This kit is compatible with the following models:

• Ford Focus ST 2013+
• Ford Mustang 2015+
• Ford Focus RS 2016+

Get ready to enhance your driving experience with the Radium Engineering Port Injection Kit—your engine will thank you!
